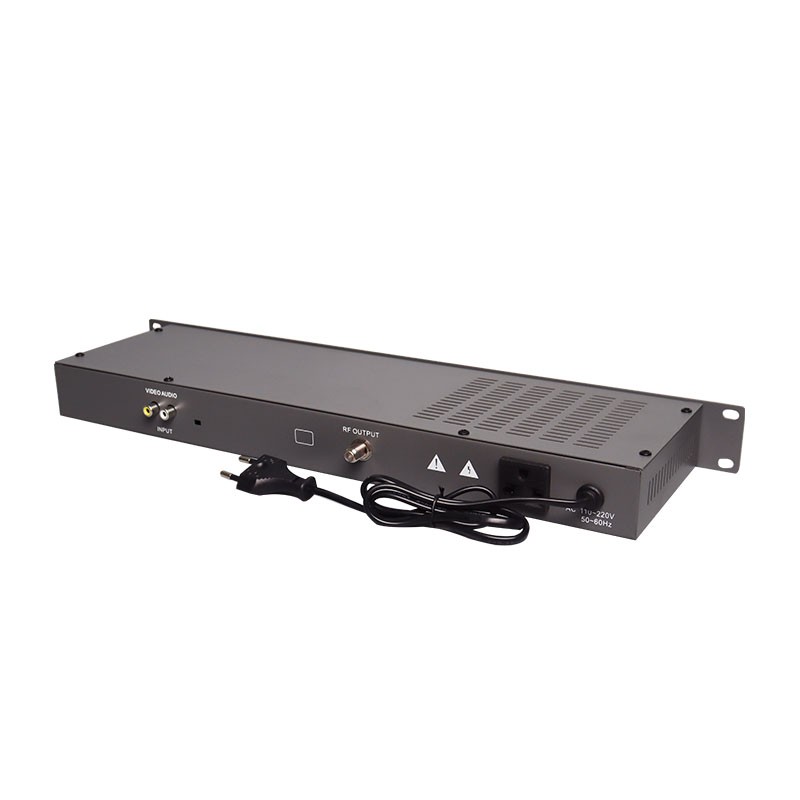

AH-860J Economy Agile Channel Adjacent Frequency Modulator

Send Inquiry

Product Introduction

Product Description

Single channel agile analog modulator is low cost and high stability.

Features of agile analog modulator

1. Intermediate frequency, twice conversion frequency and with saw filter, small disturb side-band.
2. MCU technique is applied to audio intermediate frequency, image high frequency and RF local oscillator, with high frequency stability and accuracy.
3. Integrated circuit is applied to outputs, and each functional circuit of the overall unit adopts SMT technology, with high security.
4. LED display frequency, using up and down button to select any preference frequency.
5. Convenient control, all frequency level adjustments are designed ahead.
6. High dependable and high dynamic powers are applied to part of the source of voltage.
7. We can make different channels according to the customer’s requests.

Parameters

reflection	output frequency range	45-870MHz
	frequency accuracy	± 5kHz
	output level	113dBmV
	side-band suppression	³60dB
	output impedance	75 Ω
	video to audio carrier ratio	-10dB ~ -20dB
video frequency	input level	0.6 ~ 1.5Vp-p
	input impedance	75Ω
	input reflection	30dB min
	K coefficient	4 % max （ 2T pulse ）
	video s/n	50dB
	C/L delay	40nsec
	frequency response	± 1dB
	differential gain	± 4 % （ modulator 87.5 % ）
	differential phase	± 4° （ modulator87.5 % ）
audio frequency	input level	-10 ~ 10 dBm
	input impedance	10KΩ min
	frequency response	± 1dB
	distortion	1 %
	signal to noise radio	-60dB
	audio image interval	according to the style
power supply	voltage	110 ~ 245V AC
