Name: China XPON ONU CATV Manufacturers, Suppliers - Factory Direct Wholesale - Softel
Brand: Softel
SKU: 268056165

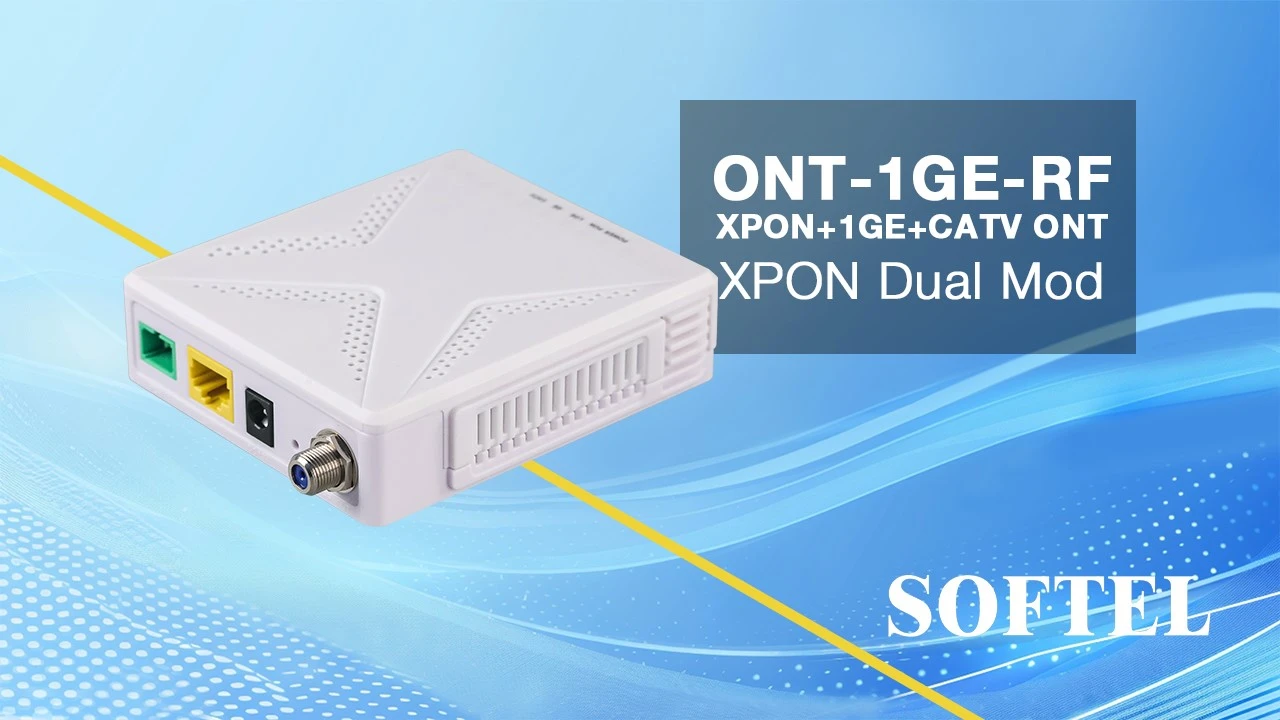

ONT-1GE-RF (XPON 1GE+CATV ONT) is specially designed to meet the FTTO (office), FTTD (desktop), FTTH (home), TV and other needs of telecom operators. The ONT is based on a high-performance chip solution, supports dual-mode (EPON and GPON), and also supports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications.

Send Inquiry

Product Introduction

XPON ONU with CATV

The ONT has high reliability and can be used in wide temperature environments. It also has powerful firewall functions and is easy to manage and maintain. It can provide QoS guarantee for different services. It conforms to international technical standards such as IEEE802.3ah and ITU-T G.984.

ONT-1GE-RF

Features: --------------------------------------

ZTE Chipset

High Performance Solution

XPON Dual Mode

Automatically Access to EPON/GPON

Routing & Bridging Mode

Remote Control

CATV(with AGC) on/off

ont-1ge-rf

Hardware Parameter

Dimension	100mm×92mm×30mm(L×W×H)
Net weight	140g
Operating condition	• Operating temp: 0 ~ +50.C • Operating humidity: 10 ~ 90% (non-condensing)
Storing condition	• Storing temp: -30 ~ +70.C • Storing humidity: 10 ~ 90% (non-condensing)
Power adapter	DC 12V/0.5A, external AC-DC power adaptor
Power supply	≤4.2W
Interfaces	1GE+CATV
Indicators	POWER, LOS, PON, LAN, CATV

Interface Parameter

PON interface

• 1XPON port(EPON PX20+ and GPON Class B+)

• SC single mode, SC/APC connector

• TX optical power: 0～+4dBm

• RX sensitivity: -27dBm

• Overload optical power: -3dBm(EPON) or - 8dBm(GPON)

• Transmission distance: 20KM

• Wavelength: TX 1310nm, RX1490nm, CATV 1550nm

LAN interface

1*GE Auto-negotiation RJ45 ports

CATV interface

V2801D V2:

• RF Optical power : +2～-18dBm

• Optical receiving wavelength: 1550±10nm

• RF frequency range: 47～1000MHz

product-1-1 • RF output impedance: 75Ω ~

• AGC range: 0 -15dBm

• MER: ≥32dB(-14dBm optical input) V2801D V3:

•RF Optical power : 0～-3dBm

•Optical receiving wavelength: 1550±10nm

•RF frequency range: 47～1000MHz •RF output impedance: 75Ω

•RF output level: ≥ 60dBuV(0~-3dBm) •AGC range: not support

•MER: ≥32dB(0~-3dBm optical input)

Function Data

PON mode	XPON Dual Mode
Uplink Mode	Bridging and Routing Mode Well connect with OLTs of mainstream
CATV	Support CATV Rmote management
Standard	• Support CTC OAM 2. 1 and 3.0 • Support ITUT984.x OMCI
Layer2	• 802. 1D&802. 1ad bridging • 802. 1p CoS • 802. 1Q VLAN
Layer3	• IPv4 • DHCP Client/Server • PPPoE, NAT, DMZ, DDNS
Multicast	• IGMP v2/v3, IGMP snooping
Security and Firewall	• Prevent Rogue ONU • DDOS, Filtering Based on ACL/MAC/URL
O&M	Support EMS\WEB\Telnet\CLI and unified network management of SOFTEL OLT

What groups need to use 1GE XPON ONU with CATV but without WiFi?

A 1GE XPON ONU device with CATV but without WiFi is mainly suitable for scenarios where there is a demand for cable TV signals and wired network connections, but no need for wireless networks. This includes traditional cable TV users, hotels and inns, small and medium-sized enterprises, schools and educational institutions, clinics and medical institutions, government agencies, and special industry users. The 1GE XPON ONT is cost-effective and highly stable, making it suitable for large-scale deployment or environments sensitive to wireless signals.
