Outdoor RF Amplifier
Suitably used in bi-directional transmission (can be reserved) and signal equalization of multi-class trunk transmission or high-required distributive network. Adopt PHILIPS, NEC imported power doubler modules. Audio pre-amplifier is low-noise microwave tube push-pull amplifier to insure enough gain. It has 1 input and 2 outputs, and each connection has over-current protection. The output branch or distributiveness can be changed following it. Double-equalizer is used, so adjusting multi-class transmission flatness is simple and convenient. Attenuator and equalizer are plug-in, so customers can choose fixed or adjustable style. High-reliable switch power (or linear power) and strict waterproof and anti-thunder design insure steady durative work.
Key Features of Outdoor RF Amplifier
1. Signal amplification: increase the power of the received RF signal and improve the signal quality.
2. Noise suppression: reduce the noise in the signal and improve the signal-to-noise ratio.
3. Extended Coverage: Extend the coverage of wireless communication systems by enhancing signal strength.
4. Adjustable Gain: Users can adjust the gain of the amplifier according to their actual needs to achieve the best performance.
5. Two-way transmission: It supports the amplification of both uplink and downlink signals, and is suitable for two-way communication systems.
Specifications
|
Item |
Unit |
Technical Parameters |
||
|
Forward Transmission |
||||
|
Frequency Range |
MHz |
47/54/85~862 |
47/54/85~750 |
47/54/85~550 |
|
Rated Gain |
dB |
≥30 |
≥30 |
≥30 |
|
Flatness In Band |
dB |
±0.75 |
||
|
Rated Input Level |
dBμV |
72 |
||
|
Rated Output Level |
dBμV |
102 |
102 |
102 |
|
Gain Adjustable Range |
dB |
Adjustable: 0~15dB, Fixed: 3,6,9, 12, 15 |
||
|
Slope Adjustable Range |
dB |
Adjustable: 0~24dB, Fixed: 6,9, 12, 15, 18 |
||
|
Noise Figure |
dB |
≤12 |
||
|
CTB |
dB |
60 |
||
|
CSO |
dB |
60 |
||
|
Return Loss |
dB |
≥14 |
||
|
Reverse Transmission |
||||
|
Frequency Range |
MHz |
5~30/42/65(or specified by user) |
||
|
Flatness In Band |
dB |
±0.75 |
||
|
Return Loss |
dB |
≥14 |
||
|
Rated Gain |
dB |
0 or 20 selected |
||
|
MAX Output Level |
dBμV |
≥110 |
||
|
Gain Adjustable Range |
dB |
0~15 |
||
|
Slope Adjustable Range |
dB |
0~10 |
||
|
General response |
||||
|
Power Voltage (50Hz) |
V |
A: ~(130-265) V, B:~(30-80)V ,C:~(90-130)V |
||
|
Thunder Stroke |
KV |
5 (10/700μS) |
||
|
Dimension |
mm |
270×215×118 |
||

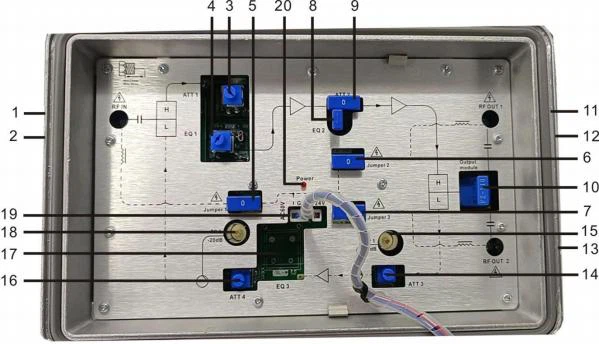

Structure Diagram
Power Source Voltage: ~220V(A), ~60V(B) ~110V(C)
|
1. RF Input |
2. -20dB Input RF Test Port |
3. Forward ATT1 |
|
4. Forward EQ1 |
5. Power Supply Pass Plug-in 1 |
6. Power Supply Pass Plug-in 2 |
|
7. Power Supply Pass Plug-in 3 |
8. EQ2 (-6dB) |
9. Forward ATT Plug-in 2 |
|
10. Output Tap or Splitter (Optional) |
11. RF Output 1 |
12.-30dB Output RF Test Port |
|
13. RF Output 2 |
14. Reverse ATT1 |
15. Reverse RF Test Port 1 |
|
16. Reverse ATT2 |
17. Reverse EQ |
18. Reverse RF Test Port 2 |
|
19. Mainboard Power Supply Input |
20. Power Supply LED |
