RF N Connector

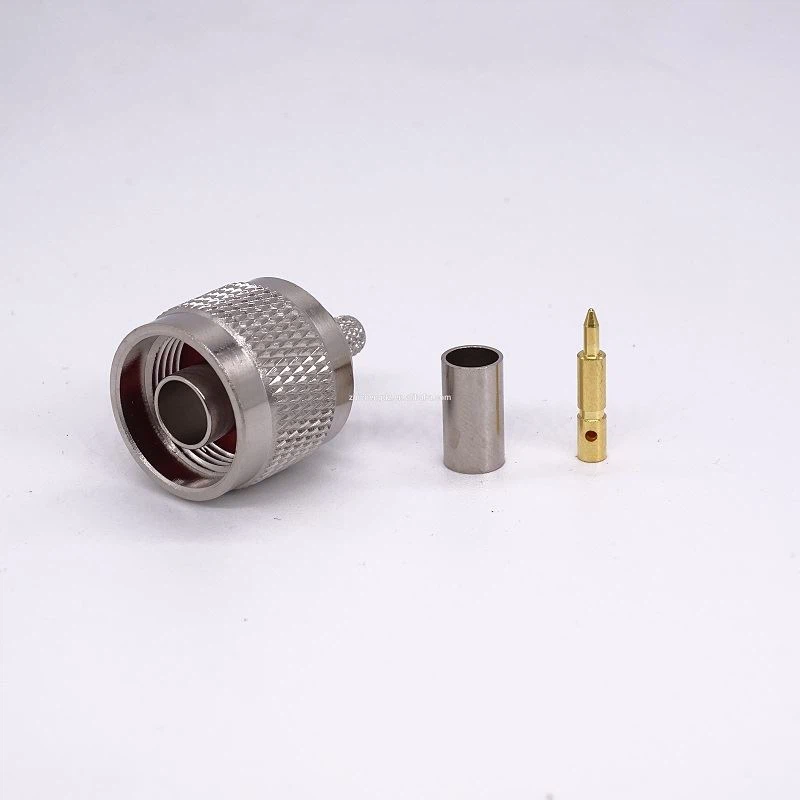

This N male crimp connector is waterproof and air proof.
Send Inquiry
Product Introduction
RF N Connector
Features
1. Low VSWR up to high frequency
2. This RF N Connector is waterproof and air proof.
3. It has competitive price and great quality.
Parameters of RF N Connector
| Electrical Characterisitics | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-11GHz | |
| VSWR | Straight Soft cable ≤1.10+0.002f Semi-steel cable≤1.05+0.001f
Right angle Soft cable ≤1.20+0.003f Semi-steel cable≤1.10+0.001f | |
| Working Vlotage | 1000V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤0.25 mΩ |
| Mechanical Characterisitics | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating Characterisitics | ||
| Parts Name | Material | Plating |
| Body | Brass | |
| Insulator | PTFE | |
| Inner Conductor | Phosphor Bronze | Gold |
| Coupling Nut | Brass | |
| Gasket | Silicone Rubber | |
| Environmental Characterisitics | ||
| Operating Temperature | 45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | Andrew Cable P/N: LDF5-50Aand RFS Cable P/N:LCF78-50A |
