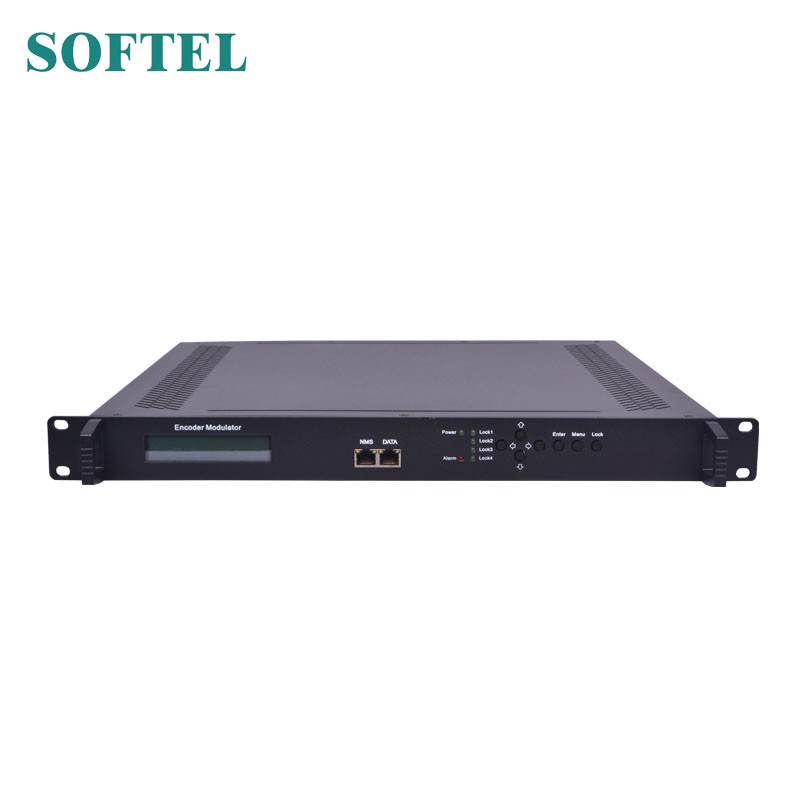

ISDB-T Encoder Modulator

Video (HDMI)

Encoding

MPEG2; MPEG4 AVC/H.264

Interface

HDMI*4

Resolution

1920*1080_60i, 1920*1080_50i,

1280*720_60p, 1280*720_50P

Low Delay

Normal, Mode 1, Mode 2

Aspect Ratio

4:3; 16:9

Audio (HDMI)

Encoding

MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD

AC3(2.0);

DD AC3 (2.0/5.1/7.1) passthrough

Interface

HDMI*4 (SPDIF Not Applicable)

Sample rate

48KHz

Bit rate

64, 96,128, 192, 256, 320kbps

Video (YPbPr)

Encoding

MPEG2; MPEG4 AVC/H.264

Interface

YPbPr*4 (RCA)

Resolution

1920*1080_60i, 1920*1080_50i;

1280*720_60p, 1280*720_50P

Audio (L/R)

Encoding

MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD

AC3(2.0);

DD AC3 (2.0/5.1/7.1) passthrough

Interface

4*Stereo/8*mono

Sample rate

48KHz

Bit rate

64, 96,128, 192, 256, 320kbps

DVB-T Modulator Section(Option)

Standard

EN300744

FFT mode

2K, 8K

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM,

Guard Interva

1/4, 1/8, 1/16, 1/32

FEC

1/2, 2/3, 3/4, 5/6, 7/8

MER

≥42dB

RF frequency

30~960MHz, 1KHz step

RF out

COFDM DVB-T out (2 carriers combined out)

RF output level

-30~ -10dbm (81~97 dbµV), 0.1db step

ISDB-T Modulator Section (Option)

Standard

ARIB STD-B31

Constellation

DQPSK,QPSK, 16QAM, 64QAM

Guard Interval

1/32, 1/16, 1/8, 1/4

Transmission Mode

2K, 4K, 8K

Guard Interval

1/32, 1/16, 1/8, 1/4

Code rate

1/2, 3/4, 5/6, 7/8

RF frequency

30~999MHz, 1KHz step

System

Local interface

LCD + control buttons

Remote management

Web NMS

Language

English

Stream Out

2 ASI mirrored out (BNC type, 100M);

IP (4 SPTS) over UDP, RTP/RTSP out (RJ45,

100M)

NMS interface

RJ45, 100M

General

Power supply

AC 100V~240V

Dimensions

482*400*44mm

Weight

4.5 kg

Operation temperature

0~45℃
