IP TV Encoder

                                                        Multi-channel IP TV encoder

24 channel HDMI input support H264/MPEG-4/H265 encoder(UDP/RTP/RTSP/RTMP/HLS/M3U8/SRT/etc)

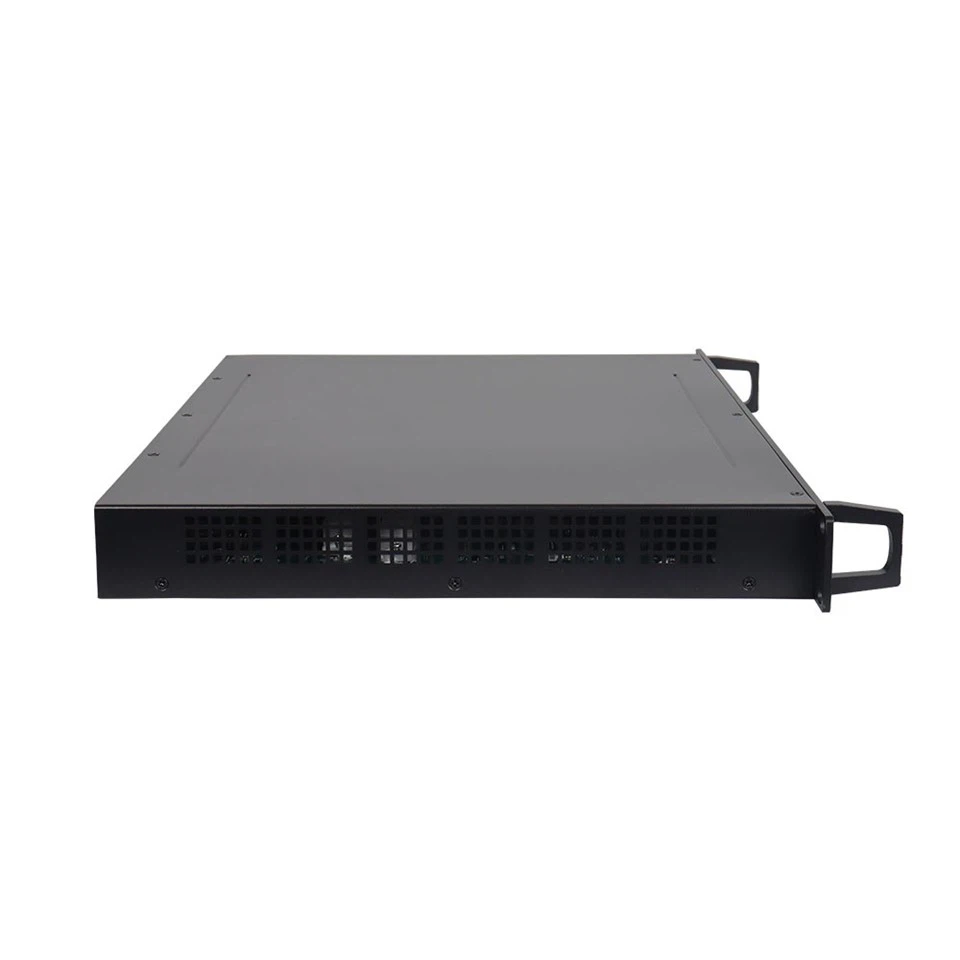

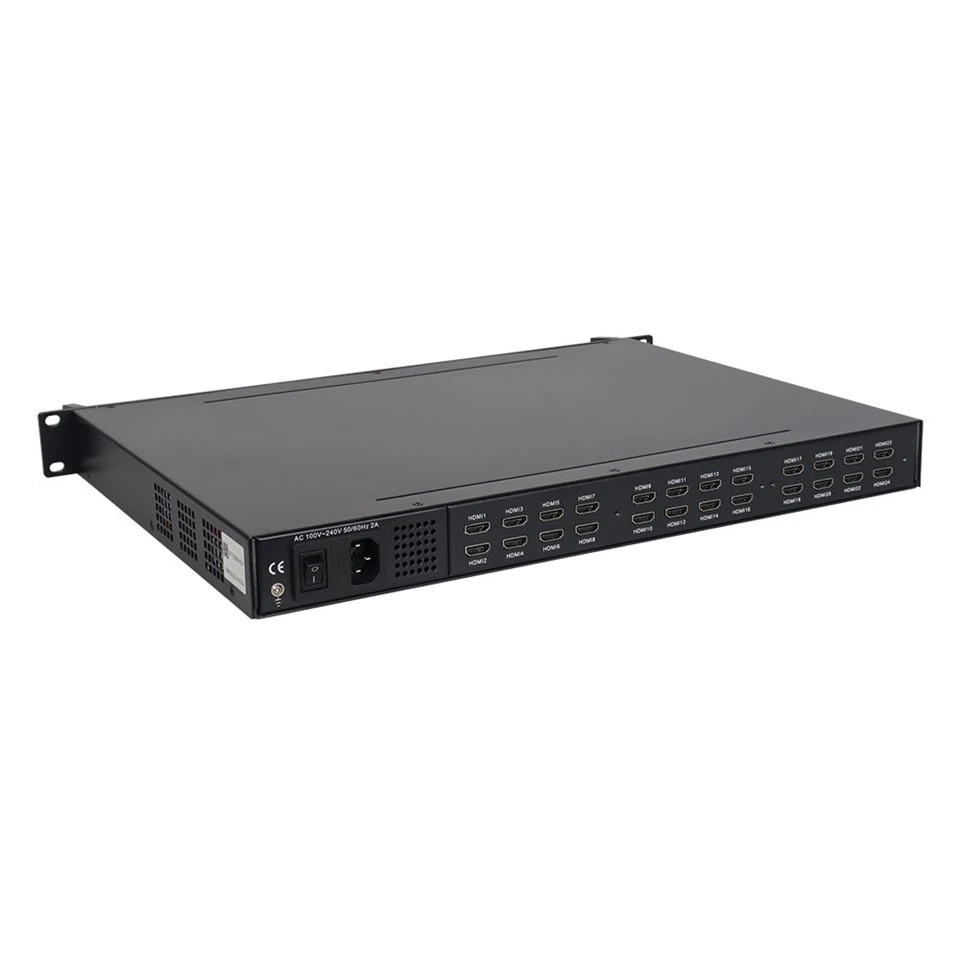

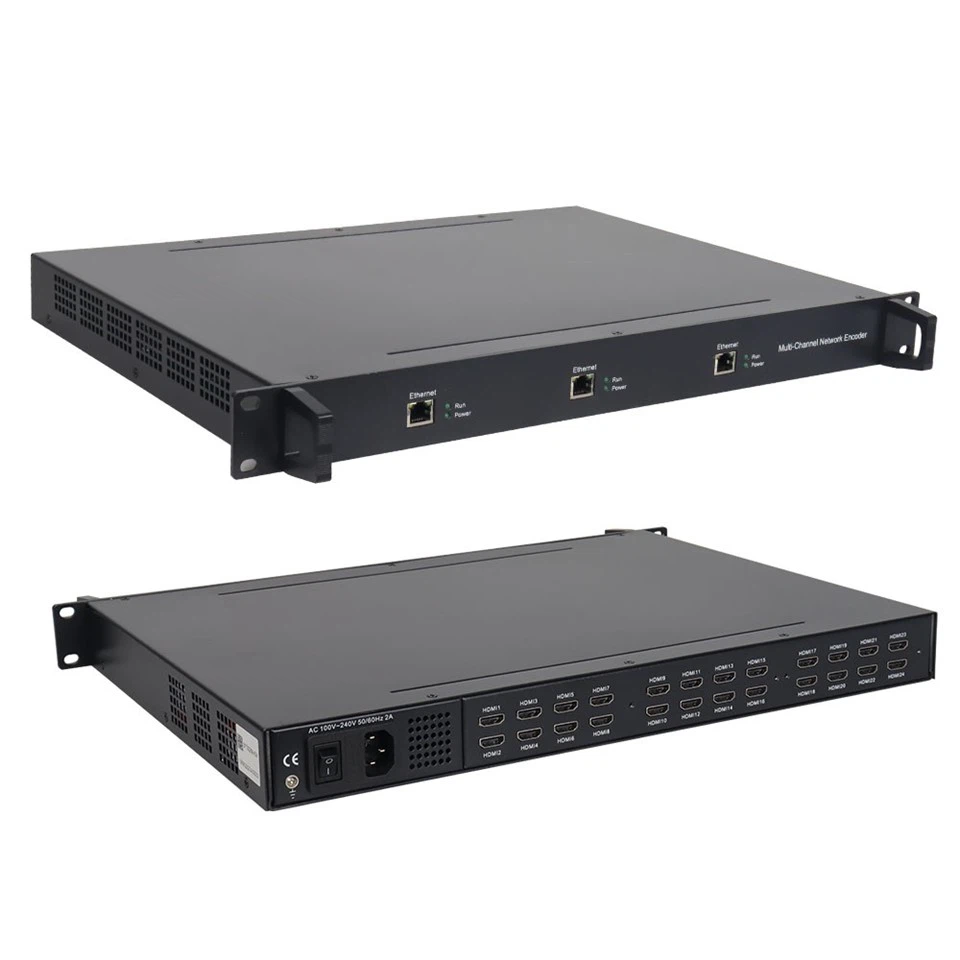

SOFTEL SFT3228M-N network encoder (Network Encoder Processor) is an encoding device for IP broadcasting. It is equipped with 8/16/24 HDMI channels input with H264/MPEG-4 AVC /H265 video encoding and LC-AAC or HE-AAC audio encoding. The signals source could be from STB, PC, TV and etc. It can transfer the live program through the internet/LAN, and gives IP out over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP, HLS, M3U8, and the output signals are to be received by PC, phone and other mobile terminals.SFT3228M-N lets you access your IP STB, PC or TV anywhere to watch your programs.



Key Features

- Support 2/4/8/16/24 HDMI inputs, with2/4/8/16/24 SPTS output (each encoder module, only support STPS, NO MPTS), max 24 HDMI inputs

- MPEG4 AVC/H.264/H265 video encoding format

- MPEG1 Layer II, LC-AAC,HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment

- Support IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP, HLS, M3U8

- Support QR code, LOGO, caption insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو for more languages please consult us…)

- Support "Null PKT Filter" function

- Control via web management, and easy updates via web





Specification

HDMI Encoding Section
Video	Encoding	HEVC/ H.265 , MPEG 4 AVC/H.264
	Interface	2/4/8/16/24 HDMI input
	Resolution	1920*1080_60P, 1920*1080_50P; 1920*1080_59.94P, 1280*720_60p, 1280*720_59.94 1280*720_50P
	Chroma	4:2:0
	Bitrate	1Mbps~15Mbps
	Rate Control	CBR/VBR
	GOP Structure	IP
Audio	Encoding Format	MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2; AC3 Pass-through
	Sample rate	32KHz,44.1KHz,48KHz
	Bit-rate	48~384Kbps
Stream output	IP out over UDP (Unicast/Multicast),SRT, RTP,RTSP, RTMP, HTTP, HLS (RJ45, 1000M ) (8 HDMI inputs with 8 SPTS for each encoder board)
System function	Network management(WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension (W×L×H)	482mm×328mm×44mm
	Environment	0~45℃(work);-20~80℃(Storage)
	Power requirements	AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz





What fields are HDMI multi-channel IP TV encoders used in?

The HDMI multi-channel IP TV encoder is widely used. In the broadcasting field, it helps operators encode multiple HDMI signals such as satellite and cable, and push rich IPTV programs to users via IP networks; in hotel scenarios, it can encode various films, news, service guides, and other HDMI signals for playback on guest room TV systems, enhancing the guest experience; within companies, it can be used for live streaming meetings and real-time encoding and distribution of training content, making it convenient for employees to watch via the internal IP network; additionally, in educational institutions, it can encode teaching content from multiple classrooms through HDMI input, facilitating the sharing of IPTV teaching resources across classrooms and campuses.
