IP to DVB-T Digital Modulator

Name: IP to DVB-T Digital Modulator
Brand: Softel
SKU: 93148520

It has 8 multiplexing channels and 8 DVB-T modulating channels, and supports maximum 256 IP input through the GE port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface.

Send Inquiry

Product Introduction

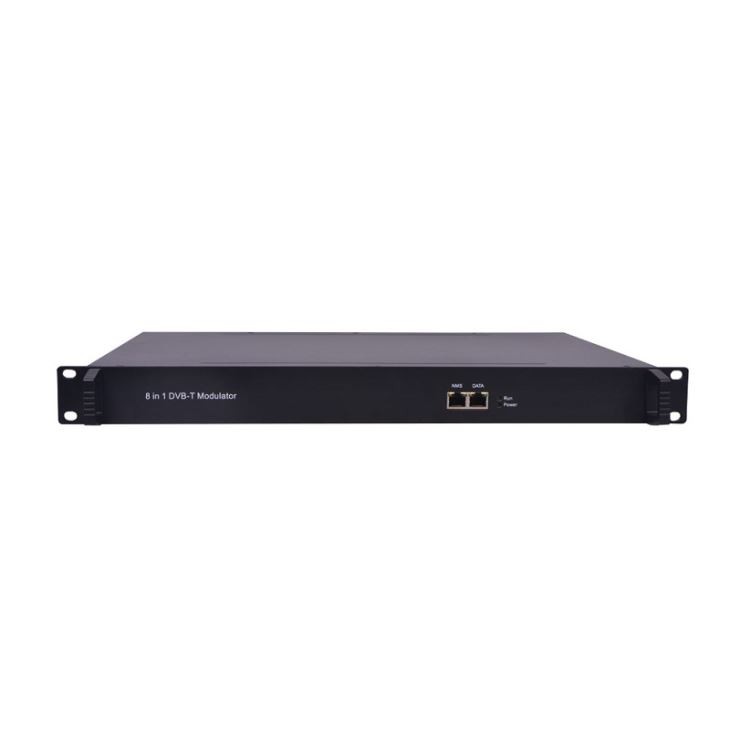

IP to DVB-T digital modulator SFT3308T is an all-in-one device developed by SOFTEL. It has 8 multiplexing channels and 8 DVB-T modulating channels, and supports maximum 256 IP input through the GE port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost.

IP To DVB-T Digital Modulator

Features of IP To DVB-T Digital Modulator

3 GE ports (max 256 IP in):

Data1 & Data2 bi-directional ports, max 256 IP in, 8 IP out

Data port (located on front panel), max 128 IP in

Max 840Mbps for each input

Supports accurate PCR adjusting

Supports PID remapping and PSI/SI editing

Supports up to 180 PIDs remapping per channel

Support 8 multiplexed TS over UDP/RTP/RTSP output

8 DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard

Supports RS (204,188) encoding

Support Web-based Network management

Specifications

Input	Input	Max 256 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFPinterface optional). Each Data1 or Data 2 port can input max 256 IP, while front-panel Data port can input max 128 IP
	Transport Protocol	TS over UDP/RTP, unicast and multicast, IGMP V2/V3
	Transmission Rate	Max 840Mbps for each input channel
Mux	Input Channel	256
	Output Channel	8
	Max PIDs	180 per channel
	Functions	PID remapping(auto/manually optional)
		PCR accurate adjusting
		PSI/SI table automatically generating
Modulation Parameters	Channel	8
	Modulation Standard	ETSI EN300 744
	Constellation	QPSK/16QAM/64QAM
	Bandwidth	6/7/8 MHz
	Trans mode	2K/4K/8K
	FEC	1/2, 2/3, 3/4, 5/6, 7/8
RF Output	Interface	F typed output port for 8 non-adjacent carriers
	RF Range	50~960MHz, 1kHz stepping
	Output Level	-20~+10dbm (for all carriers), 0.5db stepping
	MER	≥ 40dB
	ACL	-55 dBc
TS output	8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports
System	Web-based Network management
General	Demission	420mm×440mm×44.5mm (WxLxH)
	Temperature	0~45ºC(operation), -20~80ºC(storage)
	Power Supply	AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Package
