8HDMI to ISDBT Modulator

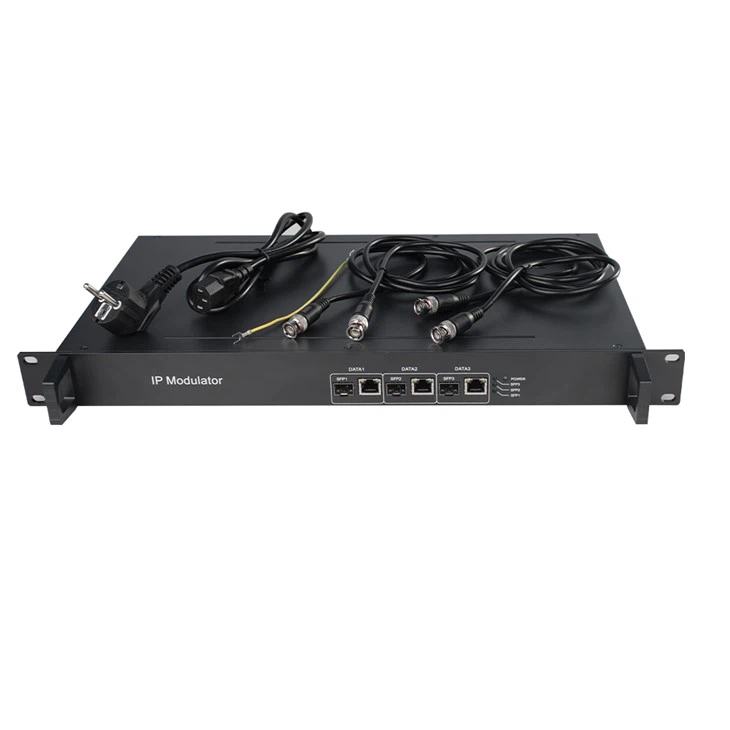

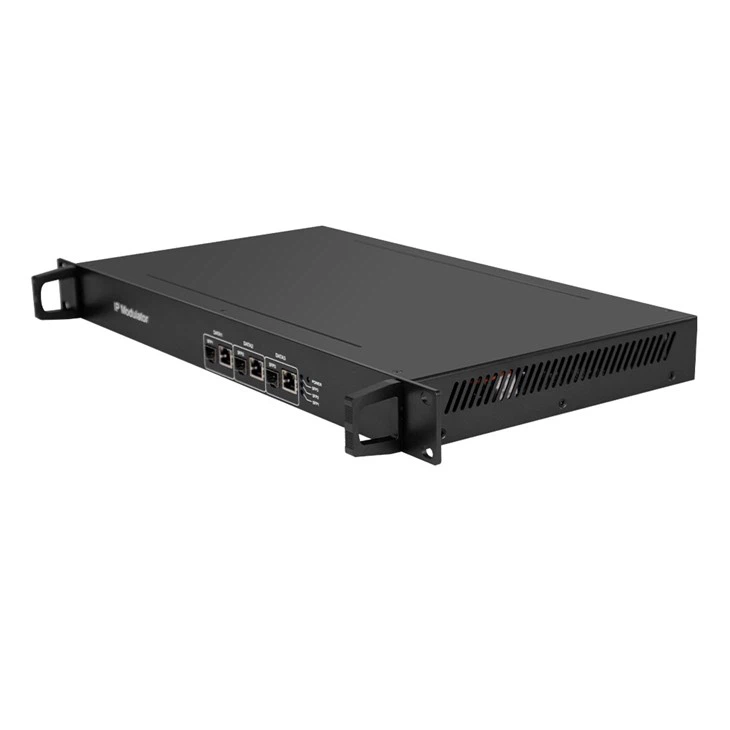

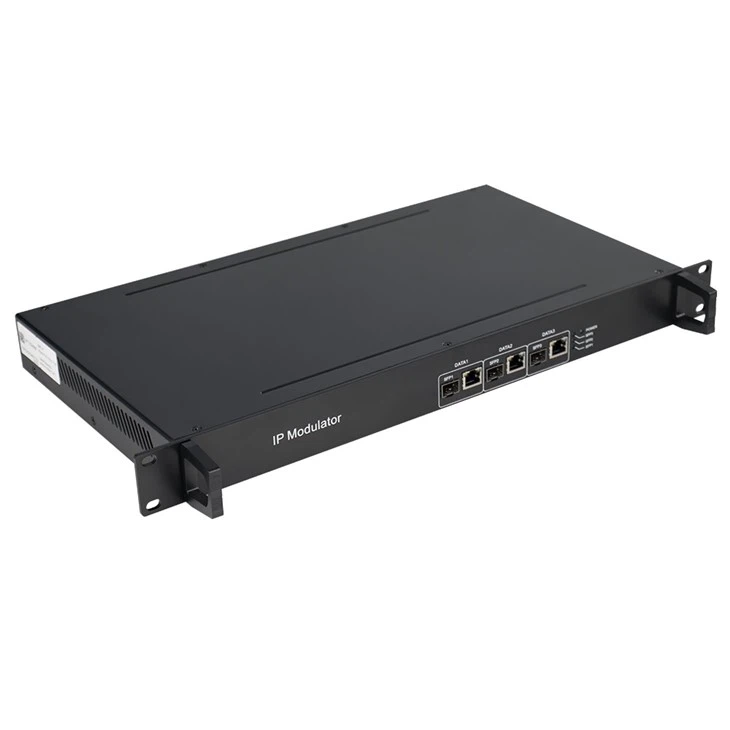

SFT3344M 28 in 1 ISDB-T & 32 in 1 DVB-T & 48 in 1 DVB-C is the latest generational Mux-modulating device developed by SOFTEL. It supports maximum 128 IP input through the 3 GE/SFP port and 2 GE ports, 32 IP input through the 10 FE port, and also has 2 ASI input. After 28&32&48 multiplexing, it gives 28 ISDB-T & 32 DVB-T & 48 DVB-C non-adjacent carriers (50MHz~960MHz), 28&32&48 IP (MPTS) output as mirror of carriers. The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key Features
*3 RJ45 /SFP GE ports (each port max 128 IP in): Data1&2&3 ports only for input
*2GE ports (each port max 128 IP in): Data4 is input ports Data5 is bi-directional ports, 28&32&48 IP out (as mirror of 28 ISDB-T&32 DVB-T &48 DVB-C out version)
*10 FE ports (each port max 32 IP in): Date1-Date10 all for input
*ISDB-T/DVB-T /DVB-C RF in one device, Modulation dynamic switching(only two modulation options can be chosen in on device)
*Supports accurate PCR adjusting
*Max 840Mbps for each input(
*Supports PID remapping and PSI/SI editing , PIDs remapping per channel
*Supports up to 256
*Supports 2ASI input
*Support 1 USB Player (Insert the USB Flash drive with "xxx.ts" videos in SFT3536S and play back the content in an easy way; file system FAT 32) *Support 28 &32 &48 multiplexed TS over UDP/RTP output
*28 ISDB-T /32 DVB-T /48 DVB-C non-adjacent carriers output, compliant to ARIB STD-B31 standard/ ETSI EN300 744 standard/ DVB-C (EN 300 429) and ITU-T J.83 A/B/C
*Support Web-based Network management
Technique Parameter
| Input | Input | 28 ISDB-T &32 DVB-T & 48 DVB-C carriers: Max 128 IP input through Date1-Date5, 100/1000M Ethernet Port (Date1-Date3 are SFP interface optional). Each Data port can input max 128 IP. Max 32 IP input through Date1-Date10 (FE port, Rear panel), 100M Ethernet Port, Each Data port can input max 32 IP. |
|
| 2ASI input, BNC interface | |||
| 1 USB Player input for re-mux ("xxx.ts" video) | |||
| Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 | ||
| Transmission Rate | Max 840Mbps for each input channel | ||
| Mux | Input Channel | 128(or 32) | |
| Output Channel | 28(ISDB-T) or 32 (DVB-T)or 48(DVB-C) | ||
| Max PIDs | 256 per channel | ||
| Functions | PID remapping(auto/manually optional) | ||
| PCR accurate adjusting | |||
| PSI/SI table automatically generating | |||
| Modulation Parameters (ISDB-T) |
Channel | 16/20/24/28(License gradable) | |
| Modulation Standard | ARIB STD-B31 | ||
| Constellation | QPSK, 16QAM, 64QAM | ||
| Bandwidth | 6MHz | ||
| Transmission Mode | 2K/4K/8K | ||
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| RF Output (ISDB-T) | Interface | F typed output port for 28 non-adjacent carriers | |
| RF Range | 50~960MHz, 1kHz stepping | ||
| Output Level | -20dBm~1dBm(87~108dbµV), 0.1dB stepping | ||
| MER | ≥ 40dB | ||
| ACL | -50 dBc | ||
| Modulation Parameters (DVB-T) |
Channel | 16/20/24/28/32(License gradable) | |
| Modulation Standard | ETSI EN300 744 | ||
| Constellation | QPSK/16QAM/64QAM | ||
| Bandwidth | 6/7/8 MHz | ||
| Transmission Mode | 2K/4K/8K | ||
| Code rate | 1/2,2/3,3/4,5/6,7/8 | ||
| RF Output (DVB-T) | Interface | F typed output port for 32 non-adjacent carriers | |
| RF Range | 50~960MHz, 1kHz stepping | ||
| Output Level | -20dBm~0dBm(87~107dbµV), 0.1dB stepping | ||
| MER | ≥ 40dB | ||
| ACL | -55 dBc | ||
| Modulation Parameters (DVB-C) |
Constellation | J.83A | Constellation :16/32/64/128/256QAM |
| Bandwidth :8M | |||
| J.83B/C | Constellation :64/256QAM | ||
| Bandwidth :6M | |||
| QAM Channel | 32/36/40/44/48(License gradable) | ||
| Symbol Rate | 5.0~7.0Msps, 1ksps stepping. 5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM) | ||
| Constellation | 16, 32, 64 , 128, 256QAM | ||
| RF Output (DVB-C) | Interface | F typed output port for 48 non-adjacent carriers | |
| RF Range | 50~960MHz, 1kHz stepping | ||
| Output Level | -20dBm~-3dBm(87~104dbµV), 0.1dB stepping | ||
| MER | ≥ 40dB | ||
| ACL | 50~960MHz, 1kHz stepping | ||
| TS output | 28&32&48 IP output over UDP/RTP, unicast/multicast, Data1 100/1000M Ethernet Ports | ||
| System | Web-based Network management | ||
| General | Demission | 420mm×440mm×44.5mm (WxLxH) | |
| Temperature | 0~45ºC(operation), -20~80ºC(storage) | ||
| Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz | ||
Order Guide
| Modulation combination | DVB-C/DVB-T | DVB-C/ISDB-T | DVB-T/ISDB-T |
| Carrier support (Increase every four carriers) | 32~48/16~32 | 32~48/16~28 | 16~32/16~28 |
| Modulation | Carrier number(Increase every four carriers by license) | ||||
| DVB-C | 32 | 36 | 40 | 44 | 48 |
| DVB-T | 16 | 20 | 24 | 28 | 32 |
| ISDB-T | 16 | 20 | 24 | 28 | / |
| Note: | Different combination of carrier number can be selected, Need to be confirmed before an order | ||||
Shipping
1, Fedex/DHL/UPS/TNT for samples, door to door.
2, By air or by sea for bulk goods, for FCL; Air port/port receiving
3, Customers specifying freight forwarders or negotiable shipping method
4, Delivery time: 1-3 days for samples; 10-30 day for bulk goods
FAQ
1. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
2. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
3. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
