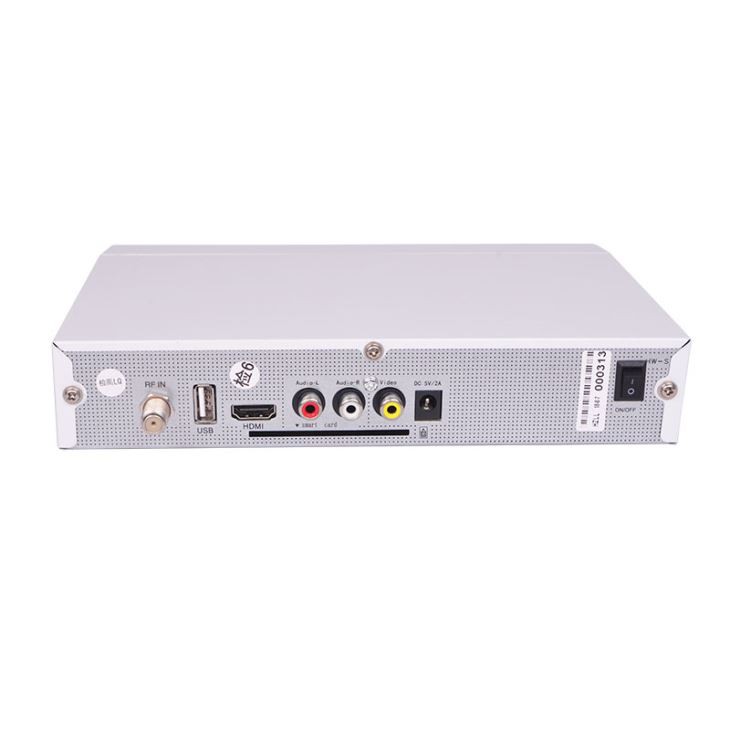

HD TV Set Top Box

HD TV Set Top Box

Features

 DVB-C HD TV set top box compliant with MPEG2 and MPEG4 H.264 and AVS+

Compatible with HDTV channels and equipped with HDMI connector

EPG & DVB Teletext & DVB Subtitles

Auto search & Blind search & network search function

Support Media Player

Support Dexin CAS

Technical Specifications of HD TV Set Top Box

Core System

●Processor : M88CC6000 (#1 CPU: MIPS 24KEf TM and

                                          #2 CPU: MIPS 24KEcTM)

●Broadcast tuners:  1 DVB-C

●Memory:  8MB Flash;  128MB RAM DDR3

●STB upgrade: Through OTA or USB Disk

 Connectivity

●Video: HDMI v1.4   ● RCA out (CVBS, Audio L/R)    ●USB: 1xUSB2.0 host device

Tuner & Demodulator

●Input Frequency: 110MHz-860MHz

●Demodulator:    256,128,64,32 and 16QAM; demodulation supported

●Symbol rates:    0.45~8.5MBauds

 Front panel

●Display:  3 LED Indicator;  Power Red LED;  Lock Green LED

●Button:  Standby, VOL+, VOL-,  CH+, CH-, Menu, OK

Video Decoding

●H.264 BP (with no ASO/FMO), MP& HP@L3/L4.1

●MPEG-2 MP@ML/HL

●AVS Jizhun profile@L6.0/L4.0

●AVS Broadcast profile@L6.0/L4.0

●MPEG-4 SP Profile, Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible VLC        ●Xvid 1.3.2 without GMC and DivX without GMC

●H.263 baseline profile

Setup environment

●Function temperature:0-40 degree Celsius    ●Power consumption: Max 10W

●Voltage:90V~250V AC (50/60Hz)

 Proposed Accessories

●Remote control unit   ●RCA Connect Cable

●HDMI Cable                ●2*7# Batteries

Audio Decoding

●MPEG-1/2 Layer I/II/III

●MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4

●Dolby AC3/AC3+ (for M88CC6000-1MD only)

●DRA 2 CH/5.1 CH

Dimensions

●W x H x D(mm):240*165*40                      ●Weight(kg):1.0

 ●Packaging dimension(mm):275*255*48  ●Weight include packaging(kg):1.1
