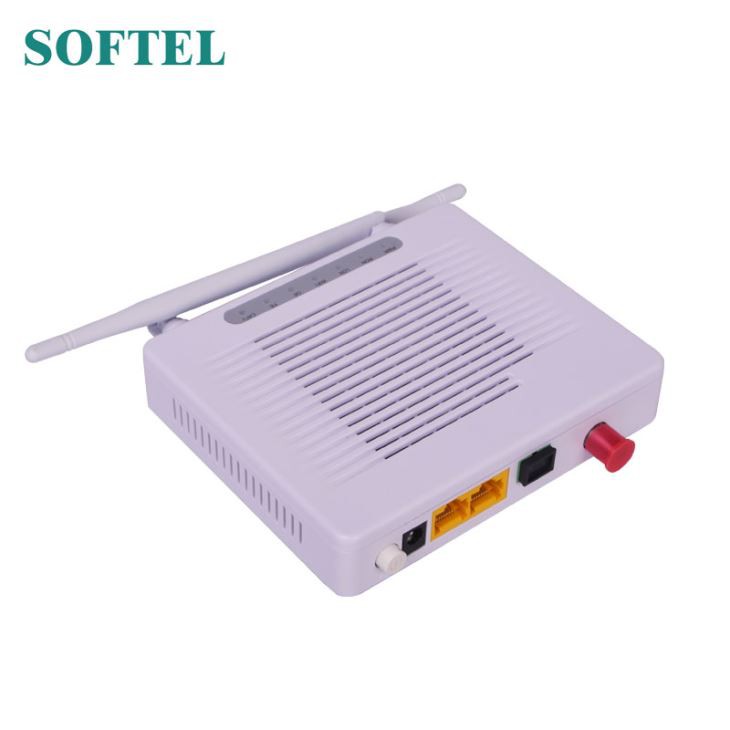

EPON ONU 1GE 1FE Wifi CATV
This Epon onu 1ge 1fe wifi catv is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees.Dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON. It can also be applied to a wide temperature environment, and also has a firewall function.
ONU-2GF-RFW is a 1GE+1FE+WIFI+CATV XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators.
Features
HGU ONU, bridging and routing modes can be set
Dual mode ONU compatible with popular EPON and EPON OLT
Support loop detection, IGMP, IGMP snooping
802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Support port speed, support for storm suppression
Support 802.11n 2T2R speed up to 300Mbps
Support No-auth, WEP, WPA-PSK and WPA2-PSK
Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)
It supports Telnet, CLI, OMCI/OAM and Web management.
It supports NAT, Firewall function.
It supports remote software upgrade.
Technical parameters of Epon Onu 1ge 1fe Wifi Catv
Items | Unit | |
PON standard. | EPON IEEE802.3ah, GPON ITU-T G.984.x | |
Optical interface | SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0～+4dBm Transmission distance: 20KM | |
Speed | Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
Wavelength | nm | Tx1310, Rx 1490, CATV 1550 |
Interface | data | 1FE 10/100Mbps |
Wireless | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna | |
Indicator | LED | PWR, PON, LOS, WiFi, GE, FE, CATV |
CATV
Items | Unit | Specifications |
Optical Connector Type | SC/APC | |
Input optical power range | dBm | -18~ +2 |
Optical return loss | dB | ≥45 |
Wavelength | nm | 1550 ±10 |
RF Output Connector | F | Imperial or metric |
RF Bandwidth | MHz | 47～1000 |
Slope | dB | 0~2 (47～1003MHz) |
RF impedance | Ω | 75 |
RF output return loss | dB | ≥14 dB |
RF output lever | dBuV | 82（@-7dBm）, 75（@-15dBm） |
AGC Range | dBm | -15~-7 /-12~ -4 /-10~-2 |
C/N | dB | ≥47 @-7dBm |
CTB | dB | ≥60 @-7dBm |
CSO | dB | ≥60 @-7dBm |
MER | dB | ≥35 |
Why choose us?
1. Established in 2005.
Located in Hangzhou Hi-Tech Development Zone, established in 2005, Softel has been working on the Telecommunication Industry over 15 Years.
2. Cable TV, IPTV, and FTTH Solution Provider.
Taking advantage of the combination with the modern broadcast and optic fiber communication technology, Softel is specializing in providing hundreds of customers over the world.
3 World Famous Brand
We are serving more agents, cable operators, telecommunication operators, Internet service provider and distributors all over the world. Most of our products are exported to South America, Southern-East Asia, Europe, and North Africa.
4.Manufacture & Quality Test
Been cooperating with the manufacturers of HFC broadband optic transmission equipment over the years, we have more than 60 staff, in which there’re adequate senior technicians and have great and technical R&D capability in this field. With more than 1,000 square meters of production assembling lines, we are capable of providing more high-standard products in less time.
It is worth mentioning thatour strict 3-layer QC procedure ensures each product is under the material check before production, stability and performance test after production, and the packing verification before delivery.
