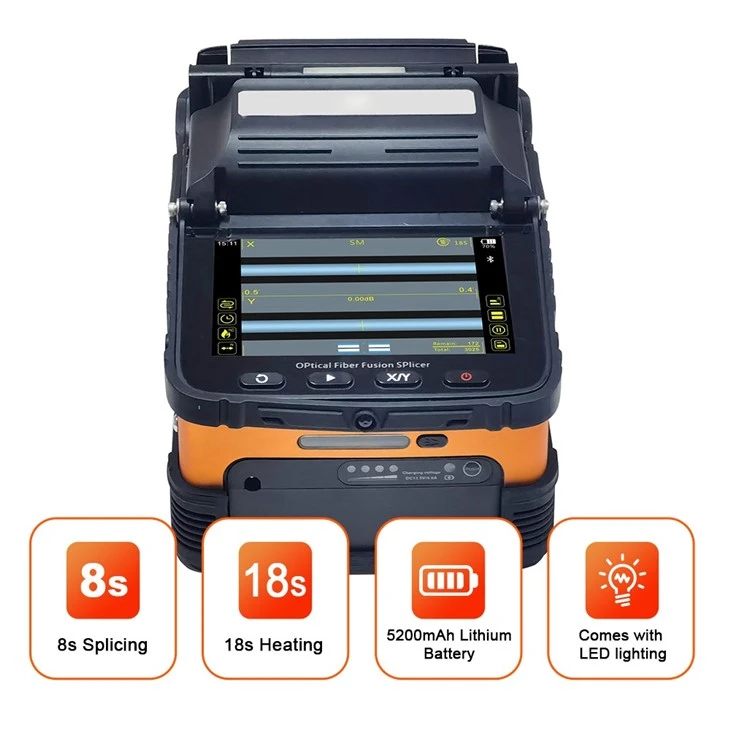

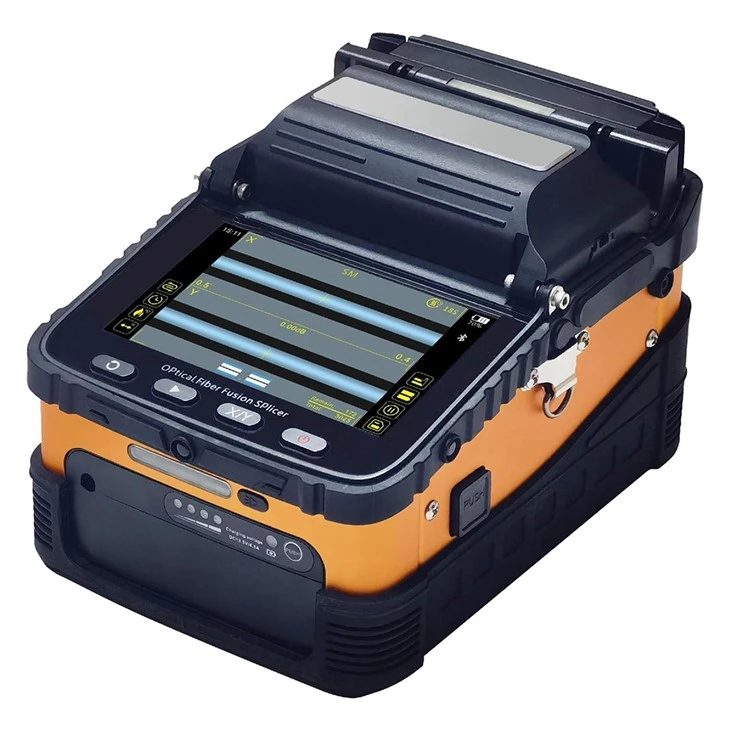

Fiber Splicing Machine

Fiber alignment

Core/cladding

Motor number

4 motors

Splicing time

8s

Heating mode

18s, can be customized according to the external environment

Fiber type

Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible optical fiber.

The cladding diameter

80-150μm

Splicing loss

0.02dB(SM),0.01dB(MM)0.04dB(DS/NZDS)

Splicing mode

Automatic focusing core alignment, conventional/high precision splicing

Splicing way

Automatic, semi-automatic,manually

Fiber cleaver

Equipped with electric high-precision cleaver

Fiber holder

Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable

Battery capacity

5200mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 160 cores

Magnification

320x (X or Y axis single display) ,160x (x and Y axis dual display)

Fiber diameter

Coating diameter: 80-150μm/Coating diameter: 100-1000μm

Cutting length

Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm

Heat shrink tube

60mm,50mm,40mm,25mm

Tensile testing

standard 2N

display

5 inch TFT color display screen

Boot time

1s, boot can enter the working mode

Data is stored

Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.

Wireless communication

Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m

Software upgrade

Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software

Management function

The equipment owner can be bound as the highest authority, and can remotely view the splicing records, splicing time, loss, etc. through the mobile phone APP. The number of splicing times or working time of the equipment can be set.
The manager can effectively manage a single or multiple equipment.

Return loss

Better than 60 db

Product protection

Waterproof, dustproof and fall proof

Power supply

Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level

The work environment

Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum

wind speed: ≤15m/s
