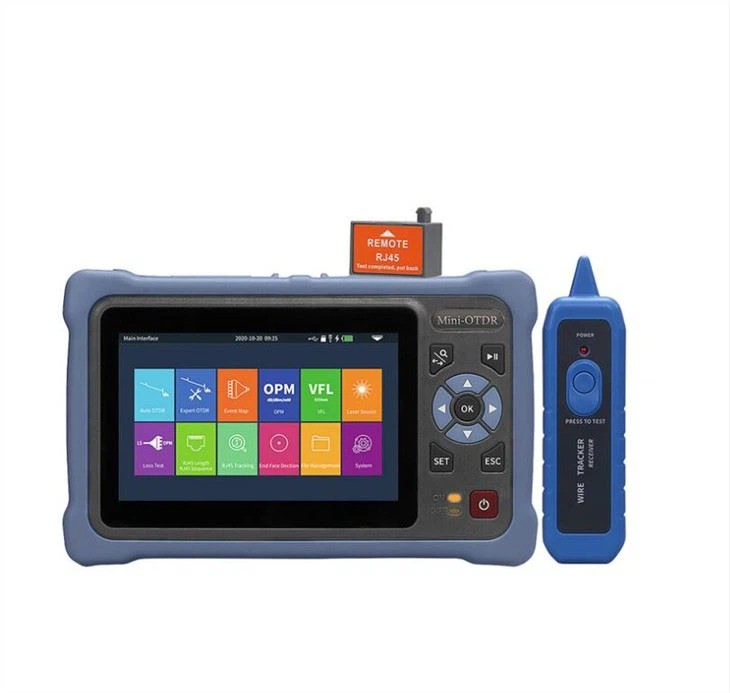

1310 1550 1625nm Mini Smart 60km Pon OTDR Fiber Optic

Send Inquiry

Download

Product Introduction

Production Description

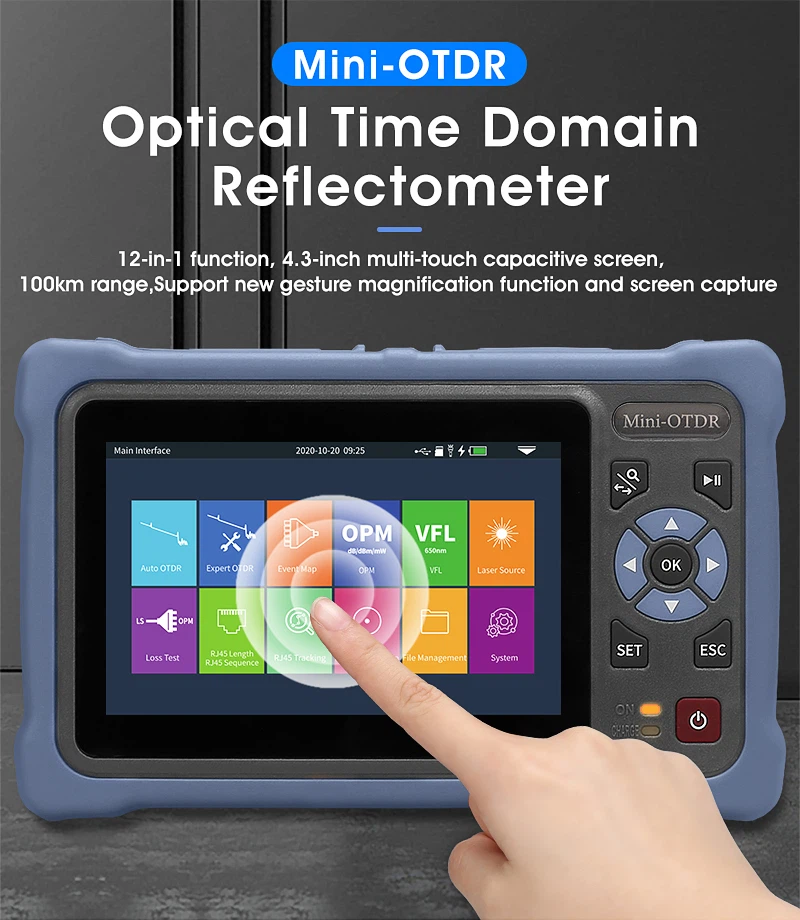

OTDR-4000 Mini OTDR Fiber Optic adopts 4 .3-inch capacitive touch screen . It integrates 12 functions , such as auto OTDR, expert OTDR , event map , OPM , RJ45 cable tracker , and "computer level" file management to meet various test requirements in different occasions . OTDR has a maximum dvnamic range of 26dB , 8G memory , and can store more than 200 , 000 curves ; it is equipped with 4000mah high-density polymer lithium battery , intelligent power saving management , measuring time of more than 8 hours , and supporting power supply and charging of the power bank.

OTDR-4000 series mini otdr fiber optic are used to measure the length , loss, connection quality and other parameters of optical fiber . It is widely used in FTTX , secondary backbone network engineerng construction , maintenance and emergency repair test , and production measurement of optical fiber and cable.

Features

▲Expert OTDR : Professional measurement ,curve / list / map are displayed simultaneously

▲Auto OTDR : no complex settings ,one key test

▲OPM supports CW / 270 / 330 / 1k / 2KHz frequency identification

▲VFL and LS can run in the background ,multi task can be operated simultaneously

▲LS supports CW / modulation mode output with adjustable output power

▲RJ45 cable tracker of digital radar ,stronger anti-jamming ability

▲Auto OTDR , expert OTDR , event map , OPM , LS ,VFL , RJ45 cable tracker , RJ45 cable sequence ,RJ45 cable length , end face detection , flashlightoptical loss test

▲RJ45 cable sequence /cable length test , up to 300m

▲One click screen capture , easyto save the interface

Parameters
