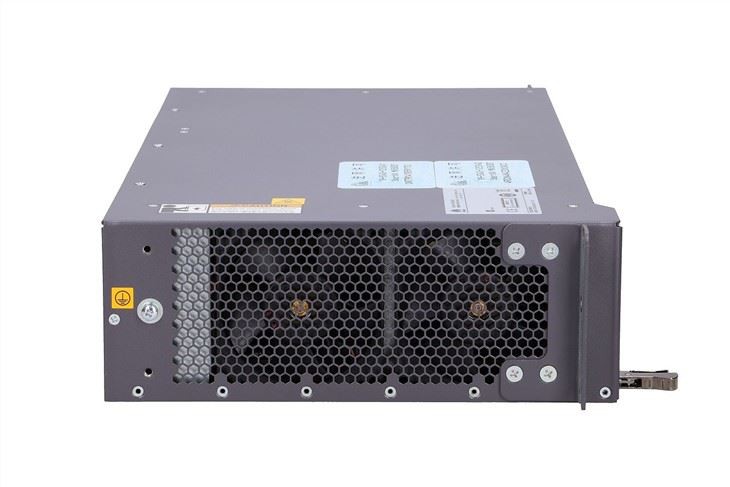

Huawei gpon olt 5608T
Production Introduction
Description
Huawei gpon olt 5608T SmartAX MA5600T Series OLTs combine high-performance aggregation and switching capabilities, providing 3.2 Tbit/s backplane capacity, 960 Gbit/s switching capacity, 512K MAC addresses, and a maximum of 44-channel 10 GE or 768 GE access ports.
Lowers Operations and Maintenance (O&M) costs with software versions for all three models that are fullycompatible with service boards; reduces quantities of stock required for spare parts.
Features
High reliability: OLT two-node cluster hot backup, remote Disaster Recovery (DR), hitless upgrade, Quality Of Service (QoS), and end-to-end (E2E) high reliability design
Multiple methods of access: Includes E1 private line access, native TDM (CESoP/SAToP), E-LAN, and non-convergence IPTV user access
Simple evolution: GPON, 10G PON, and 40G PON share a single platform, enabling smooth evolution and supporting ultra-bandwidth access and IPv4/IPv6 dual-stack
Environmentally friendly and energy-efficient design; idle board are automatically powered off, intelligent fan speed feature further reduces power consumption of idle boards
Specification
| Specifications | MA5600T | MA5603T | MA5608T |
| Dimensions (H x W x D) | 447 mm x 490 mm x 275.8 mm | 263 mm x 442 mm x 283.2 mm | 88 mm x 442 mm x 233.5 mm |
| Operating Environment | –25°C to +55°C | –40°C to +65°C | –40°C to +65°C |
| 5% RH to 95% RH | 5% RH to 95% RH | 5% RH to 95% RH | |
| Power | –48V DC power input | –48V DC power input | –48V DC power input |
| Dual-power supply protection | Dual-power supply protection | Dual-power supply protection | |
| Operating voltage range of –38.4V to –72V | Operating voltage range of –38.4V to –72V | Operating voltage range of –38.4V to –72V | |
| Switching Capacity — Backplane Bus | 3.2 Tbit/s | 1.5 Tbit/s | 720 Gbit/s |
| Switching Capacity — Control Board | 1,920 Gbit/s | 960 Gbit/s | 512 Gbit/s |
| Access Capacity | 64 x 10G GPON | 24 x 10G GPON | 8 x 10G GPON |
| 256 x GPON | 96 x GPON | 32 x GPON | |
| 768 x GE | 288 x GE | 96 x GE | |
| Port Type | Upstream ports: 10 GE optical and GE optical/electrical ports | ||
| Service ports: GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port | |||
| System Performance | Layer 2/Layer 3 line-rate forwarding | ||
| Static route, RIP, OSPF, and MPLS | |||
| Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD | |||
| Maximum split ratio of 1:256 | |||
| Maximum logical distance between devices: 60 km | |||
