OLT-X7 Series

OLT-X7 Series Chassis OLT

Highlights：

Dual-MCU Board

Type B PON Protection

Versatile Slot Configuration Multi business slots

Simple Evolution: GPON to XG(S)- PON

Introduction:

SOFTEL OLT-X7 series are self-developed high-end chassis OLTs,include the two models, which adopt high

performance chipset and complies with ITU-T interational standards.OLT-X7 series provide multiple access methods such as GPONXG-PON, XGS-PON and Combo PON, supports multiple network solutions such as FTTH, FTTB,

FTTC, FTTD and FTTM,realizes high-bandwidth and high-speed data transmission, and meets the needs of large-

scale deployment.The products have comprehensive management and monitoring functions, simplifies the operation and maintenance process, andprovide rich business functions and scalablity. it provides operators with excellent user experience and high-quality services, and alsomeets the challenges faced by operators in the development of "wider, faster and smarter" gigabit uitra-wide networks.

Slots and Cards of OLT-X7 Series:

OLT-X7

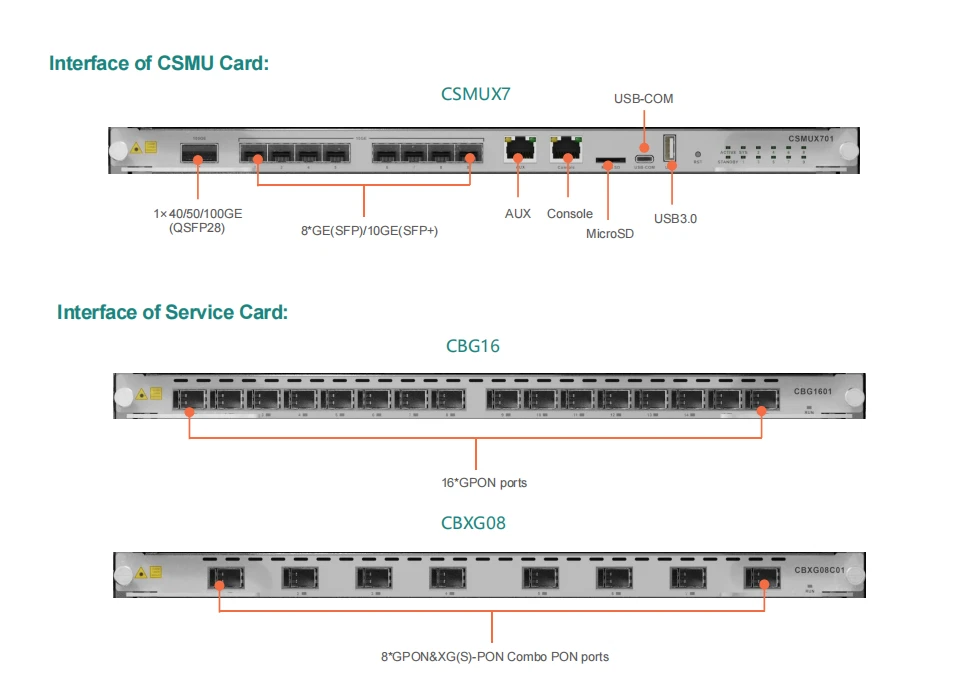

Interface of CSMU Card:

Interface of Service Card:

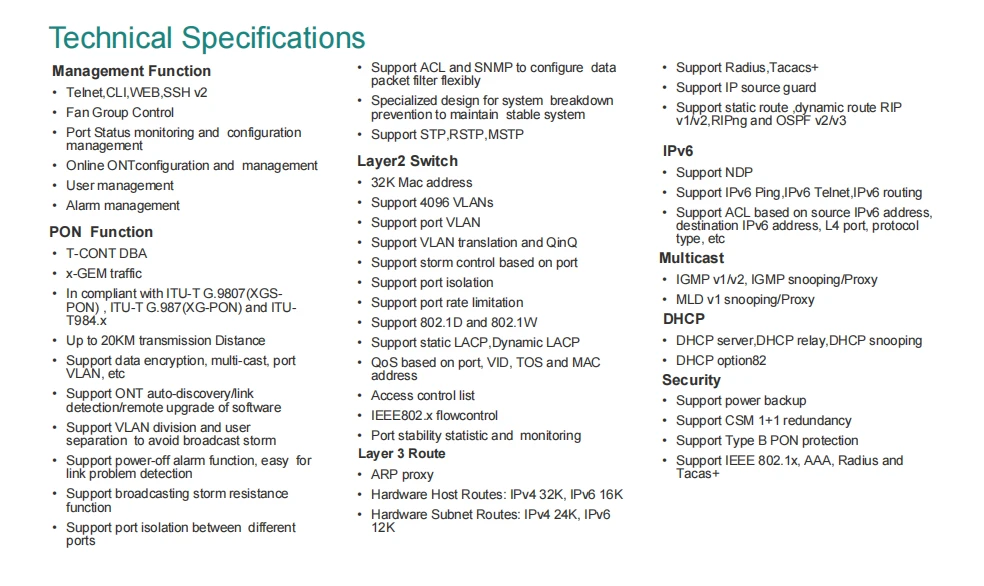

Technical Specifications

Management Function

• Telnet,CLI,WEB,SSH v2

• Fan Group Control

• Port Status monitoring and configuration management

• Online ONTconfiguration and management

• User management

• Alarm management

PON Function

• T-CONT DBA

• x-GEM traffic

• In compliant with ITU-T G.9807(XGS-

PON) , ITU-T G.987(XG-PON) and ITU- T984.x

• Up to 20KM transmission Distance

• Support data encryption, multi-cast, port VLAN, etc

• Support ONT auto-discovery/link

detection/remote upgrade of software

• Support VLAN division and user

separation to avoid broadcast storm

• Support power-off alarm function, easy for

link problem detection

• Support broadcasting storm resistance

function

• Support port isolation between different ports

• Support ACL and SNMP to configure data

packet filter flexibly

• Specialized design for system breakdown

prevention to maintain stable system

• Support STP,RSTP,MSTP Layer2 Switch

• 32K Mac address

• Support 4096 VLANs

• Support port VLAN

• Support VLAN translation and QinQ

• Support storm control based on port

• Support port isolation

• Support port rate limitation

• Support 802.1D and 802.1W

• Support static LACP,Dynamic LACP

• QoS based on port, VID, TOS and MAC

address

• Access control list

• IEEE802.x flowcontrol

• Port stability statistic and monitoring Layer 3 Route

• ARP proxy

• Hardware Host Routes: IPv4 32K, IPv6 16K

• Hardware Subnet Routes: IPv4 24K, IPv6 12K

• Support Radius,Tacacs+

• Support IP source guard

• Support static route ,dynamic route RIP v1/v2,RIPng and OSPF v2/v3

IPv6

• Support NDP

• Support IPv6 Ping,IPv6 Telnet,IPv6 routing

• Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol

type, etc

Multicast

• IGMP v1/v2, IGMP snooping/Proxy

• MLD v1 snooping/Proxy DHCP

• DHCP server,DHCP relay,DHCP snooping

• DHCP option82

Security

• Support power backup

• Support CSM 1+1 redundancy

• Support Type B PON protection

• Support IEEE 802.1x, AAA, Radius and Tacas+
