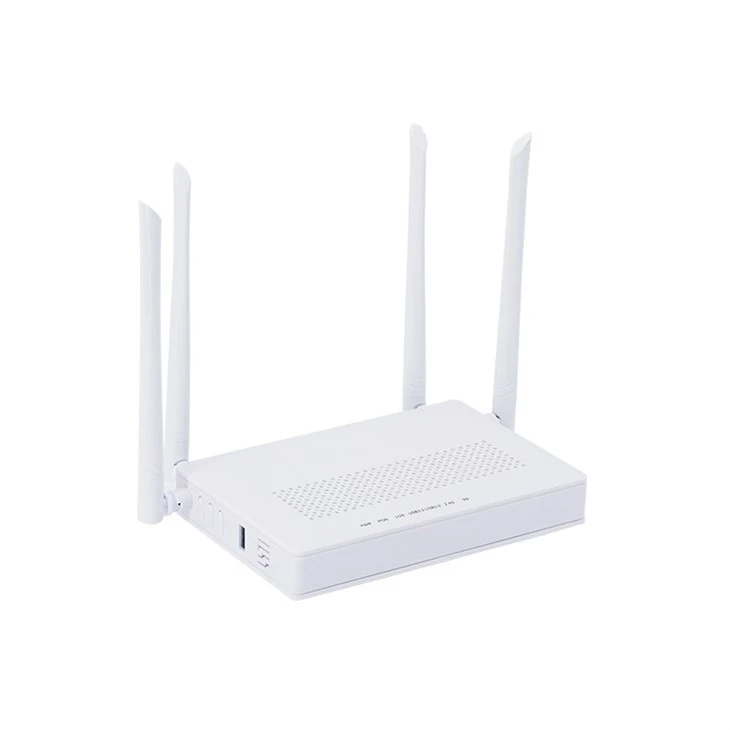

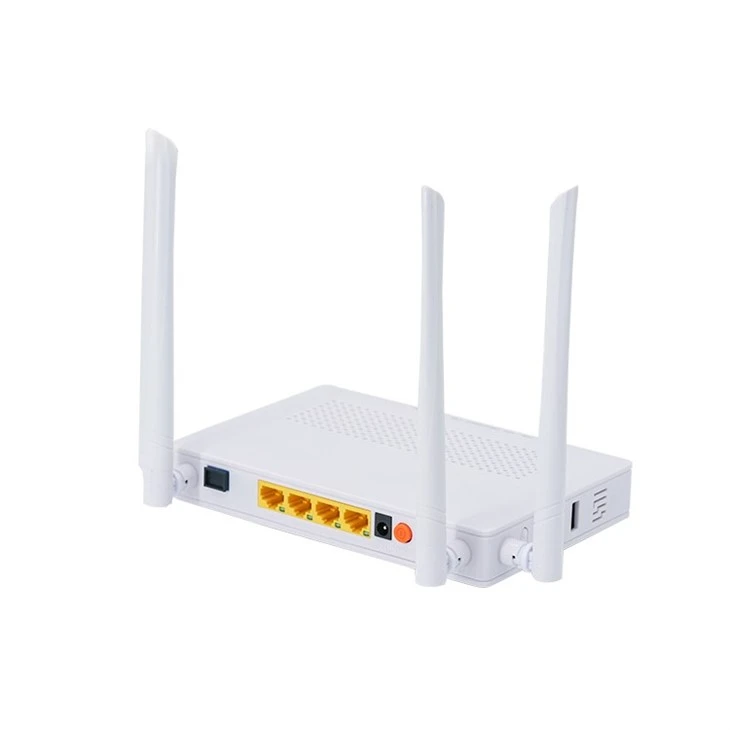

XPON ONU 4GE Dual Band WiFi

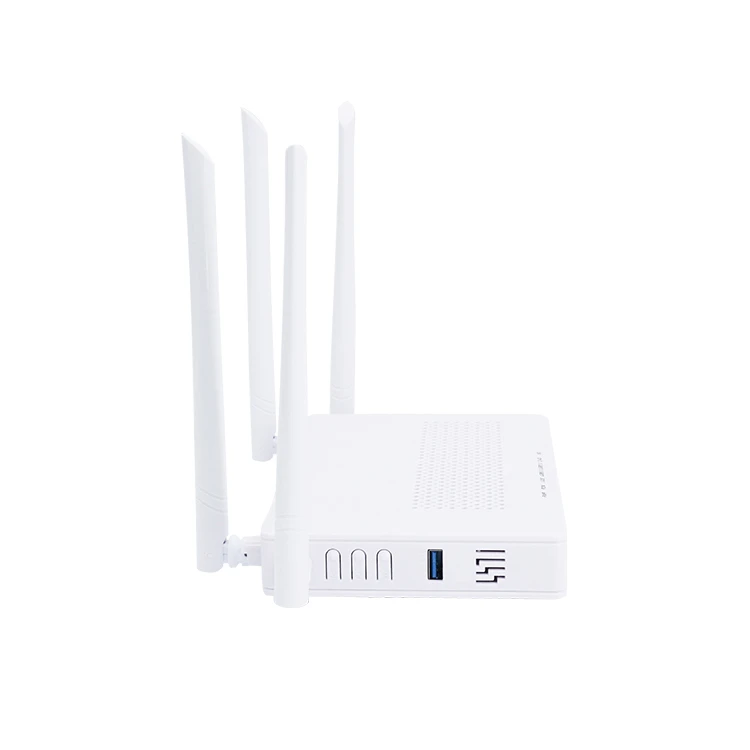

ONT-4GE-DW
ONT-4GE-DW is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi (2.4G+5G) port that providing with high-speed data services and high-quality video services to users.
Product introduction
|
Hardware parameters
|
|
|
Dimension
|
220mm x 150mm x 32mm(Without antenna)
|
|
Weight
|
Approximately310g
|
|
Working environmenttemperature
|
0℃-+40℃
|
|
Working environment humidity
|
5% RH-95% RH, non-condensing
|
|
Power adapter input level
|
90V-270V AC,50/60H
|
|
Device power supply
|
11V-14V DC,1 A
|
|
Static power consumption
|
7.5 W
|
|
Maximum power consumption
|
18 W
|
|
Interfaces
|
1RF+4GE+Wi-Fi(2.4G+5G)
|
|
indicator light
|
POWER/PON/LOS/LAN/WLAN/RF
|
|
Interface parameters
|
|
|
PON interface |
•ClassB+
•-27dBmreceiver sensitivity •Wavelength:upstream 1310nm,downstream 1490nm •Support WBF •Flexible mapping between GEMPortand TCONT •Authenticationmethod:SN/password/LOID(GPON) •Two-way FEC(Forwarderrorcorrection) •Support DBA for SRand NSR |
|
Ethernet port |
•Stripping based on VLAN Tag/Tag for Ethernet port.
•1:1VLAN/N:1VLAN/VLANPass-through •QinQVLAN •MACaddress limit •MACaddress learning |
|
WLAN |
•IEEE 802.11b/g/n
•2×2MIMO •Antenna gain:5dBi •WMM(Wi-Fi multimedia) •Multiple SSIDmultiple •WPS |
|
RFinterface |
•Supports standard RF interfaces
•Support hd data streaming |
|
5G parameters
|
|
|
Network standard
|
IEEE 802.11ac
|
|
Antennas
|
2T2R,support MU-MIMO
|
|
Maximum supported rates |
20M:173.3Mbps
40M:400Mps 80M:866.7Mbps |
|
Data modulation type
|
BPSK QPSK 16QAM 64QAM 256QAM
|
|
Maximum output power
|
≤20dBm
|
|
Typical channel (customizable) |
36,40,44,48,52,56,60,64,100,104,
108,112,116,120 ,124,128,132,136, 140,144,149,153,157,161,165 |
|
Encryption mode
|
WPA,WPA2,WPA/WPA2,WEP,NONE
|
|
Encryption type
|
AES,TKIP
|
Company Profile
Hardware parameters
|
Dimension |
220mm x 150mm x 32mm(Without antenna) |
|
Weight |
Approximately 310g |
|
Working environment temperature |
0℃～+40℃ |
|
Working environment humidity |
5% RH～95% RH, non-condensing |
|
Power adapter input level |
90V～270V AC,50/60Hz |
|
Device power supply |
11V～14V DC,1 A |
|
Static power consumption |
7.5 W |
|
Maximum power consumption |
18 W |
|
Interfaces |
1RF+4GE+Wi-Fi(2.4G+5G) |
|
indicator light |
POWER/PON/LOS/LAN/WLAN/RF |
5G parameters
|
Network standard |
IEEE 802.11ac |
|
Antennas |
2T2R, support MU-MIMO |
|
Maximum supported rates |
20M:173.3Mbps 40M:400Mps 80M:866.7Mbps |
|
Data modulation type |
BPSK QPSK 16QAM 64QAM 256QAM |
|
Maximum output power |
≤20dBm |
|
Typical channel (customizable) |
36,40,44,48,52,56,60,64,100,104, 108,112,116,120 ,124,128,132,136, 140,144,149,153,157,161,165 |
|
Encryption mode |
WPA,WPA2,WPA/WPA2,WEP,NONE |
|
Encryption type |
AES,TKIP |
