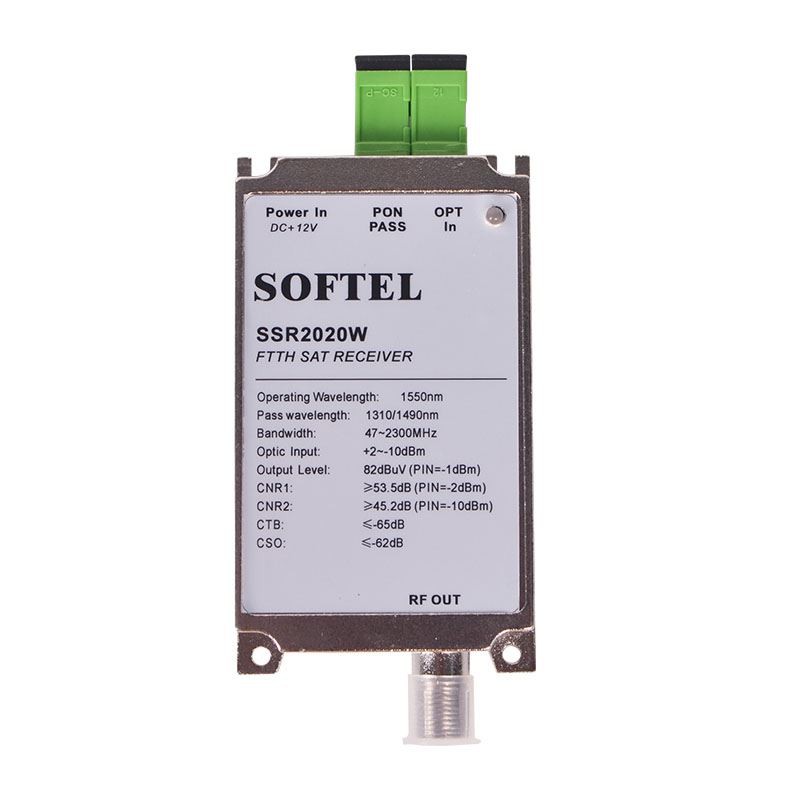

47- 2300 MHz optical fibre node
Product Display
Features
1.Designed For FTTH (Fiber to the Home Network)
2.Excellent Linearity and flatness
3.Frequency range 40-2300MHz For CATV And PON Pass
4.Voltage supply: +5V(DC)
5.Optical Connector: IN SC/APC, OUT SC/UPC
6.Aluminum Profiles housing,excellent heat dissipation
7.Smaller size and easier install
8.Red-LED Power Indication
9.Green-LED Optical Power Indication(Optical power >-13dBm)
Specifications
Number Item | Unit | Description | Remark | |
Customer Interface | ||||
1 | RF Connector | 75Ω"F" connector | ||
2 | Optical Connector | SC/APC | ||
3 | DC Supply | DC Adapter | ||
Optical Parameter | ||||
4 | Input Optical Power | dBm | -20 ~ +2 | |
5 | Optical Return Loss | dB | >45 | |
6 | Optical Receiver Wavelength | nm | 1550nm | |
7 | Optical Fiber Type | Single Mode | ||
8 | PON Pass | nm | 1310/1490nm | |
RF Parameter | ||||
9 | Frequency Range | MHz | 40-860 960-2300MHz | |
10 | Flatness | dB | ±1 | |
11 | RF Return Loss | dB | -14 | |
12 | Output Level | dBuV | 83 | @0dBm |
13 | Output Impedance | Ω | 75 | |
14 | C/N | dBc | 52 | -1dBm input power |
Other Parameter | ||||
15 | Power Input Voltage | VDC | +5V | |
16 | Power Consumption | W | <5.0 | |
17 | Dimensions | mm | 60*60*24 | |
18 | Net weight | KG | 0.108 | |
Company Information
Packing&Shipping
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
