FTTH Optical Node With AGC
The node is a mini in-door optical receiver build in WDM, design for FTTP/FTTH transmission applications. It delivers excellent frequency and distortion responses with low noise, high RF output, and low power consumption. It is single mode fiber-pigtailed and is available with various connector options.
Send Inquiry
Product Introduction

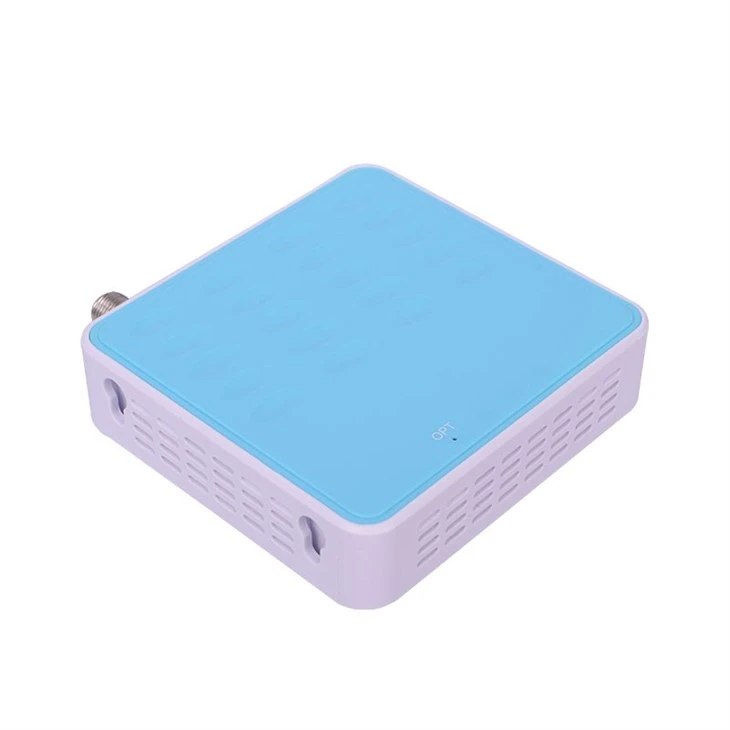

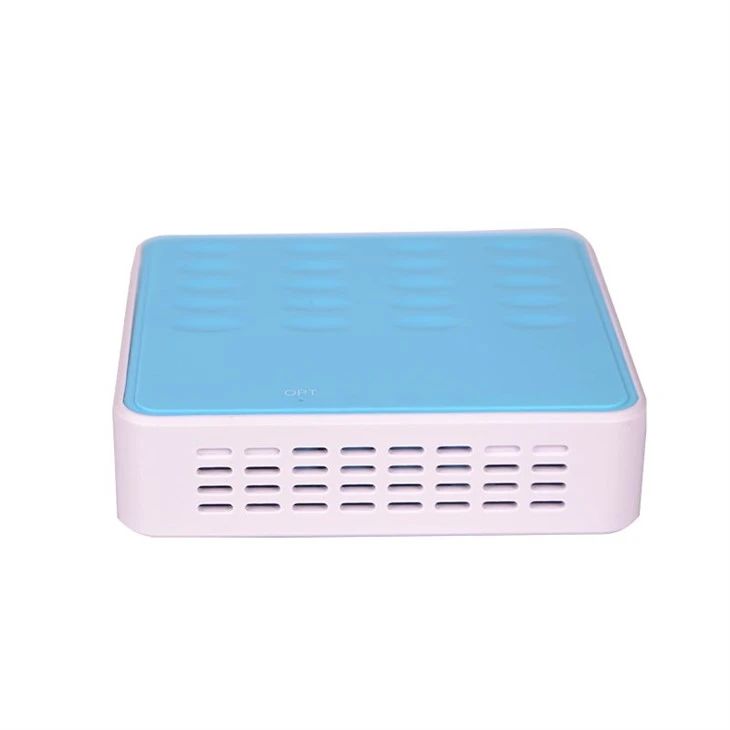

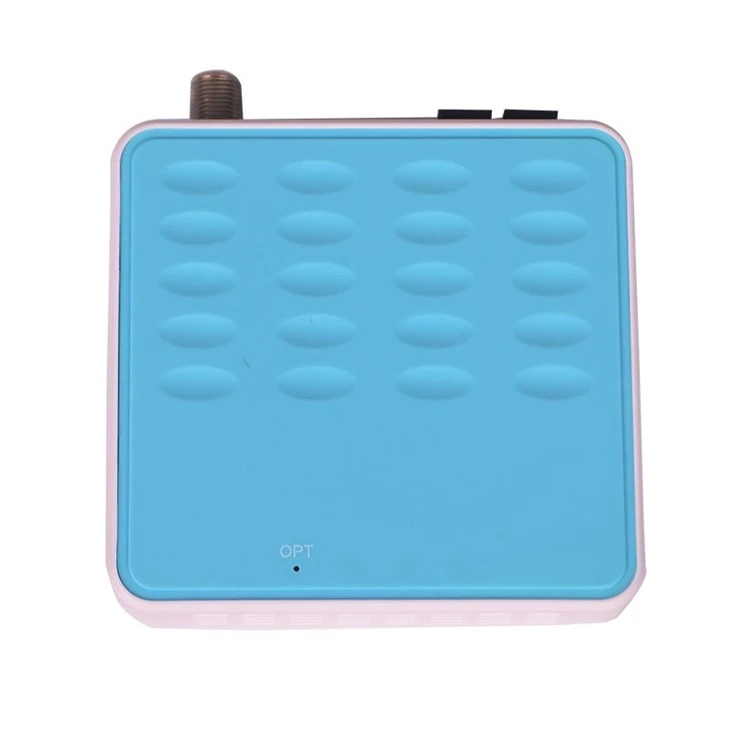

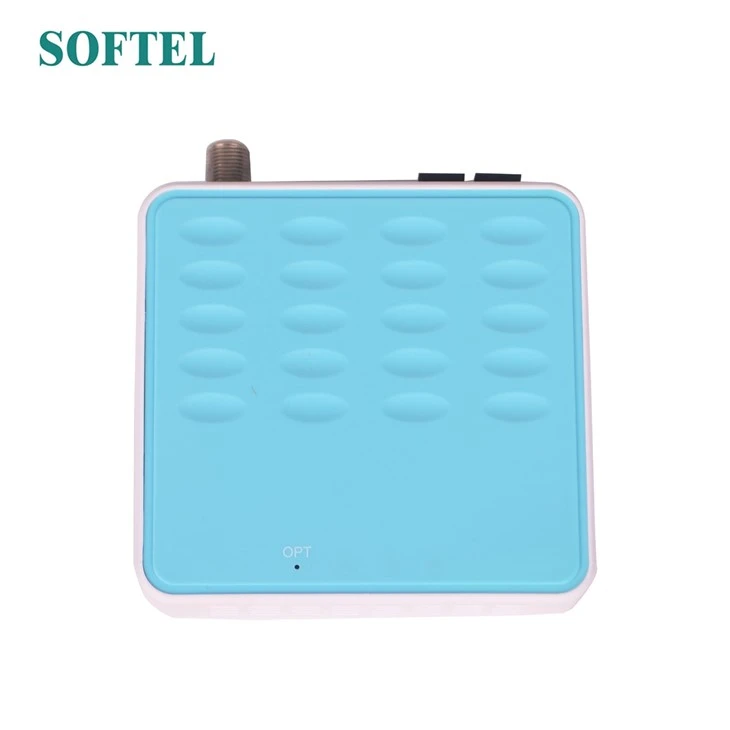

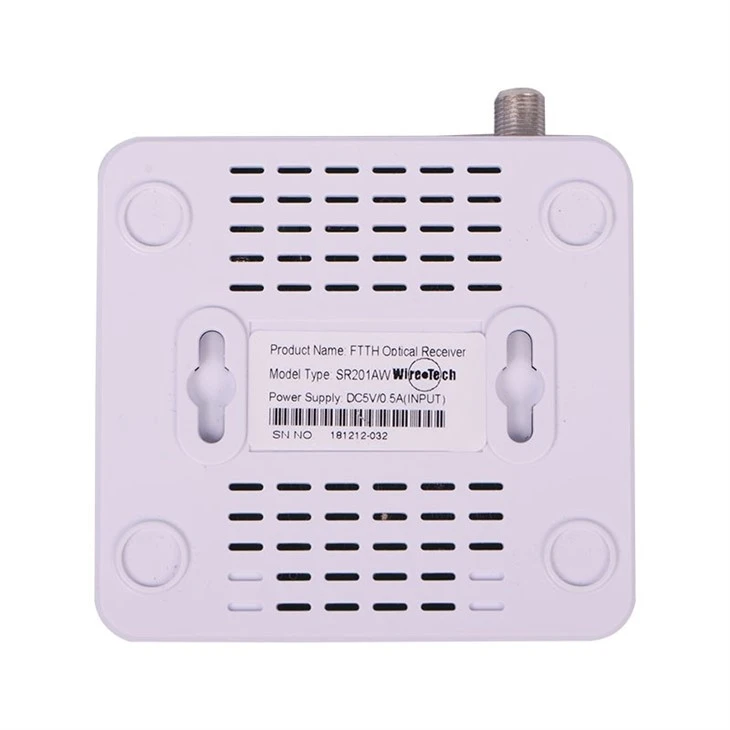

SR201AW FTTH Mini Optical Receiver with WDM
Summary:
The node is a mini in-door optical receiver build in WDM, design for FTTP/FTTH transmission applications. It delivers excellent frequency and distortion responses with low noise, high RF output, and low power consumption. It is single mode fiber-pigtailed and is available with various connector options.
Features
1.GHz operating bandwidth
2.Lower input optical range:+2~-18dBm
3.Output level up to 76dBuV (@-15dBm power input);
4.2 RF Output optional
5.Low power consumption<1.0W;
2.Lower input optical range:+2~-18dBm
3.Output level up to 76dBuV (@-15dBm power input);
4.2 RF Output optional
5.Low power consumption<1.0W;
| Item | Description | Value | Unit | Conditions / Notes |
| Optical Specifications (Forward Path) | ||||
1 |
Wavelength |
1550/1490/1310 | nm | Com port |
| 1490/1310 | nm | For ONT | ||
| 2 3 |
Optical Power Input Range | -18~+2 | dBm | |
AGC Range |
0~-12 |
dBm |
||
| 4 | Optical Input Return Loss | ≥45 | dB | |
| RF Specifications (Forward Path) | ||||
| 4 | Bandwidth | 47~1003 | MHz | |
| 5 | Flatness | ±1.0 | dB | 47~1003MHz,At 25 ºC |
| 6 | Slope | 0~2.0 | dB | 47~1003MHz,At 25 ºC |
7 |
Temperature Stability |
±1.5 | dB | In the operating temperature range (-25 ~ +65 ºC) |
8 |
Output Level |
75±2 |
dBuV |
-15dBm input optical power, The analog channel, per channel modulation 4.0%, in the 860MHz point test, at 25ºC |
| 9 | Impedance | 75 | Ohm | |
| 10 | Return Loss(47~1000MHz) | ≥12 | dB | At 25 ºC |
11 |
MER |
≥30 | dB | -15~-5dBm input optical power |
| ≥24 | dB | -20~-16, input optical power | ||
| 12 | Power | < 1.0 | W | |
| Environmental Parameters | ||||
| 13 | Operating Temperature | -25~65 | ºC | |
| 14 | Storage Temperature | -40~70 | ºC | |
| 15 | Storage Humidity | ≤95 | % | Non- condensation |
| User Interface | ||||
16 |
Optical Connector Type |

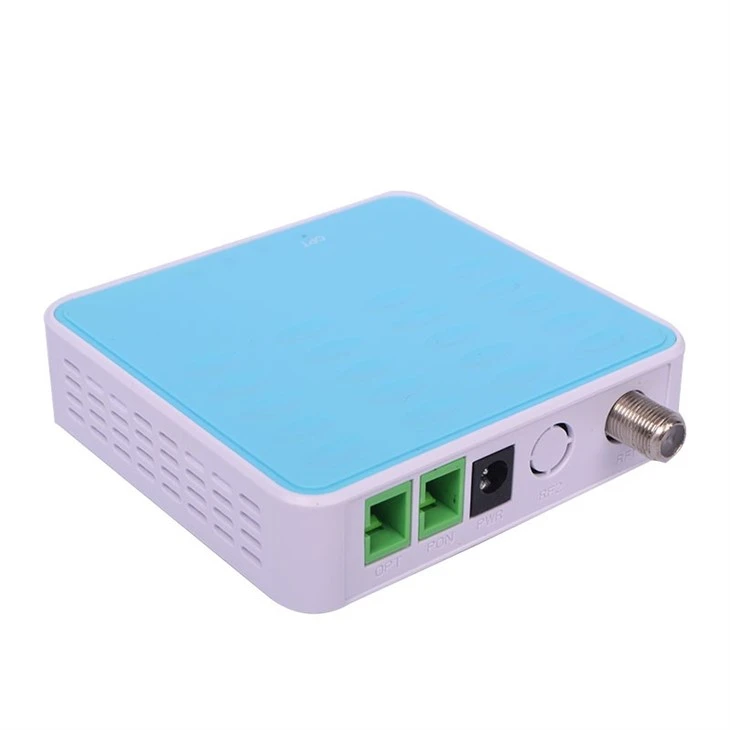

SC/APC in, SC/PC out |
SC Optional, See the figure○4 and○5 |
|
| 17 | Power supply | DC5V/0.5A | External adapter, See the figure○3 | |
18 |
RF Output |
RG6 Connector | Optional, See the figure○1 and○2 |
|
| 1 or 2 ports | ||||
19 |
Optical Indicator |
Shine Red or Green color |
Optical power <-16dBm ,red Optical power >--16dBm ,green See the figure○6 |
|
| 20 | Housing | 90×85×25 | mm | |
| 21 | Weight | 0.15 | kg | |
