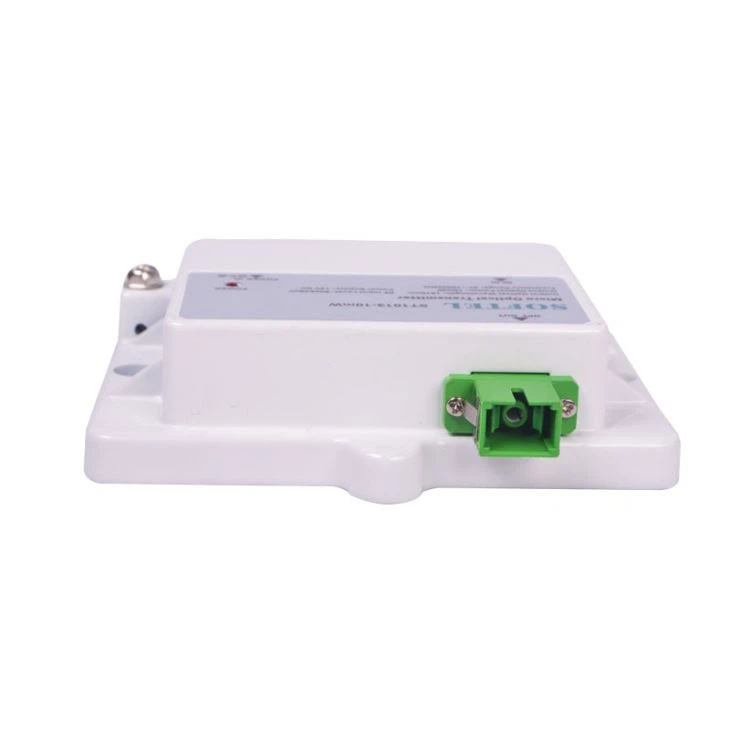

Mini Fiber Optic Transmitter
2. Single-mode fiber high return loss
3. Using GaAs amplifier active devices
4. Ultra low noise technology
ST1013 Mini fiber optic transmitter is designed for FTTH(Fiber To The Home)Networks. Using DFB coaxial small package laser, it has smaller size and is easier to install.
Characteristics
1. Excellent Linearity and flatness
2. Single-mode fiber high return loss
3. Using GaAs amplifier active devices
4. Ultra low noise technology
5. Red-LED for power indication
Parameters of Mini Fiber Optic Transmitter
|
Performance |
Index |
||
|
Customer interface |
RF Connector |
F-Female |
|
|
optical connector |
SC/APC |
||
|
power supply |
F-Female |
||
|
Optic feature |
output optical wavelength |
nm |
1310 |
|
Output optical power |
mW |
10 |
|
|
Optic fiber type |
single mode |
||
|
Return loss |
dB |
≥45 |
|
|
RF feature |
Frequency range |
MHz |
47-1000 |
|
Input level |
dBmV |
80±5 |
|
|
Flatness |
dB |
±0.75 |
|
|
Return loss |
dB |
>16 |
|
|
Input impedance |
Ω |
75 |
|
|
C/N |
dB |
≥52 |
|
|
CTB |
dB |
≥63 |
|
|
CSO |
dB |
≥60 |
|
|
Other parameter |
Size |
mm |
100×98×28 |
|
Power supply |
VDC |
12 |
|
|
Power Consume |
W |
≤2 |
|
