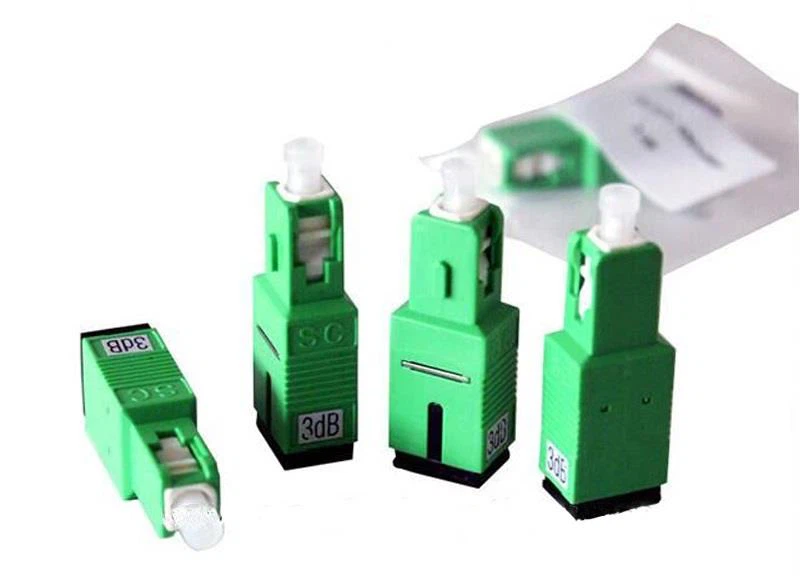

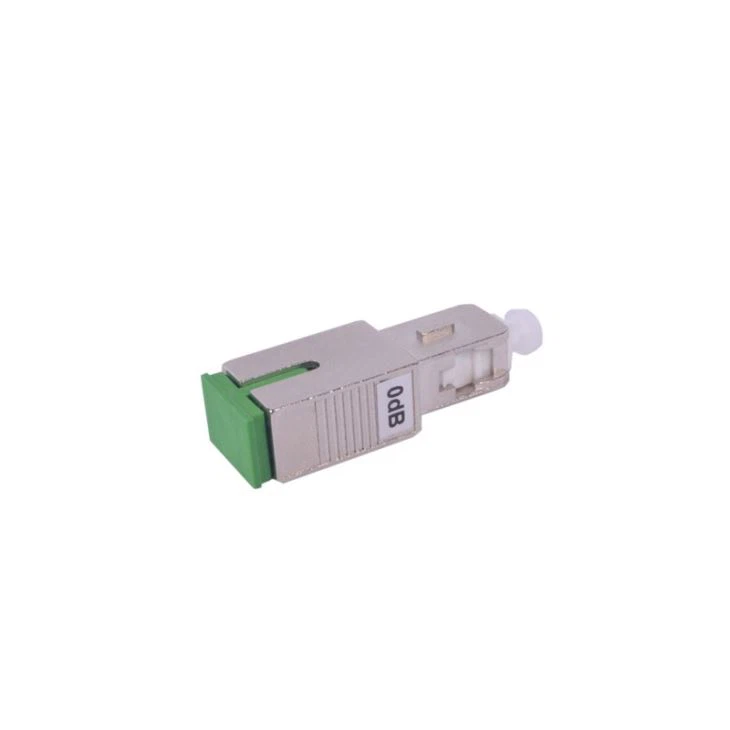

SC Fiber Optic Fixed Attenuator
As a passive optical component, attenuator has an effect on regulating the optical power. We offer LC,ST,MU, FC, SC Fiber Optic Fixed Attenuator with different attenuation level, from 1dB to 30dB.
Applications
SC Fiber Optic Fixed Attenuator can be applied for fiber communication system, component testing and Test instruments.
Specifications of LC,ST,MU, FC, SC Fiber Optic Fixed Attenuator
Grade Parameter | P | A |
Type | FC/UPC, FC/APC, SC/UPC, SC/APC etc | |
Wavelength(nm) | 1310/1550±50nm | |
Attenuation Range(dB) | 5dB40dB | |
Attenuation Precision(dB) | ±0.5dB(Attenuate10dB) | ±1.0dB(Attenuate10dB) |
Return Loss(dB) | ≥45 | ≥40 |
PDL(dB) | ≤0.1 | |
Repeatability(dB) | ≤0.1 | |
Operating temperature() | -40~85 | |
Storage temperature() | -40~85 | |
