Fast Connect SCAPC

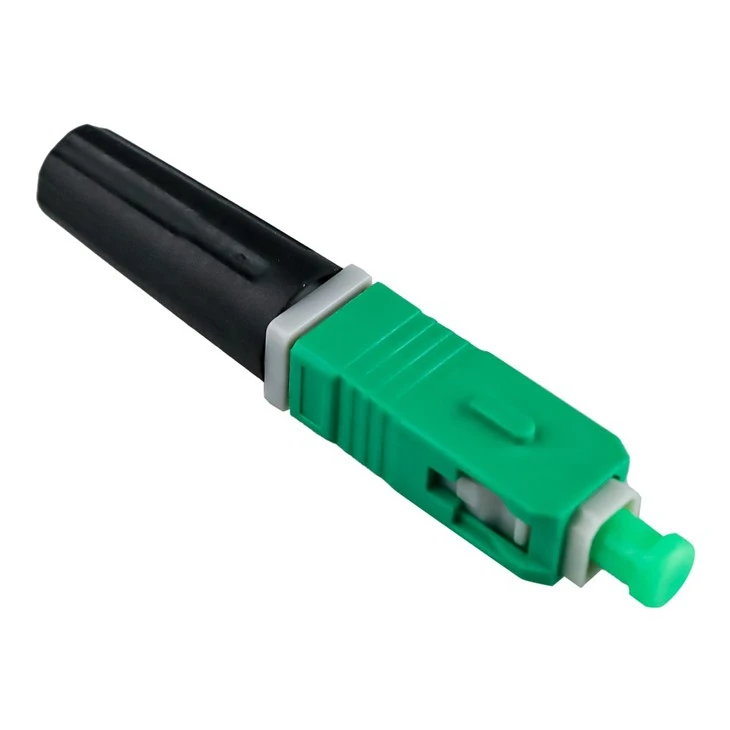

SC/APC-H23-G are embedded type optical fiber fast connectors designed for FTTH (Fiber to the Home) drop cable termination. Featuring a pre-polished ceramic ferrule and mechanical splicing technology, these connectors enable quick, tool-free field installation without the need for fusion splicing or epoxy polishing. With ultra-low insertion loss (≤0.3dB) and high return loss (≥50dB for UPC / ≥55dB for APC), they deliver reliable, high-performance optical signal transmission for last-mile fiber access networks.

Send Inquiry

Product Introduction

Product Parameters

Items	Parameters
Connector Length	52mm
Applicable Cable	2.0x3.0mm Drop Cable
Cladding Diameter	125μm (G657A2)
Coating Diameter	250μm
Insertion Loss (1310nm & 1550nm)	≤0.3dB (Avg), ≤0.50dB (Max)
Return Loss	≥50dB (UPC), ≥55dB (APC)
Average Assembly Time	≤3min
Rate of Success	≥95%
Repeated assembly	≥5 times
Clamping Force	≥4N
Tensile Strength	≥40N
Repeatability (10 times)	∆IL≤0.3dB, ∆RL≤5dB
Mechanical Endurance (500 times)	∆IL≤0.3dB, ∆RL≤5dB
Fall-down Test (1.5m height, 8 times)	∆IL≤0.3dB, ∆RL≤5dB
Temperature Range	-40~+85℃
High Tmperature and Moisture Test (96h)	∆IL≤0.3dB, ∆RL≤5dB
Temperature Cycle Test (21 times, 168h)	∆IL≤0.3dB, ∆RL≤5dB
