                                                      24 core distribution box ftth





24 core distribution box ftth is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.





1, Total enclosed structure.

2, Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP66.

3, Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4, Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

5, Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

6, Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.



1,Environmental requirement

Working temperature：-40℃～+85℃

Relative humidity：≤85%(+30℃)

 Atmospheric pressure：70KPa～106Kpa

2,Main technical datasheet

Insertion loss：≤0.2dB

UPC return loss：≥50dB

APC return loss：≥60dB

Life of insertion and extraction：＞1000 times

3,Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2x10000MΩ/500V(DC);

IR≥2x10000MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V



_{4. Configuration table}



Model	Description	Size	Max Capacity			Installation Size	Cable ways
		A*B*C(mm)	SC	LC	PLC	D*E (mm)
FTTX-PT-S24	Fiber Access Terminal	340*250*110	24	48	1 x 1:16/ 3 x 1:8	145*120	Cutted/uncutted cable

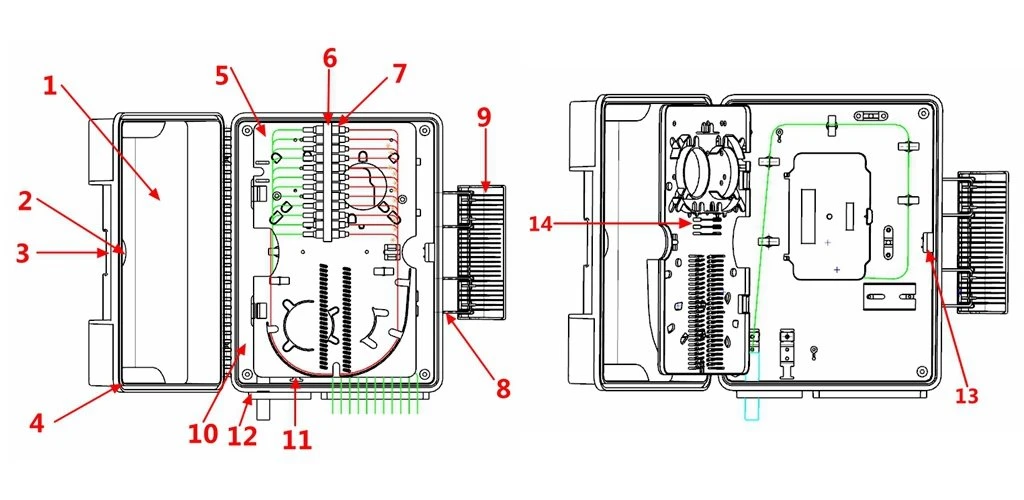

Cable ways

1.Lid	2.Lock coat	3.Lock	4.Seal gasket	5.Splicing flap plate	6.Adaptor holder	7.Adaptor
8.Lid lock joint bracket	9.Lid lock clip	10.Base	11. Cable strengthen mound layer	12. Cable entrance	13.Lock panel	14.PLC mounting position



 1．Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.(Pic Left)

2．Pole-mounted installation

     Fix 1 set of the easy pole ring to the telecom pole .(Pic Right)
