Cajas Nap 16 Puertos

For inquiries about our products or pricelist, please contact us:   Helena Chen

Email: softel12@softel-optic.com  Whatsapp: +86 184 5798 0817  https://wa.me/8618457980817

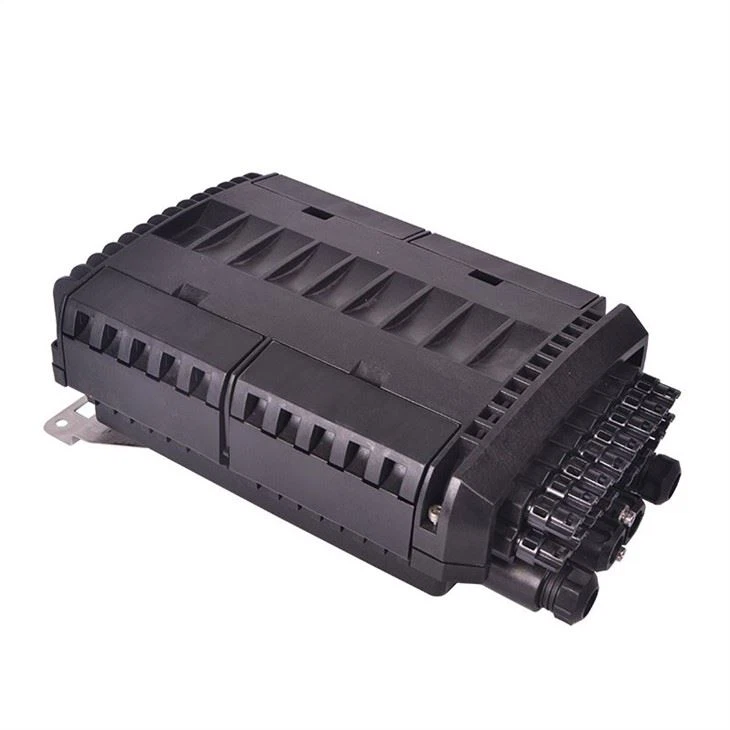

                                            cajas nap 16 puertos

Production Description

Cajas nap 16 puertos  is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Features

1、 Total enclosed structure.

2、 Material: PC，wet-proof. water-proof. dust-proof. anti-aging, protection level up to IP68

3 、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.

5 、 Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

6 、 Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.



Specification (cajas nap 16 puertos)

1. 1. Environmental requirement

Working temperature: -40℃～+85℃ Relative humidity: ≤85%（+30℃） Atmospheric pressure: 70KPa～106Kpa

1. 2. Main technical data-sheet Insertion loss: ≤0.2dB

UPC return loss: ≥50dB APC return loss: ≥60dB

Life of insertion and extraction: ＞1000 times

1. 3. Thunder-proof technical data-sheet

The grounding device  is isolated with  the cabinet, isolation resistance  is less than     2 ´104 MΩ/500V(DC); IR≥2´104 MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V

（DC）/min, no puncture, no flashover: U≥3000V

 Configuration Table

Model	Description	Size（Pic 1）	Max Capacity	Installation Size(Pic 2）	Cable entry
		A*B*C(mm)	SC	D*E*F (mm)
24 Core	Splitter Box	388*242*12 8	24	135*135*190	Express port
16 Core	Splitter Box	388*242*12 8	16	135*135*190	Express port



cajas nap 16 puertos  Installation:

1. Wall-mounted installation

According to the size of table 1 of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw。(Pic 5)

2. Pole-mounted installation

Fix 1 set of the easy pole ring to the Telecom pole .



Company Information



Packing&Shipping
