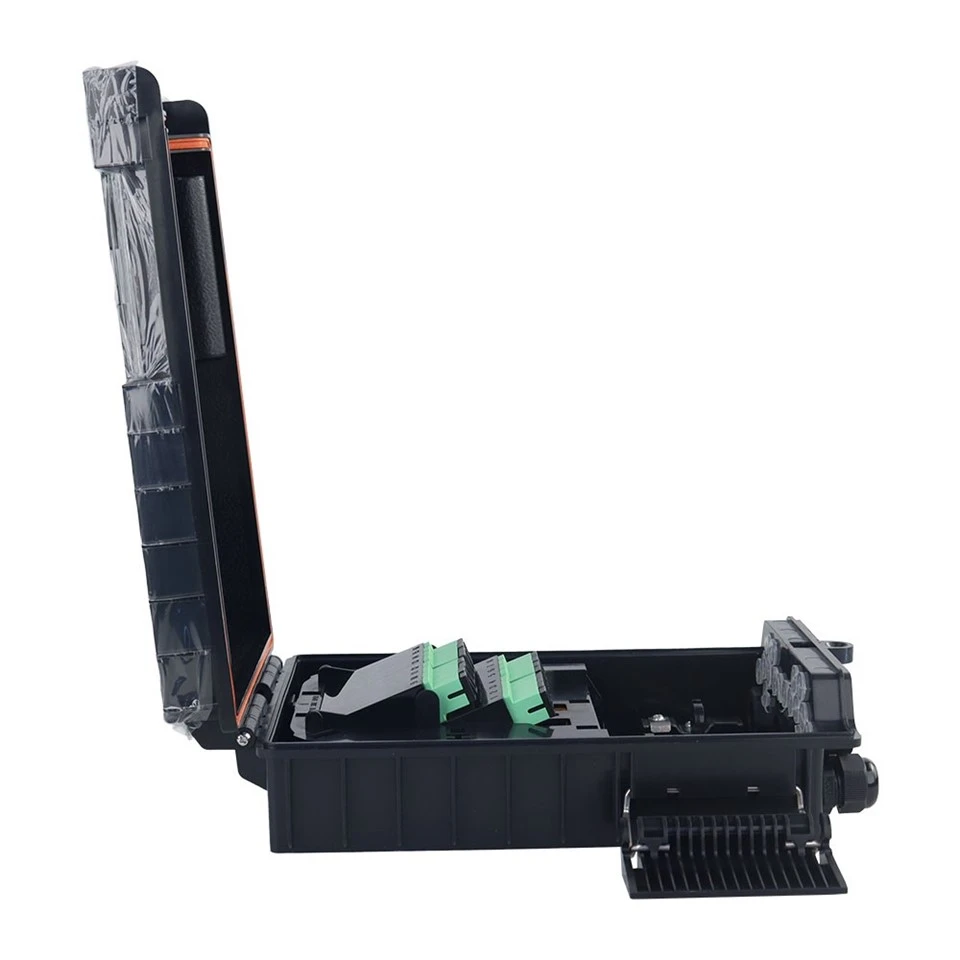

FTTX-PT-16W Fiber Splice Box



The FTTX-PT-16W Fiber Splice Box is a crucial device in the FTTx communication network system, primarily used as a connection point between feeder cables and drop cables. In this box, key operations such as fiber splicing, splitting, and distribution can be completed, while providing solid protection and management guarantee for the construction of FTTx networks.
This fiber splice box has many outstanding features. It adopts a fully enclosed structure, which can effectively isolate the interference of the external environment. The material is PC ABS, which has excellent moisture, water, dust and aging resistance, and has a protection rating of up to IP65, which can maintain stable operation in complex environments.
In terms of functional integration, it realizes various functions such as clamping, fiber splicing, fixing, storage, and distribution of feeder cables and drop cables, which greatly improves the convenience and integration of operation. Moreover, cables, pigtails, and jumpers all have their own independent paths, which do not interfere with each other, and are installed with cassette SC adapters, which is convenient for later maintenance.
Additionally, the distribution panel can be flipped up and the feeder cable can be placed through a dedicated port, making installation and maintenance easier and more efficient. The enclosure can be wall-mounted or pole mounted, making it suitable for both indoor and outdoor scenarios, providing great flexibility in FTTx network deployment.





1.Total enclosed structure.

2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4. Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.

5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.





Specification：

1.Environmental requirement

Working temperature:-40℃～+60℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2.Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:＞1000 times

3.Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC);

IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover

;U≥3000V

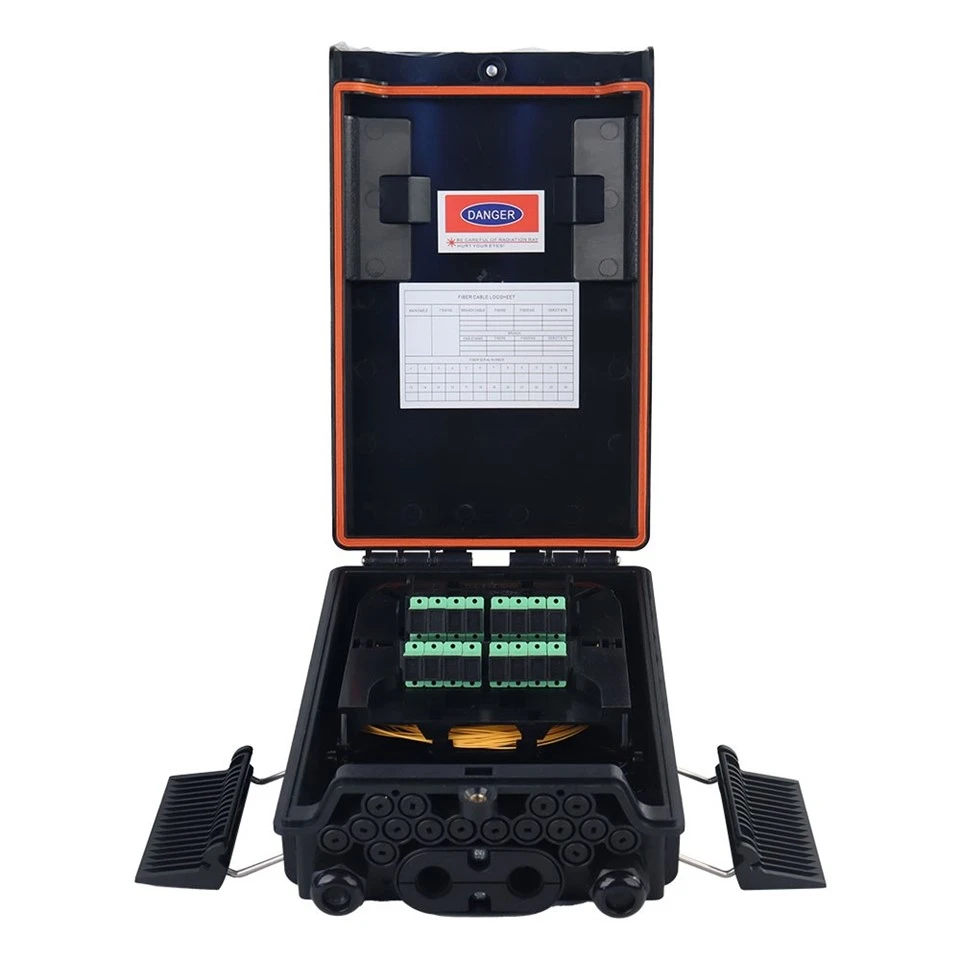

Product inside structure and cable ways:



1. 16W Lid; 2. 16W Base;3.Connecting screw;4.Rubber seal;5. Locked bolt;6. 8B/12D Door clip;7. 8B/12D Door clip connecting bracket;8.Loop ring;9.The flap fixed bracket;10.FDB0212E C type flip plate;11.FB0212E B type flip plate;12.FDB0212E A type flip plate;13.Flip bracket;14.FDB026H Fiber fixer;15.FDB0212E Grounding bracket;16.PG13.5 Water proof blocker;17.FDB0216W Cable exit mat;18.E type link-2;19.E type link -1;Cable ways
