FOSC Enclosure
FOSC Enclosure

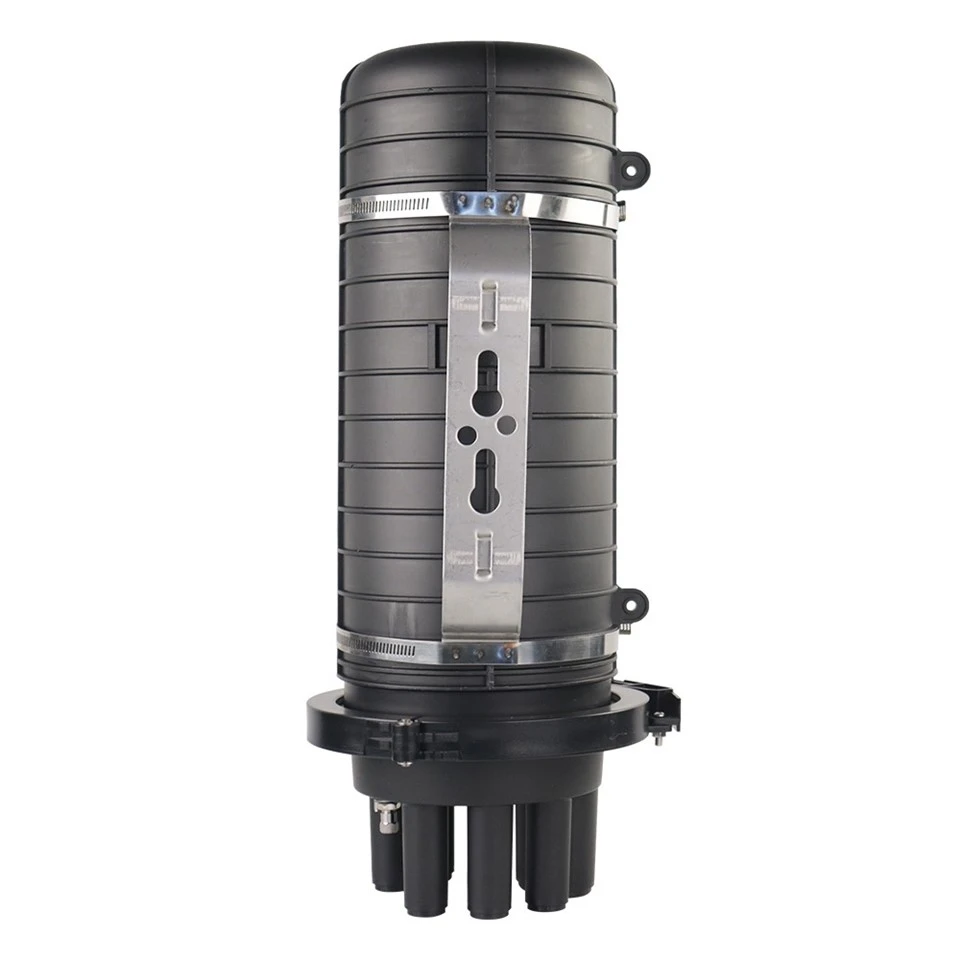

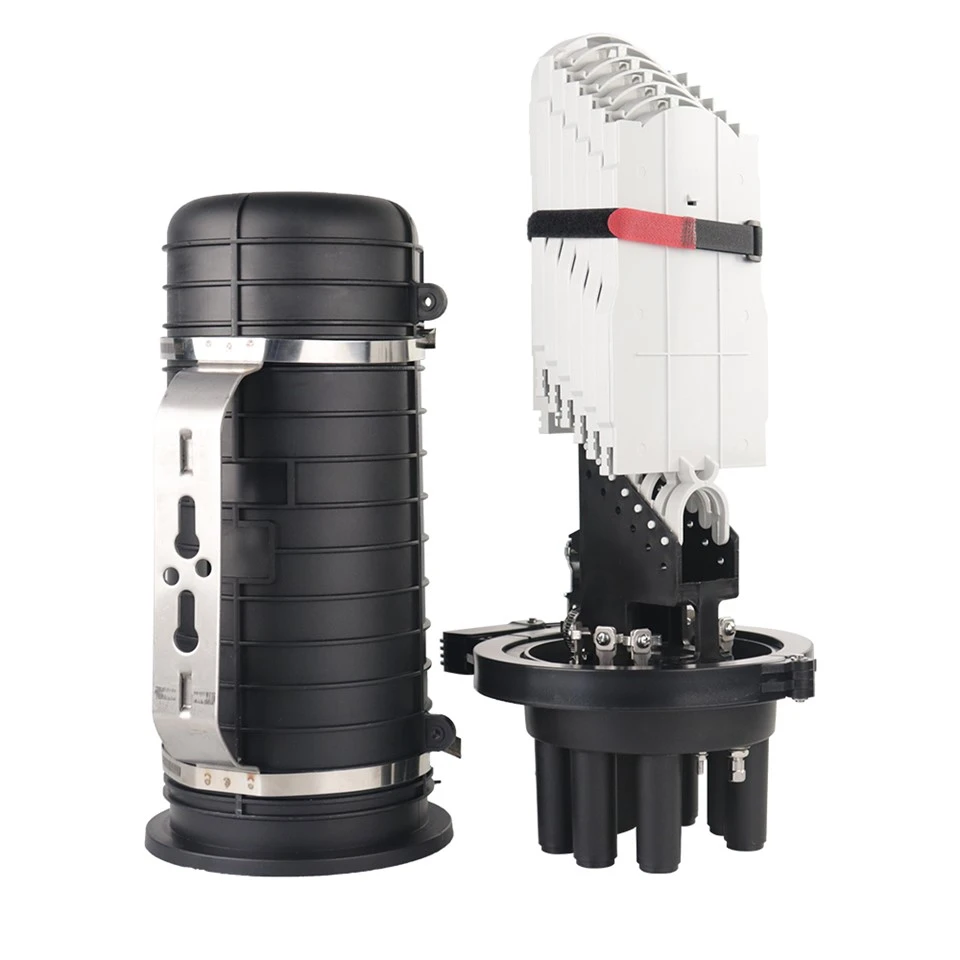

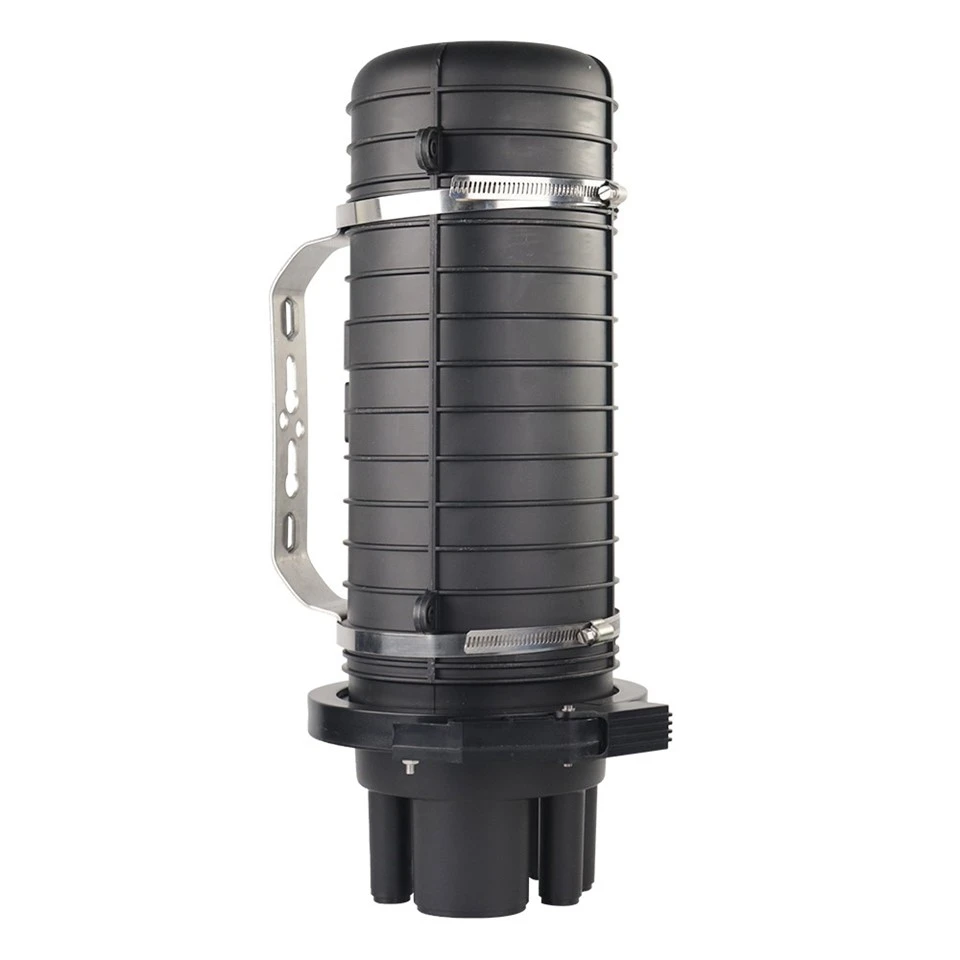

FOM-GPJ09-5606 FOSC Enclosure specially designed to provide reliable and long-lasting protection for optical fibers and splices, combined with maximum ease of installation and maintenance. The closure is made of glass-filled polypropylene, which can make sure long time service. Heat shrink seal for cable ports, excellent sealing performance.
Features
Cable diameter: 1 Uncut port meet φ10～15mm cable; 6 branch ports meet φ8～15mm cable
Product capacity: Single fiber max capacity is up to 144f, also support max 432f ribbon fiber
Installation method: Suitable for direct buried, aerial, pole,pipeline,manhole, etc.
Sealing mode: heat shrink seal is adopted for cable ports, with protection grade of IP68.
Easy installation with no special tool required.
Dimension and capacity of FOSC Enclosure
|
Model No. |
FOM-GPJ09-5606 |
||
|
Style |
Dome |
||
|
Dimensions(mm) |
525 × Φ225 |
||
|
Weight (kg) |
3.6 - 4.2 |
||
|
Material |
PP+GF |
||
|
Sealing Type |
Heat shrink seal |
||
|
Protection Grade |
IP68 |
||
|

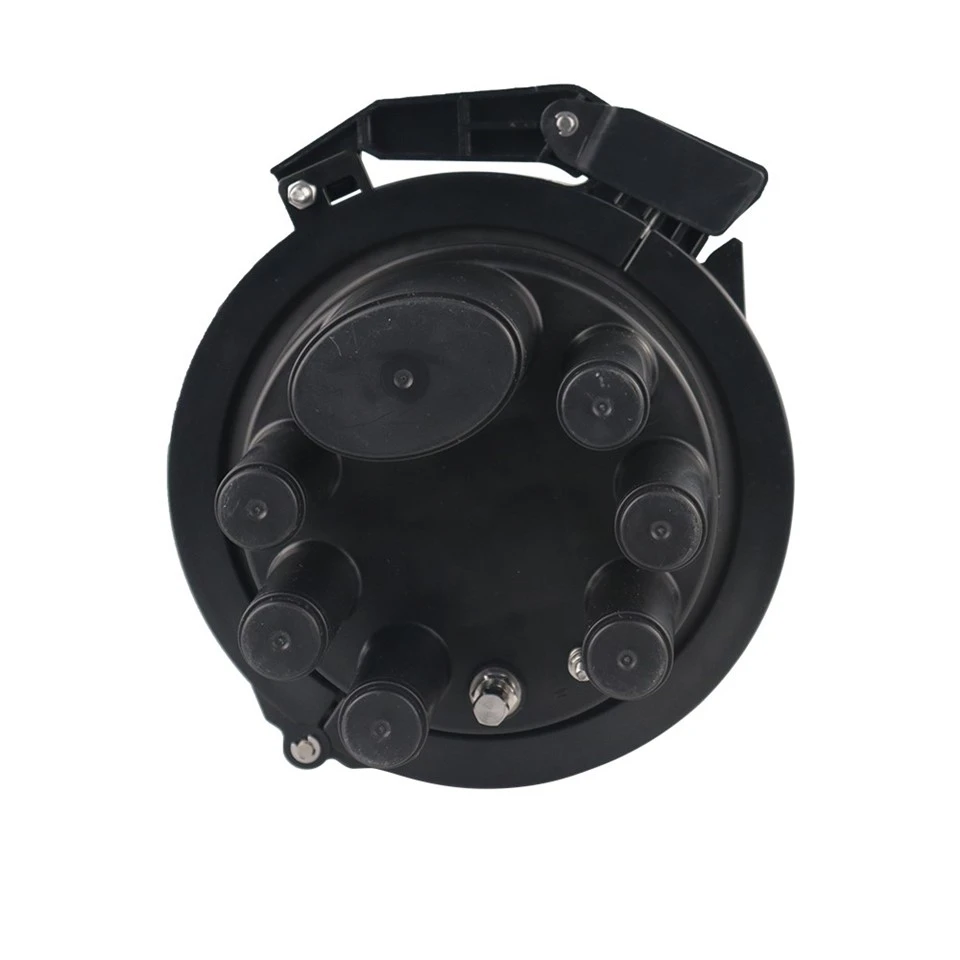

Cable ports |
Oval port |
1 |
Φ10 - Φ15 mm |
|
Branch port |
6 |
Φ8 - Φ15 mm |
|
|
Closure Max Capacity |
Single fiber splicing |
144f |
|
|
Ribbon fiber splicing |
432f |
||
|

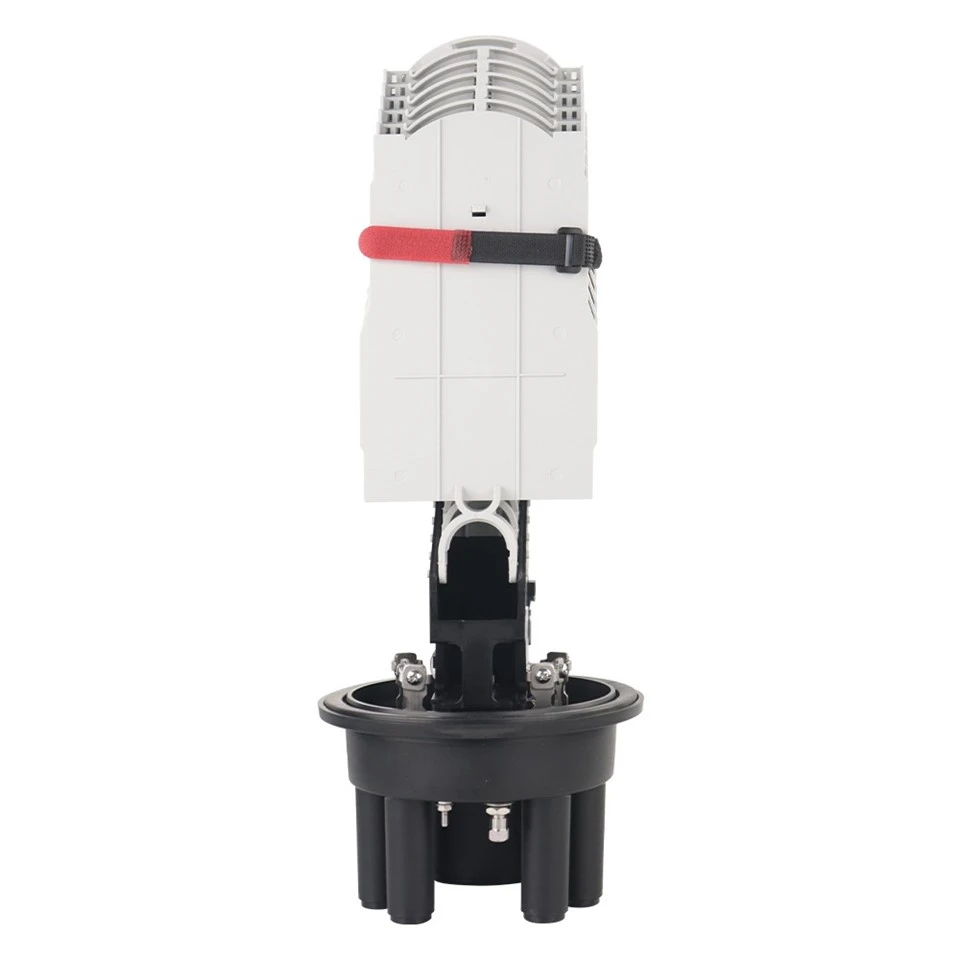

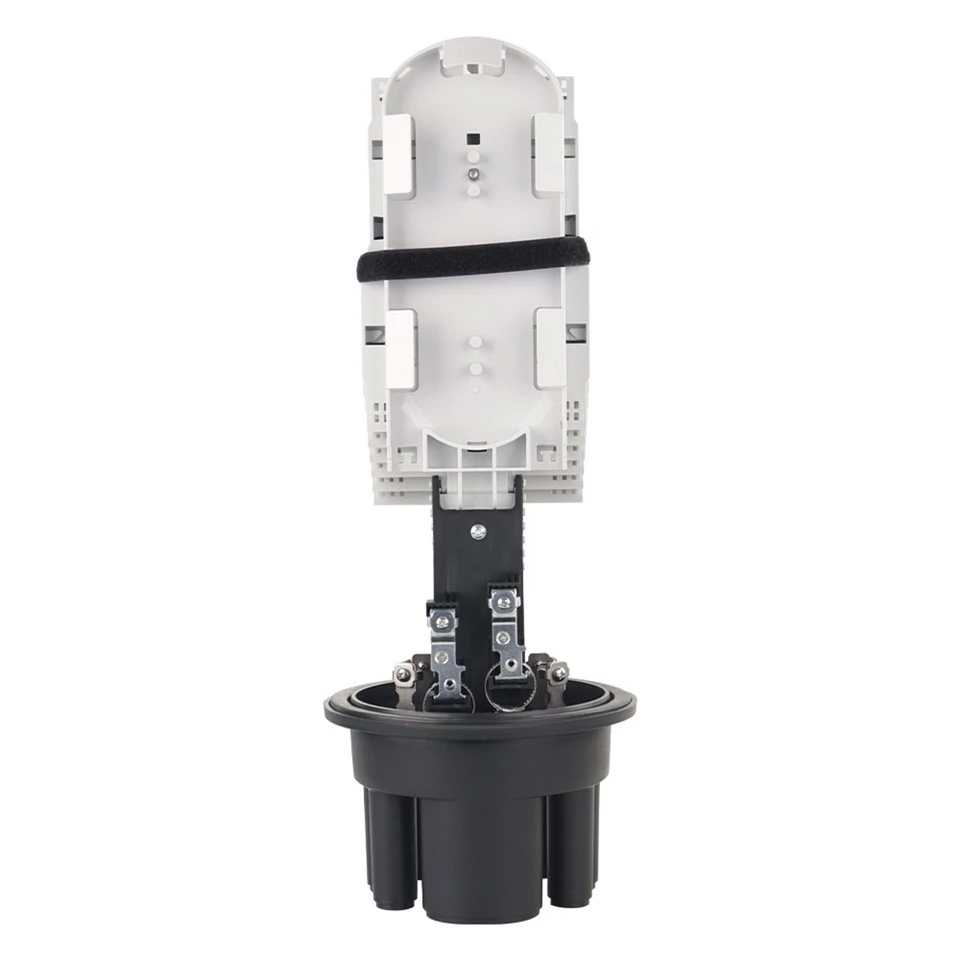

Splice Tray Capacity |
Single fiber splicing per tray |
36f |
|
|
Ribbon fiber splicing per tray |
6Ff |
||
|
Max No. tray installed |
4pc |
||
|
Installation |
Aerial, wall, pole, manhole, pedestal etc. |
||
Standard accessories of FOSC enclosure (Picture only for refer)
|
Item |
Description |
Qty |
Picture |
|
1 |
Heat shrink tube for uncut port |
1 pc |
|
|
2 |
Heat shrink tube for branch port |
1 pc |
|
|
3 |
Branch clip |
1 pc |
|
|
4 |
Aluminum paper |
7 pcs |
|
|
5 |
Insulation tap |
1 roll |
|
|
6 |
Splicing protective tube |
1 bag |
|
|
7 |
Nylon cable tie |
1 bag |
|
|
8 |
Sand paper |
1 pc |
|
|
9 |
Installation manual |
1 set |
|
|
10 |
EVA tube |
1 roll |
|
|
11 |
Clean paper |
1 pc |
|
|
12 |
Silicon oil |
1 pc |
|
Optional accessory
|
Item |
Description |
Qty |
Picture |
|
1 |
Air Valve |
1set |
|
|
2 |
Ground lead |
1 set |
|
|
3 |
Aerial mounting fittings |
1 set |
|
|
4 |
Pole mounting fittings |
1 set |
|
|
5 |
Wall mounting fittings |
1set |
|
