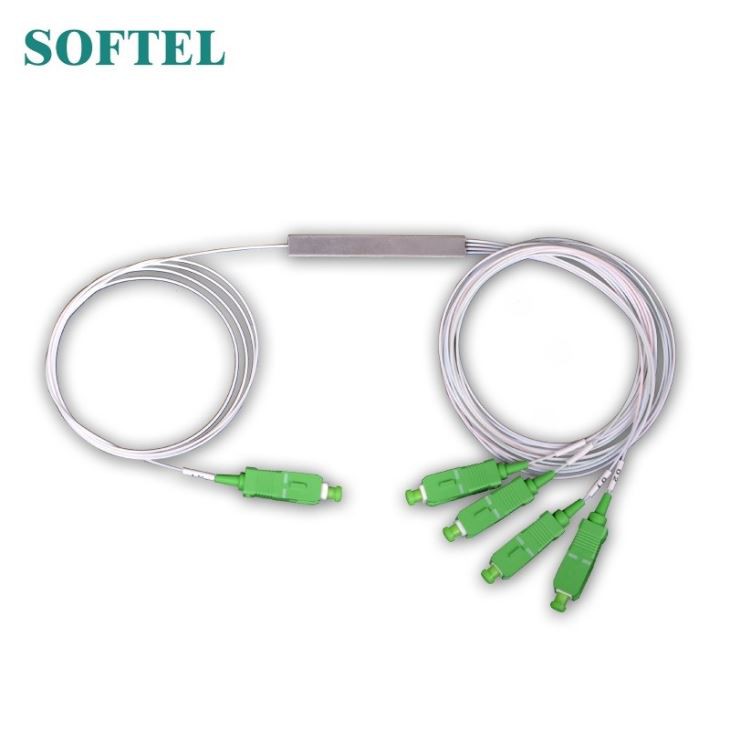

1x4 Mini PLC Splitter
1x4 Mini PLC Splitter
1x4 Mini PLC splitter is of extremely low excess loss, which greatly increases the coupler’s liability and long-term stability.
Characteristics
Low insertion loss and PDL
High return loss and directivity
Good uniformity
Main applications of 1x4 Mini PLC Splitter
• Network protection
• Monitoring
• Access/PON distribution
Specifications
Parameters | 1x4 Mini PLC Splitter | ||
1 | Operating Wavelength(nm) | 1260-1650 | |
2 | Insertion Loss (dB) | Max(S/P) | 7.4/7.2 |
3 | Loss Uniformity (dB) | Max | 0.6 |
4 | Return Loss (dB) | Min(S/P) | 50/55 |
5 | PDL (dB) | Max | 0.2 |
6 | Directivity (dB) | Min | 55 |
7 | Pigtail Length(m) | 1.2(±0.1) or customer specified | |
8 | Fiber Type | SMF -28e or customer specified | |
9 | Wavelength Dependent Loss(dB) | 0.2 | |
10 | Temperature Stability(-40~85)(dB) | 0.3 | |
FAQ
1. What are the payment terms?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is the most convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, UPS and so on. While for the goods of heavy weight and large volume, air or sea shipment will be recommended .
