Ku Band LNB

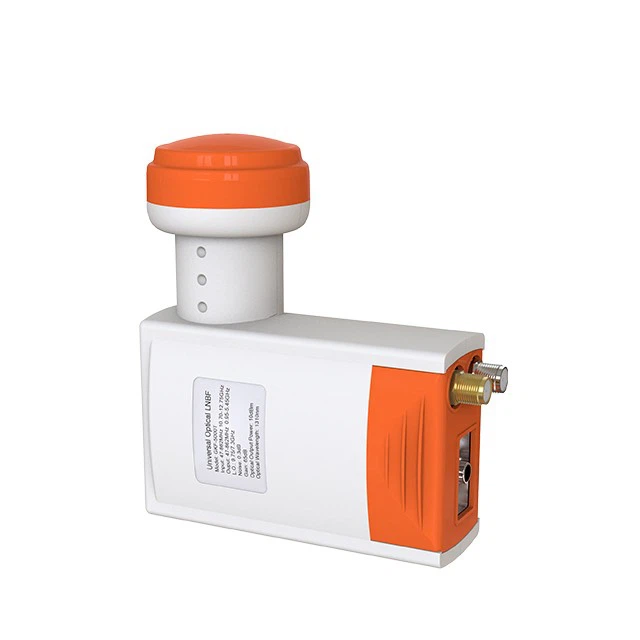

GKF-5000T Ku Band LNB

Features

Long-distance transmission

Reduce installation cost

Low noise

Sustain splitting into 64 ways(Max.)

Full coverage of Ku-Band for analog and digital reception



Specifications of Ku Band LNB



Item	Specification
Input Frequency Range	Satellite:10.70~12.75GHz Terrestrial:47~862MHZ
Output Frequency Range	Vertical: 0.95~3GHz Horizontal: 3.4~5.45GHz Terrestrial:47~862MHZ
L.O. Frequency	Vertical: 9.75 GHz Horizontal: 7.3 GHz
L.O. Frequency Stability	±1.0MHz (Max.)@+25°C ±2.0 MHz (Max.)@-30'℃~+70°C
L.O. Noise	-60dBc/Hz@1KHz -80dBc/Hz@10KHz -100dBc/Hz@100KHZ
Noise Figure	0.3 dB (Typ.)
Conversion Gain	65dB (Typ.)
Gain Flatness	+0.5dB/26MHz
Cross POL. Isolation	25 dB (Typ.)
DC Current Consumption (LNB)	150mA
Maximum upstream current	250mA
Noise Figure	0.3dB(TyP.)
Modulated Laser Output	1310nm
Optical Output Power	10dBm(Typ.)
Conversion Gain	65dB(TyP.)
Gain Flatness	±0.5dB/27MHZ
Cross POL. lsolation	25dB(TyP.)
Image Rejection	40dB(Min.)
Ter./Dc input	Female F-Type
Optical output	FC/PC
Relative Humidity	0%~95%
Operating Temperature	-30℃~+70℃
Supply Voltage(LNB)	12V
Output voltage (Terrestrial)	12V
Terrestrial input power	70~85dBuV
