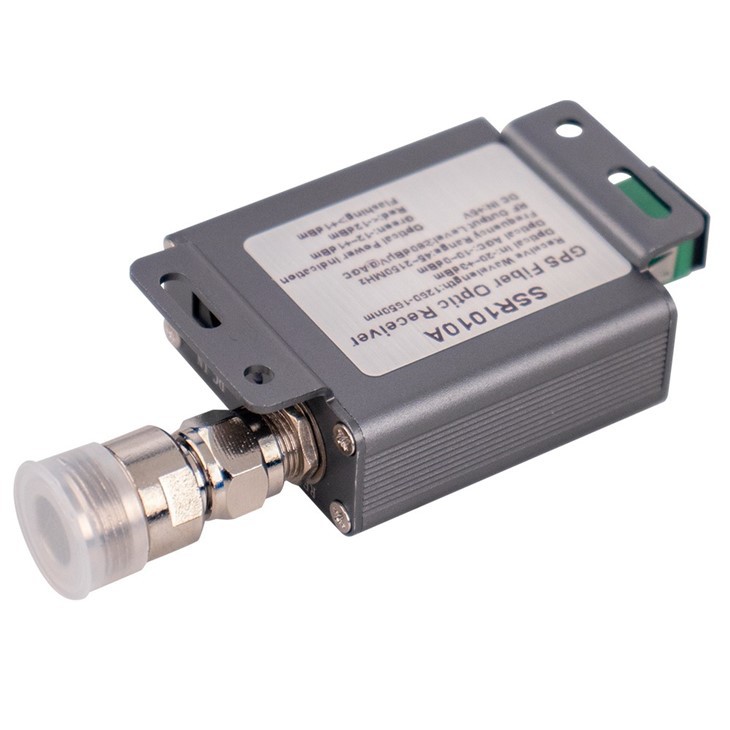

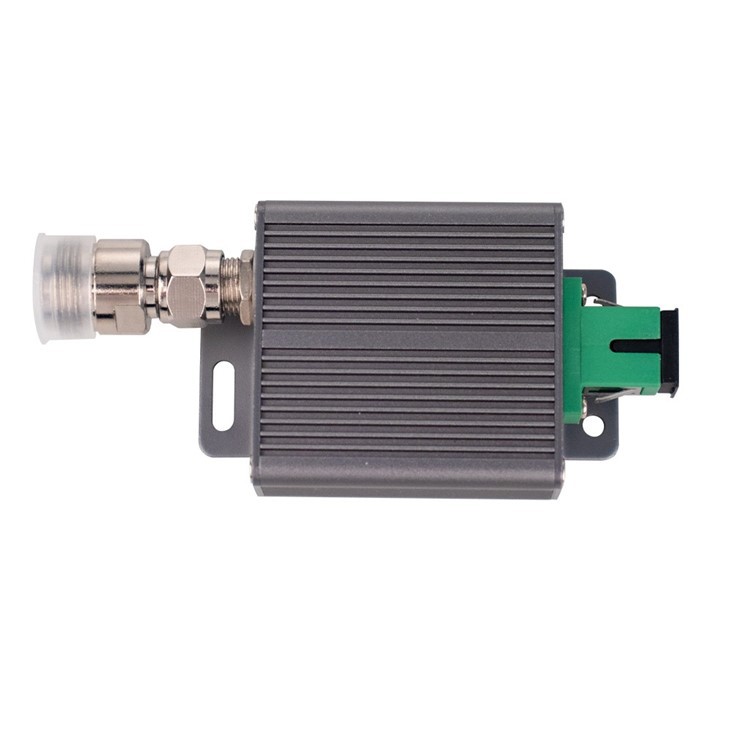

FTTH Satellite Fiber Optic Receiver
SSR1010A
FTTH Satellite GPS Fiber Optic Receiver
Features
Designed for FTTH(Fiber To The Home) networks
Excellnt linearity and flatness
Wide range of optical input power
Single-mode fiber high return loss
Using GaAs amplifier active devices
Ultra low noise technology
Smaller size and easier install
Bicolor LEDs for optical power indication (Red: optical power<-12dBm,Green:-12dBm<optical power<+1dBm,Red & Green Flashing: optical power>+1dBm)
Build-in optical AGC function
Using Aluminum alloy Housing, good heat dissipation performance
Specification of Ftth Satellite Optical Receiver
|
Number |
Item |
Unit |
Description |
Remark |
|
Customer Interface |
||||
|
1 |
RF Connector |
|
F-female |
|
|
2 |
Optical Connector |
|
SC/APC |
|
|
3 |
Power Adapter |
|
DC2.1 |
|
|
Optical Parameter |
||||
|
4 |
Responsivity |
A/W |
≥0.9 |
|
|
5 |
Receive Optical Power |
dBm |
-18～+3 |
|
|
-10～0 |
AGC |
|||
|
6 |
Optical Return Loss |
dB |
≥45 |
|
|
7 |
Receive Wavelength |
nm |
1100～1650 |
|
|
8 |
Optical Fiber Type |
|
Single Mode |
|
|
RF Parameter |
||||
|
9 |
Frequency Range |
MHz |
45～860 |
RF |
|
950～2150 |
SAT-IF |
|||
|
10 |
Flatness |
dB |
±1 |
|
|
11 |
Output Level |
dBµV |
≥80@RF |
AGC |
|
≥78@SAT-IF |
||||
|
12 |
CNR |
dB |
≥50 |
-1dBm input power |
|
13 |
CSO |
dB |
≥65 |
|
|
14 |
CTB |
dB |
≥62 |
|
|
15 |
Return Loss |
dB |
≥14 |
|
|
16 |
AGC Stability |
dB |
±1 |
|
|
17 |
Output Impedance |
Ω |
75 |
|
|
Other Parameter |
||||
|
18 |
Power Supply |
VDC |
5 |
|
|
19 |
Power Consumption |
W |
<2 |
|
|
20 |
Dimensions |
mm |
80x45x21 |
|
