1310nm 26MW Direct Modulation CATV Fiber Optical Transmitter
With our development strategy of 'satisfying customer needs as the center, improving customer benefits as the foundation, technology as the backing, market-oriented and quality as the guarantee', we will manufacture high-quality FTTX Solution Outdoor Optical Receiver, Analog Modulator, 1X16 PLC Splitter Box With FWDM and continue to meet and exceed customer needs. Our mission is to make every product exceed your expectations, and every service has a greater improvement, and on this basis, our company will develop steadily and grow stronger. We are committed to building win-win strategic partnerships. The company is growing rapidly, purchasing equipment and expanding its scale, focusing on improving the quality and management standardization of the company. Our company has always pursued the corporate tenet of 'honesty, truth-seeking, dedicated service, and only seeking satisfaction', and we will do our best to follow customer needs and continuously carry out product innovation and service improvement.

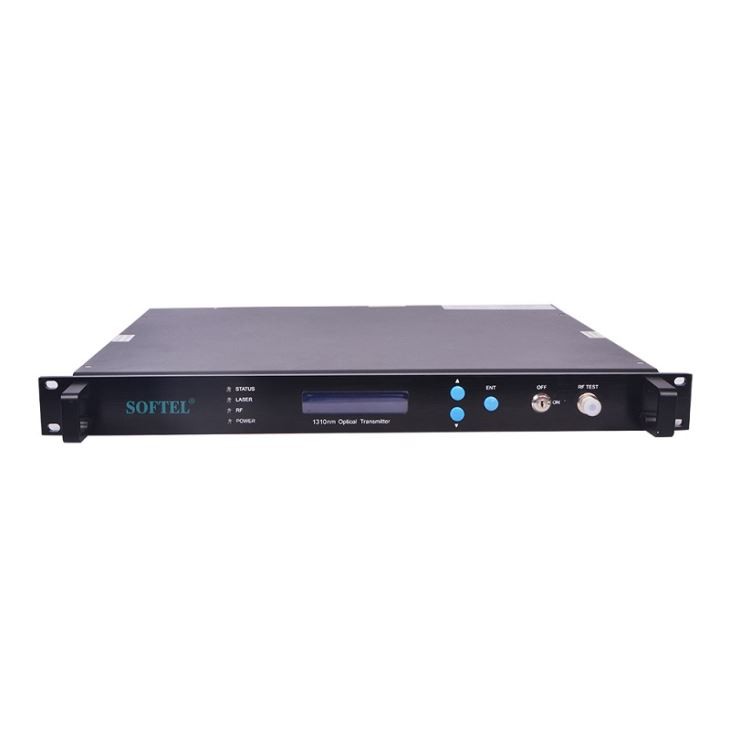

ST1300 adopts high linearity ORTOL DFB laser, build-in perfect pre-distortion adjustment circuit and laser APC,ATC closed loop control circuit. All the operating parameters are controlled by micro-processor, The LCD screen on the front panel can display relative operating status and the fault information.
Features

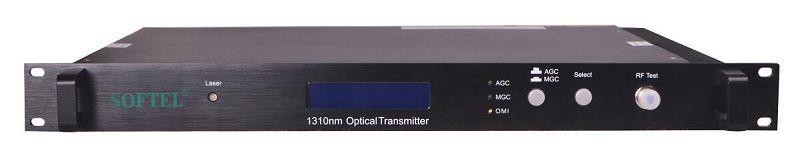

This CATV 1310nm Optical Fiber transmitter adopt the imported DFB laser named Agere (ORTEL、Lucent),Mitsubishi、Fujisu、AOI and so on.
The internal RF driving amplifier and controlling circuit of this machine can ensure the best C/N. The perfect and stable circuit of optic power output and controlling circuit of thermoelectric refrigeration device of laser module assure the user the best quality and stable working for a long time.
The internal micro-processor software has many functions such as laser monitoring, number display, trouble alarm and on-line management. Once the working parameter of the laser is out of the fixed range, there will be a red light glistening to alarm.
The RS-232 standard connector makes it is possible to manage on line and monitor in another place.
The machine adopts 19”standard shelf and it can work with the voltage from 110V to 254V.
Technical Parameters
Model（ST1310） | -2 | -4 | -6 | -8 | -10 | -12 | -14 | -16 | -18 | -20 |
Optic Power （mW） | ≥02 | ≥04 | ≥06 | ≥08 | ≥10 | ≥12 | ≥14 | ≥16 | ≥18 | ≥20 |
Optic Power （dBm） | 3.0 | 6.0 | 7.8 | 9.0 | 10.0 | 10.8 | 11.5 | 12.0 | 12.3 | 12.8 |
Optic Wavelength （nm） | 1290～1310 | |||||||||
Fiber Connector | FC/APC、SC/APC、SC/UPC (Selected by the Customer) | |||||||||
Working Bandwidth (MHz) | 47～862 | |||||||||
Channels | 59 | |||||||||
CNR （dB） | ≥51 | |||||||||
CTB （dBc） | ≥65 | |||||||||
CSO （dBc） | ≥60 | |||||||||
RF Input Level (dBμV) | Not with pre-distortion | 78±5 | ||||||||
With pre-distortion | 83±5 | |||||||||
Band Unflatness | ≤0.75 | |||||||||
Power Consumption (W) | ≤30 | |||||||||
Power Voltage (V) | 220V(110～254) | |||||||||
Working Tem (℃) | 0～45 | |||||||||
Size (mm) | 483×370×44 | |||||||||
Warranty Term
CATV 1310nm Optical Fiber transmitters are covered by ONE YEAR Limited Warranty, which starts from the initial date of your purchase. We provide its customer whole-life technical supports. If warranty is expired, repair service only charges parts (if required). In the event that a unit must be returned for service, before returning the unit, please be advised that:
1.Warranty mark pasted on the housing of unit must be in good conditions.
2.A clear and readable material describes model number, serial number and troubles should be offered.
3.Please pack the unit in its original container. If the original container is no longer available, please pack the unit in at least 3 inches of shock absorbing material.
4.Returned unit(s) must be prepaid and insured. COD and freight collect can not be acceptable.
NOTE: we do not assume responsibility for damage caused by improper packing of returned unit(s).
The following situation is not covered by warranty:
1.The unit fails to perform because of operators’ faults.
2.Warranty mark is modified, damaged and/or removed.
3.Damage caused by Force Majeure.
4.The unit has been unauthorized alteration and/or repaired.
5.Other troubles caused by operators’ faults.
Conversion of Optical Power
mW | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
dBm | 0.0 | 3.0 | 4.8 | 6.0 | 7.0 | 7.8 | 8.5 | 9.0 | 9.5 | 10.0 | 10.4 | 10.8 | 11.1 | 11.5 | 11.8 | 12.0 |
mW | 17 | 18 | 19 | 20 | 21 | 22 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
dBm | 12.3 | 12.5 | 12.8 | 13.0 | 13.2 | 13.4 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 |
We have a professional technical team to ensure the quality advantage and quick upgrade of our 1310nm 26MW Direct Modulation CATV Fiber Optical Transmitter. Our company adheres to the tenet of seeking development with sincerity and survival with quality, and is brave to innovate and provide customers with suitable solutions. We focus on our own key technologies and research, paying attention to technical details and user experience.
