Tuner to IP Gateway

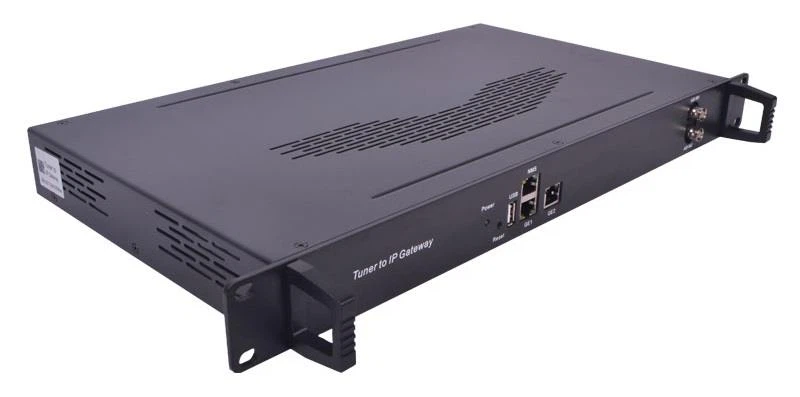

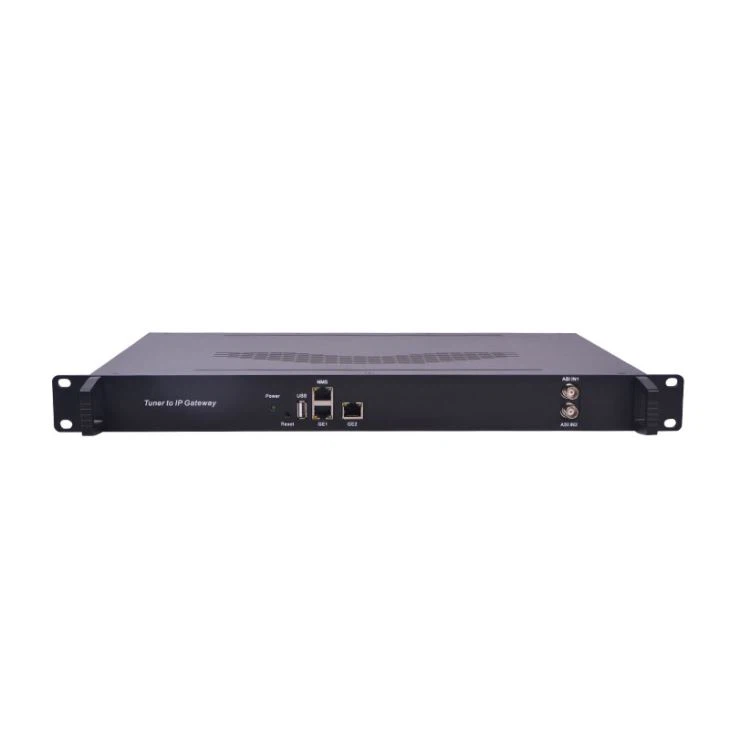

SFT3508B Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. BISS function is also embedded for tuner input to descramble your tuner input programs.
Features
It supports 16 FTA DVB- S/S2 (DVB-C/T/T2 /ISDB-T/ATSC optional )input, 2 ASI input.
It supports BISS descrambling.
It Supports DisEqc function.
16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
2 GE mirrored output (IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS
2 independent GE output port, GE1 + GE2---MPTS
It support PID filtering, re-mapping (Only for SPTS output)
It supports “Null PKT Filter” function (Only for MPTS output)
It supports Web operation.
Specifications of Tuner To IP Gateway
Input | Optional 1:16 tuners input +2 ASI input---SPTS output | |||
Tuner Section | DVB-C | Standard | J.83A(DVB-C), J.83B, J.83C | |
Frequency In | 30 MHz~1000 MHz | |||
Constellation | 16/32/64/128/256 QAM | |||
DVB-T/T2 | Frequency In | 30MHz ~999.999 MHz | ||
Bandwidth | 6/7/8 M bandwidth | |||
DVB-S/S2 | Input Frequency | 950-2150MHz | ||
Symbol rate | DVB-S: QPSK 2~45Mbauds; | |||
Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |||
Constellation | QPSK, 8PSK | |||
ISDB-T | Input Frequency | 30-1000MHz | ||
ATSC | Input Frequency | 54MHz~858MHz | ||
Bandwidth | 6M bandwidth | |||
Output | 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast | |||
16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 are different), Unicast and Multicast | ||||
BISS Descrambling | Mode 1, Mode E (Up to 850Mbps) (descramble individual program) | |||
Miscellaneous | Dimension | 482mm×410mm×44mm (W×L×H) | ||
Approx weight | 3.6kg | |||
Environment | 0~45℃(work)；-20~80℃（Storage） | |||
Power requirements | 100~240VAC, 50/60Hz | |||
Power consumption | 20W | |||
