Bidirectional IP to Asi Gigabits IP Gateway/ IP to Asi Gateway

It supports SPTSx32 output. It is also integrated with demodulation and gateway function, which can demodulate the signal from 8 tuners (ASI) into TS.

Send Inquiry

Product Introduction

We are always ready to provide customers with thoughtful Fusion Splicing Machine, Agile Modulator Catv 16, SC APC Fiber Optic Fast Connector solutions, products and services, and we can meet customer needs in a very short time. We'll initiate the second phase of our development strategy. We are a manufacturer with strong technical force, high quality and commercial reputation. Our science and technology are advancing by leaps and bounds, and our economic development is unprecedented. Our company advocates the human resource development concept of 'training excellent technical team in hard production and development, gathering first-class business elites in fierce market competition'.

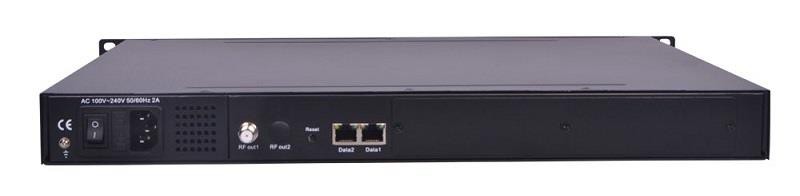

3508Tx (3508A) Tuner (ASI) to IP IPTV Gateway Series Outline Gateway is a head-end interface conversion device which is used for DVB, ASI and Ethernet. It supports SPTSx32 output. It is also integrated with demodulation and gateway function, which can demodulate the signal from 8 tuners (ASI) into TS.

Feature of IPTV Gateway

Integrated with demodulation and gateway function

Support 8 channels tuner (ASI) input and SPTSx32 output.

Support MPEG-2 and MPEG-4 TS to IP one way conversion

1 GE output(support parallel 1 Gbps data output channel)

Support maximum 8 tuner to IP converting channel, the maximum output bit-rate is 800Mbps

Support IP output, UDP protocol, unicast and multicast

Support LCD display and keyboard

Support SNMP operation

Input	8 tuner input(DVB‐S/DVB‐S2 /DVB‐T/DVB‐T2/DVB‐C/ISDB‐T optional) —3508Tx DVB‐C: 47 MHz~860 MHz, 16/32/64/128/256 QAM DVB‐S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds DVB‐S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds DVB‐T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB‐T2: 44MHz ~999 MHz, 6/7/8 M bandwidth ISDB‐T: 153 MHz ~862 MHz, 6/7/8M bandwidth
	8 ASI input --3508A
Output	1 GE output, UDP protocol, unicast and Multicast
Transmission Bit‐rate	Maximum total bit‐rate is 800Mbps
Miscellaneous	Dimension	482mm×410mm×44mm
	Approx weight	3.6kg
	Environment	0~45℃(work)；-20~80℃（Storage）
	Power requirements	100~240VAC, 50/60Hz
	Power consumption	20W

003

We adhere to the honest and pragmatic style, create value with products and services, and strive to be the leader of high-quality Bidirectional IP to Asi Gigabits IP Gateway/ IP to Asi Gateway. We have established the concept that 'market changes are the direction of the enterprise, and the needs of users are the goal of the enterprise'. We will serve the needs of users with advanced technology, quality and reputation. We continuously update management methods, improve product quality, increase production efficiency, reduce management costs, and reduce undesirable defects and losses.
