The All-In-One product is designed to provide Internet Service to subscriber’s home through the existing coaxial access network. With EPON/GPON, EOC and HFC technology , the All-In-One product meets the CATV broadcasting, VOD and Internet Service requirement of cable operators for FTTB/FTTC. It build with EPON/GPON ONU, EOC master and Optical Receiver module in one housing.

The Optical Receiver module received the optical signal from the Optical Transmitter of HFC network, and the signal processed by the PD, Amplifier, EQ and AGC to a stable RF output. The output level will be up to 108dBuv( 4*RF output) or 112dBuv (2*RF output). Ethernet data is delivered to ONU through the EPON or GPON network form the OLT.

This All In One EOC Master meets Home-plug AC standards, is designed based on Qualcomm AR7410 chip-set with high anti-jamming capability OFDM technology. It will modulate the Ethernet data into EOC RF signal in the 7.5-65MHz .The EOC signal and CATV signal (87~860MHz) can run on one coaxial cable without interference. The EOC Master can provide high speed data service at 600Mbps PHY Layer speed, the MAC Layer throughput is up to 320Mpbs.

Function Features

Standards

● Complies with EPON or GPON standards

● Complies with HomePlug AV international standards and IEEE 1901 Standard

Product Configuration

● Configurations available with 1 EPON or GPON ONU module

● Configurations available with 2 or 4 HomePlug AV EOC Master modules

● Configurations available with 1 HFC Optical Receiver

● Configuration available with WDM inside or not

● RF output configurations with 2 or 4 outputs

● Line Power (from 90 to 264 VAC) or Cable Line Power (60VAC) optional

● 35/47, 42/54, 65/87 type High/Low Filter optional to meet your network

CATV RF Features

● Supports higher RF output: 112dBuv@2*RF output, 108dBuv@4*RF output

● AGC (from -6 to 0dBm) function for stable RF output

Data Transportation in Coaxial Cable

● Supports data throughput of greater than 300 Mbps per EOC Master module

● Supports Max . link loss greater than 85 dB (40Mbps throughput in lab)

● Recommend 40~50dB link loss for about 300 throughput

Network Management

● CLI, SNMP management for ONU module

● WEB, SNMP management for EOC module

● Optical Receiver status monitor and control by PON system

Other Features

● IP67 Housing, aluminum alloy die casting shaping

● Line Power 60AC feed in and out

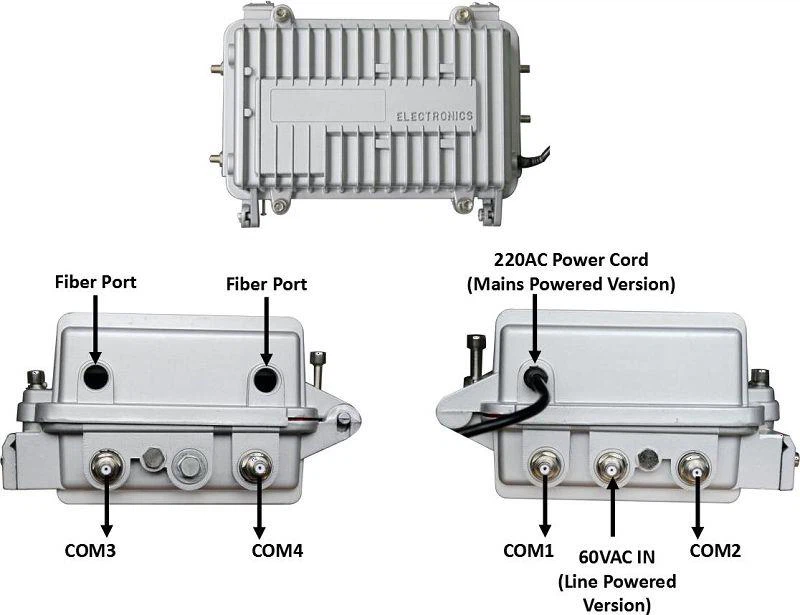

Product Pictures and Ports Overview

Specification of All In One EOC Master
