FTTH 1u 2u Outdoor Rack Mount ODF, 4 8 12 24 48 72 96 144 Port Core Fiber Optic Distribution Frame
Based on our many years of experience, not only learning the advanced level of the industry, but also through our own repeated experiments to compare and improve, we promise that our Modulators, CATV Taps, Single Channel Agile Modulator has the most reliable and stable performance. Our company has strong technical force, advanced management and a young team full of creativity and corporate cohesion. We strive to establish a mechanism for the steady growth of employees' income, and constantly meet the aspirations of employees for a better life.

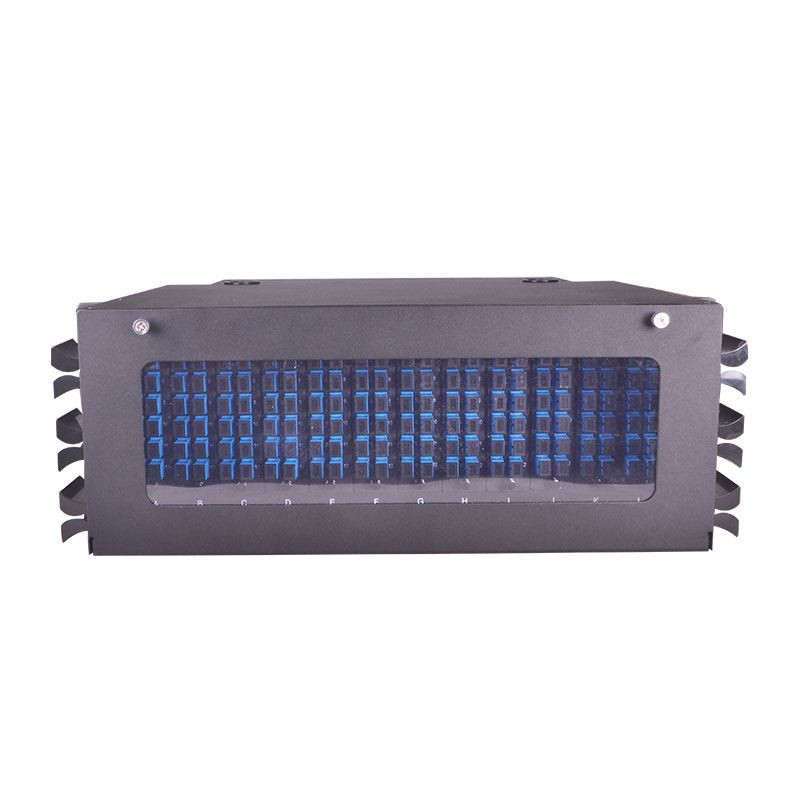

144 Port Fiber Optic ODF
144 Port Fiber Optic ODF is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage. The basic functions of ODF provided by today's vendors are almost the same. However, they come into different shapes and specifications. To choose the right ODF is not an easy thing.
Feature of 144 Port Fiber Optic ODF
1. 1.5mm steel sheet for strong housing
2. Slim 1 Unit Mounting Height
3. Ball bearing slid rails with positive stop
4. Sliding design is easy to work for patching the connectors
5. Hinged front panel is easy to be turned over & be fixed by snap-in locker
6. Front-mounted cable saddles for jumper management
7. Can manage both splices and terminations
8. Preassembled shelves in multiple configurations
9. Can includes adapter panels for up to 72 144SC terminations
10. High density splice tray contains 24 fiber maximum in one tray
11. Clear plastic cover to protect the fibers.
12. 4 fiber saddles built-in for 900um tight buffered fiber winding & storing.
13. Capable of storing up to 3 meters of 900 μm tight buffered fiber per adapter
14. Snap-in locker design, easy to change adapter panels for various connector patching
15. Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up
16. Accessory kit consists of cable ties, mounting ear screws, and spiral wrap tube
Parameters of 144 Port Fiber Optic ODF
| Model | Size(mm) | Max. Core Capacity | splice tray | Weight(kg) |
| ODF-A | 480x310x43.5 | 48 LC, 24 SC | 12, 24 | 4.8 |
| ODF-B | 480x310x43.5 | 48 LC, 24 SC | 12, 24 | 5 |
| ODF-C | 485x320x(60-180) | 192LC, 96SC | 12, 24 | / |
| ODF-D | 485x270x(43-240) | 192LC, 96SC | 12 core integrated splice tray | / |
| ODF-E | 485x310x43.5 | 72 LC, 36 SC, 24 FC | 12, 24 | 3.5 |
| ODF-F | 480x310x43.5 | 72 LC, 36 SC, 24 FC | 12, 24 | 5 |
| ODF-G 1U | 480x310x43.5 | 120LC | MPO cassette | / |
| ODF-G 4U | 480x310x17.5 | 288LC | MPO cassette, 12, 24 splice tray | / |
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
We use superb production technology, advanced testing equipment, perfect scientific management system, and fast logistics to continue to improve customer satisfaction with our FTTH 1u 2u Outdoor Rack Mount ODF, 4 8 12 24 48 72 96 144 Port Core Fiber Optic Distribution Frame. In order to improve customer satisfaction, we accurately grasp the customer needs, provide convenient purchasing channels, good after-sales service and regular customer care. So please make contact with us by sending us emails or call us when you've got any questions about our organization.
