FTTH If TV+CATV Xpon ONU/Ont

Name: China FTTH 1 GE CATV WIFI ONT Manufacturers, Suppliers - Factory Direct Wholesale - Softel
Brand: Softel
SKU: 116701425

ONT-1GE-RF-W is fiber to the home multi service access GPON ONT. It’s based on the mature, stable, high cost performance GPON technology and has gigabit Ethernet switching, WDM and HFC technology.

Send Inquiry

Product Introduction

Through the unremitting efforts of all employees, we continue to improve quality management to ensure that our FTTx Fiber Optical Receiver, SC APC Fiber Optic Fast Connector, Wdm Satellite Tv Receiver will always be a product trusted by customers. We maintain the win-win principle, and have been enhancing the quality of products through the technological innovation of products and the scientific management of companies for many years. We advocate free competition in a fair, open and just atmosphere, so that everyone has the opportunity to grow.

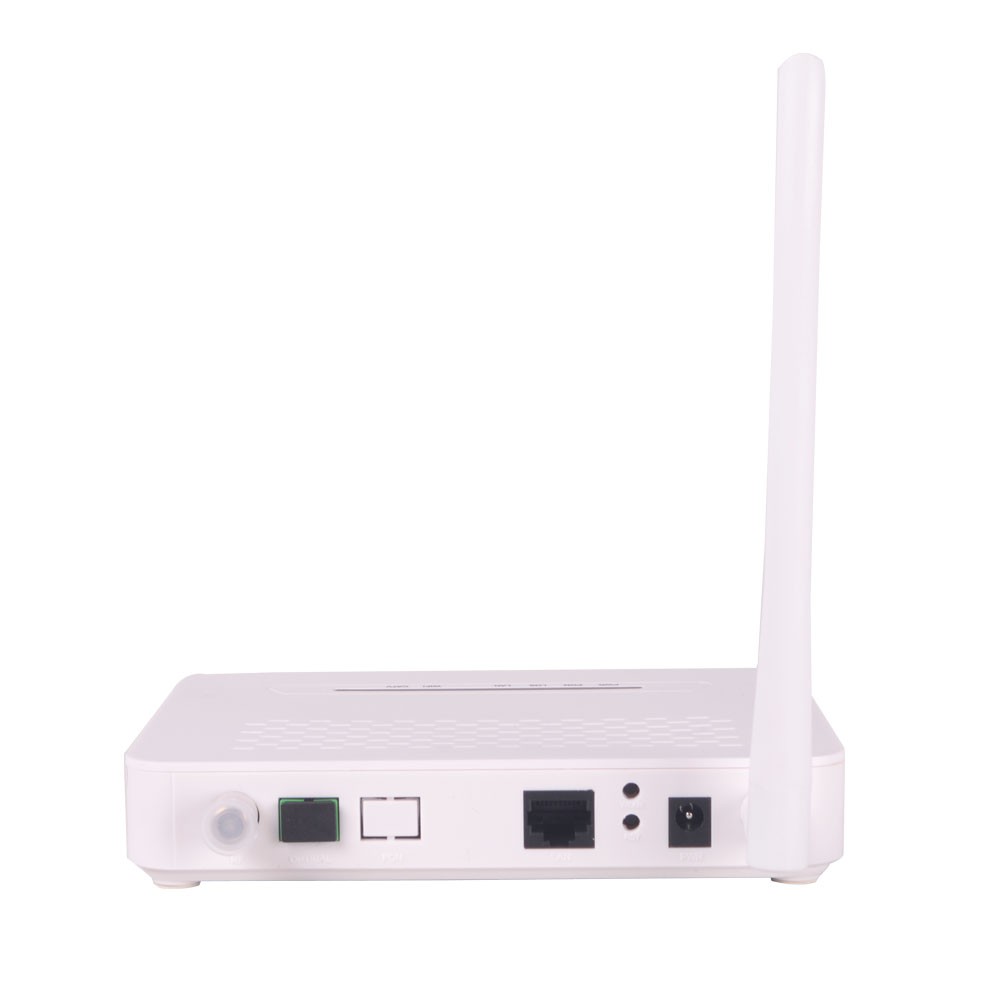

FTTH 1 GE CATV WIFI ONT

FTTH 1 GE CATV WIFI ONT is fiber to the home multi service access GPON ONT. It’s based on the mature, stable, high cost performance GPON technology and has gigabit Ethernet switching, WDM and HFC technology.

FTTH 1 GE CATV WIFI ONT Specification:

Item	Parameter
PON Interface	1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate: 2.488Gbps Upstream Data Rate: 1.244Gbps SC/APC single-mode fiber 28dB Link loss and 30KM distance with 1:128
User Ethernet Interface	auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance 1 RF output Female F-Type Connector
Power Interface	12V DC Power supply
PON Optical Parameter	Wavelength: Tx:1310nm, Rx:1490nm Tx Optical Power: 0~5dBm Rx Sensitivity: -27dBm Saturation Optical Power: -8dBm Connector Type: SC Optical Fiber: 9/125μm single-mode fiber
Data Transmission Parameter	PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s Ethernet: 1000Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms
Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support loop detection
Network Management	Support IEEE802.3 QAM, ONU can be remotely managed by OLT Standard compliant OMCI interface as defined by ITU-T G.984.4 Support WEB management
Management Function	Status monitor, Configuration management, Alarm management, Log management
Shell	Plastic casing
Power	<5W, 12V/0.5A power supply adapter
Physical Specifications	Item Dimension:160mm(L) x120mm(W) x 32mm (H) Item weight:0.3kg
Environmental Specifications	Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 10% to 90%(Non-condensing)

Contact us：

Aurora Zhu

Email:softel11@softel-optic.com

Tel/Whatapp:+86 1535509017

Our business aims to operating faithfully, serving to all of our clients, and working in new technology and new machine continuously for FTTH If TV+CATV Xpon ONU/Ont. In the future development process, we will continue to pursue excellent quality, sincerely serve customers and always guide the trend of the industry. To provide customers with excellent equipment and services, and constantly develop new machine is our company's business objectives.
