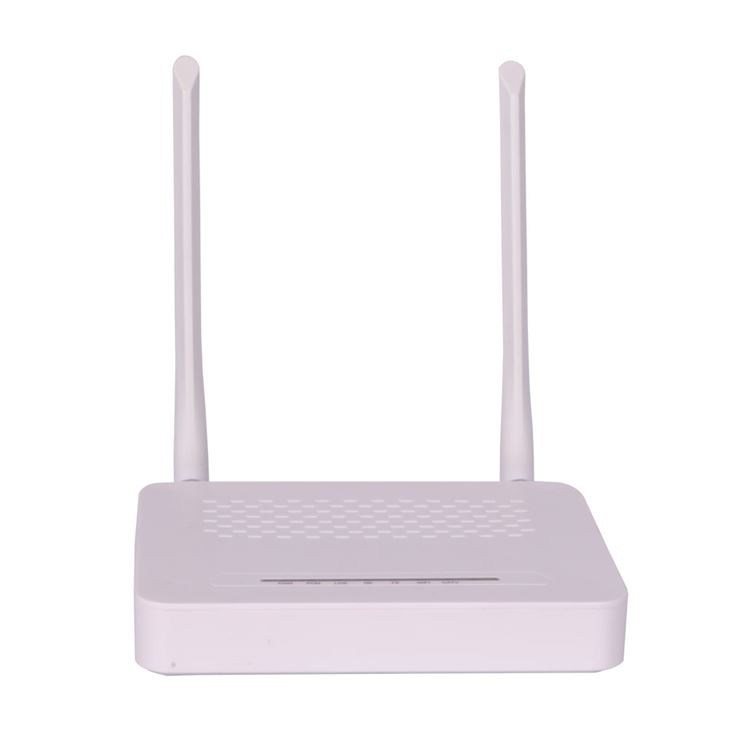

Gpon ONU Modem Fiber Optic 1ge+1fe+WiFi+CATV English Version ONU Ont
The continued growth in sales of our 1X8 Fiber Optic PLC Splitter, DVB-T Encoder Modulator, 48 Port ODF Patch Panel shows that we have excellent capabilities in developing new products and quickly responding to customer needs. In the future, we will focus on strengthening the ability of rapid response to the market, quality assurance, cost control and system development. We will continue to strengthen extensive cooperation with world-leading companies and continue to unswervingly promote our business globalization. The company pays great attention to the combination of after-sales service, technical service and business. Adhering to the consistent professionalism and quality, we are market-oriented and technology-oriented, as always, to provide high-quality products and services to new and old customers.

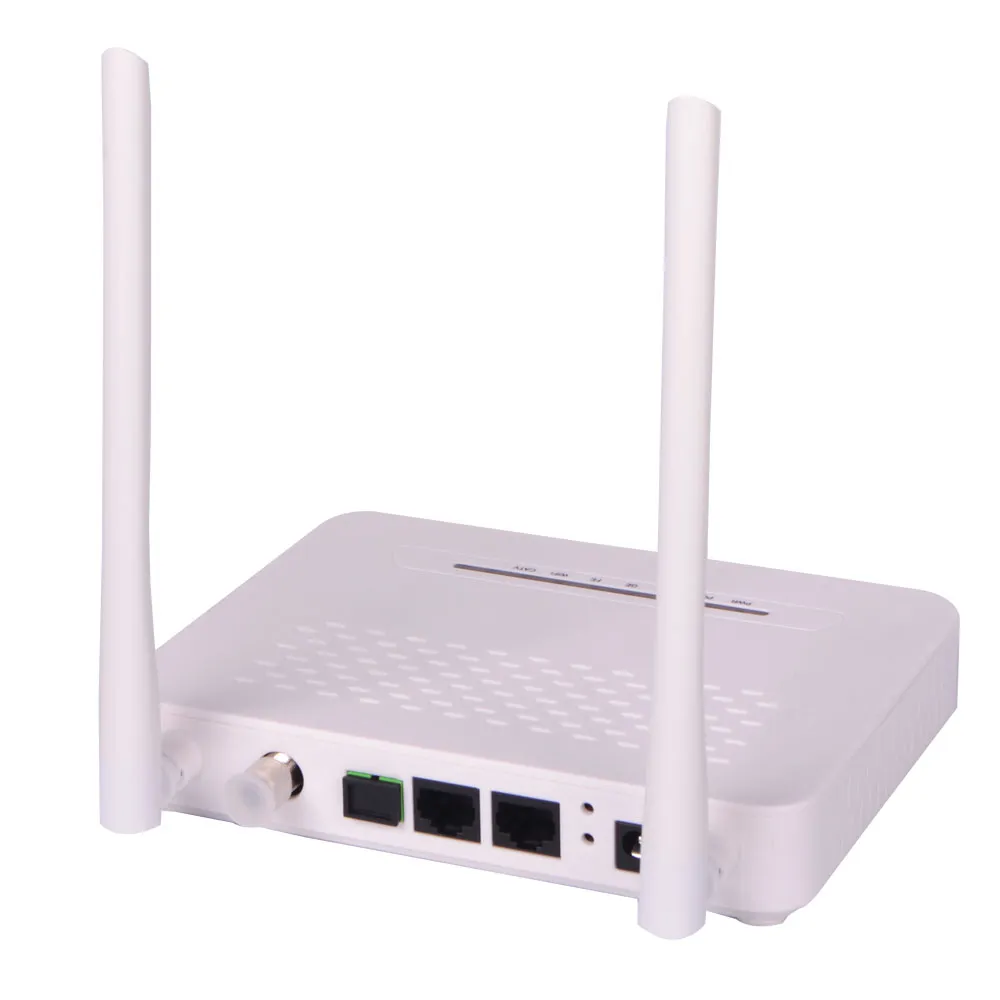

Dual mode 1GE 1FE CATV ONT
ONT-1FE-1GE-RF-W has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee.It can provide users with more efficient data transmission security.
Item | Parameter | |
Interface |
PON Interface | GPON/EPON mode adaptive 1*GPON port, FSAN G.984.2 standard, support for backward compatibility with EPON SC/PC single mode fiber |
CATV Interface | 1 RF output F-Type Connector | |
Ethernet Interface | 1*10/100/1000M and 1*10/100M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance | |
Power Interface | 12V DC Power supply | |
Performance Parameters |
PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5~5dBm Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm |
Data Transmission Parameter | PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s Ethernet: 1000Mbps and 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms | |
Network Management |
Management Mode | When adaptive to GPON mode, support standard compliant OMCI interface as defined by ITU-T G.984.4, TR069 remote management and WEB management |
When adaptive to EPON mode, Support IEEE802.3 QAM, ONU can be remotely managed by OLT, TR069 remote management and WEB management | ||
Management Function | Status monitor, Configuration management, Alarm management, Log management | |
Physical Features | Shell | White plastic casing |
Power | Power supply: DC 12V /0.6A Power consumption: <5W | |
Physical Specifications | Item Dimension:160mm(L)*139.5mm(W)*28.5mm(H) Item weight:0.35kg | |
Environmental Specifications | Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 10% to 90%(Non-condensing) |
Contact us：
Aurora Zhu
Email:softel11@softel-optic.com
Tel/Whatapp:+86 1535509017
Our company always leads the trend with first-class quality, and makes unremitting efforts to build the first brand of Gpon ONU Modem Fiber Optic 1ge+1fe+WiFi+CATV English Version ONU Ont. We are looking forward to receiving your inquires and establishing a fruitful business relationship with you. Since its establishment, our company has been developing and growing. Our growth and transformation come from the power of continuous innovation.
