Digital Headend Turner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable
Send Inquiry
Product Introduction

Through continuous focus and innovation in the Cable TV Optical Node, Single Channel Agile Modulator, Passive Optical Node field, our company continuously improves organizational capabilities, thereby creating greater value for customers. We have clear rewards and punishments and at the same time, we will realize the double love management of every employee's work and life and our team will grow healthily with our enterprise. We are very proud of the good reputation from our customers for our products' reliable quality. Performance orientation is the direction of our growth and the strong support of our business development.

Digital Headend Turner to IP Gateway

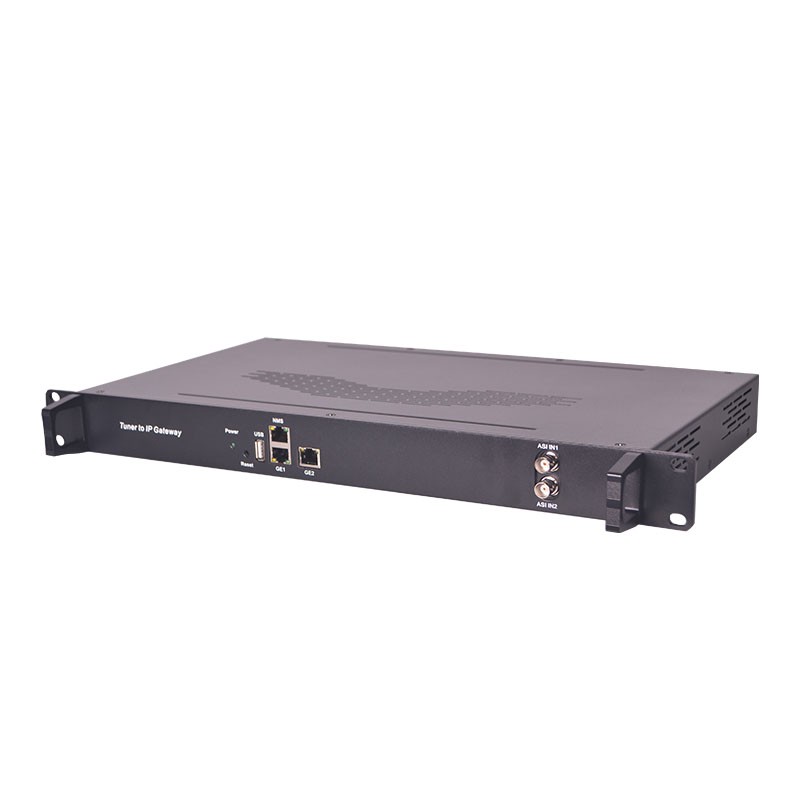

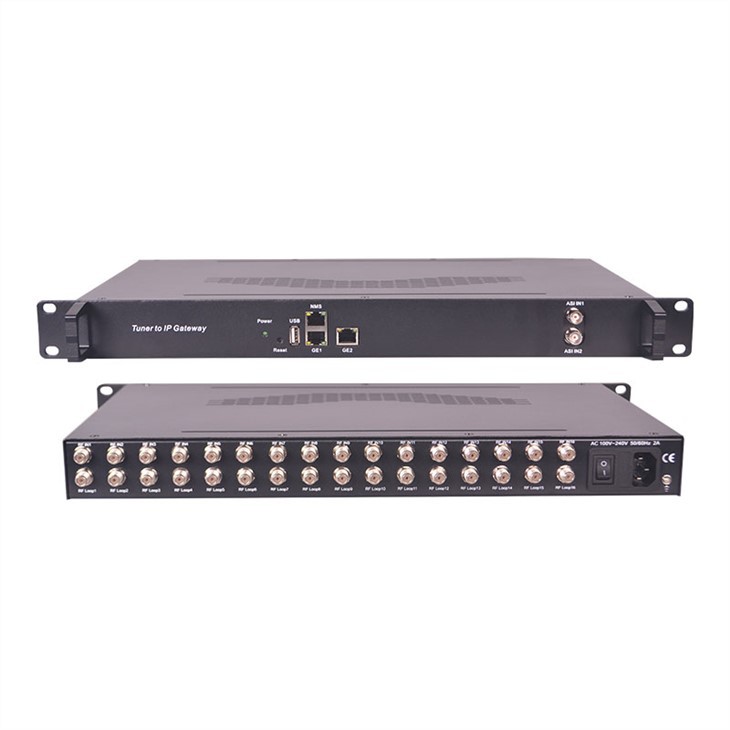

Tuner to IP Gateway-1Tuner to IP Gateway-4Tuner to IP Gateway-6

Features of Tuner to IP Gateway


Support 16 FTA DVB- S/S2 (DVB-C/T/T2 /ISDB-T/ATSC optional )input, 2 ASI input

Support BISS descrambling

Support DisEqc function

16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)

2 GE mirrored output (IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS

2 independent GE output port, GE1 + GE2---MPTS

Support PID filtering, re-mapping (Only for SPTS output)

Support “Null PKT Filter” function (Only for MPTS output)

Support Web operation

Specifications Tuner to IP Gateway

Symbol rateISDB-T

Input

Optional 1:16 tuners input +2 ASI input---SPTS output

Optional 2:14 tuners input +2 ASI input --- MPTS output

Optional 3:16 tuners input --- MPTS output

Tuner Section

DVB-C

Standard

J.83A(DVB-C), J.83B, J.83C

Frequency In30 MHz~1000 MHz
Constellation16/32/64/128/256 QAM

DVB-T/T2

Frequency In

30MHz ~999.999 MHz
Bandwidth6/7/8 M bandwidth

DVB-S/S2

Input Frequency

950-2150MHz

DVB-S: QPSK 2~45Mbauds;

DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds


Code rate1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
ConstellationQPSK, 8PSK

Input Frequency

30-1000MHz

ATSC

Input Frequency

54MHz~858MHz
Bandwidth6M bandwidth

Output

512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast

16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 are different), Unicast and Multicast

BISS Descrambling

Mode 1, Mode E (Up to 850Mbps) (descramble individual program)

Miscellaneous

Dimension

482mm×410mm×44mm (W×L×H)

Approx weight

3.6kg

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

100~240VAC, 50/60Hz

Power consumption

20W


002

003-1


Company introduction and certificate


We have more than 100 staff, 10% of them are senior technicians. With more than 1,000 square meters standards production assembling lines, we have strict QC procedures. Each unit of our product will go through 3 layer QC procedures, material checking before production, stabililty and performance testing after production, packing detection before delivery.


Most of our products are exported to South America, Russia, and North European countries. Currently, Softel has its branch office in Mexico and will launch another office in Colombia, continuing supplying for numerous agents, integrated dealers, and equipment producers all over the world.


Through keen international business competition in good faith, all of our staff members feel a big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, and competitive products.


certificate

Shipping


1, Fedex/DHL/UPS/TNT for samples, door to door.

2, By air or by sea for bulk goods, for FCL; Air port/port receiving

3, Customers specifying freight forwarders or negotiable shipping method

4, Delivery time: 1-3 days for samples; 10-30 day for bulk goods


FAQ


1. What are the payment terms that you support?

Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.


2. What about the lead time?

Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.


3. How about the shipping?

When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.


4. How can I place an order?

(1) Negotiation is agreed upon for the product price and specifications.

(2) The Proforma invoice will be sent for confirmation.

(3) After the agreement on the proforma invoice, the customer makes the deposit.

(4) Manufacturing will be started as soon as the payment is confirmed by our bank.

(5) Ship out the goods within the agreed delivery deadline.


5. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.


6. How about the Warranty?

There are 12 months for the warranty.

While the warranty is not responsible for those broken by violence or updated with other brands.
