Outdoor Modular Optical Workstation(WR1002JL-CEAM)
We are vigorous and ambitious with a worldwide vision. With talented people, first class management, high quality products and feasible business model, our company leads the 1550nm Mini Transmitter, DVB-T Modulator, CATV FTTH OE Converter industry. We have rigorous industrial design concepts and perfect manufacturing style. We're eagerly waiting for your sincerely cooperation. We practice the tenet of customer-centered and serve customers wholeheartedly.
Outdoor Modular Optical Node SR812S is our new CATV network optical receiver with great quality and competitive prices.
Performance Characteristics
High response PIN photoelectric conversion tube.
Optimized circuit design, SMT process production, optimized signal path, make the photoelectric signal transmission more smooth.
Specialized RF attenuation chip, good RF attenuation and equilibrium linear, high accuracy.
GaAs amplifier device, power double output, high gain and low distortion.
Microprocessor control working status, digital display the parameters, convenience and intuitive operation, and stable performance.
Excellent AGC performance, when the input optical power range is －8～＋2dBm, the output level keep unchanged, CTB and CSO basically unchanged.
Technique Parameters
Item | Unit | Outdoor Modular Optical Node | |
Optical Parameters | |||
Receiving Optical Power | dBm | -8 ~ +2 | |
Optical Return Loss | dB | >45 | |
Optical Receiving Wavelength | nm | 1100 ~ 1600 | |
Optical Connector Type | FC/APC, SC/APC or specified by the user | ||
Fiber Type | Single Mode | ||
Link Performance | |||
C/N | dB | ≥ 51（-2dBm input） | |
C/CTB | dB | ≥ 65 | Output Level 106 dBμV Balanced 6dB |
C/CSO | dB | ≥ 60 | |
RF Parameters | |||
Frequency Range | MHz | 45 ~862 | |
Flatness in Band | dB | ±0.75 | |
Rated Output Level | dBμV | ≥ 106 | |
Max Output Level | dBμV | ≥ 110 | |
Output Return Loss | dB | ≥14 | |
Output Impedance | Ω | 75 | |
Electronic Control EQ Range | dB | 0～10 | |
Electronic Control ATT Range | dBμV | 0～20 | |
General Performance | |||
Supply Voltage | V | AC（130~265）V or AC(35~85)V | |
| Operating Temperature | ℃ | -40~60 |
Relative Humidity | % | Max 95% no condensation |
Consumption | VA | ≤ 15 |
Dimension | mm | 185（L）╳ 140（W）╳ 91（H） |

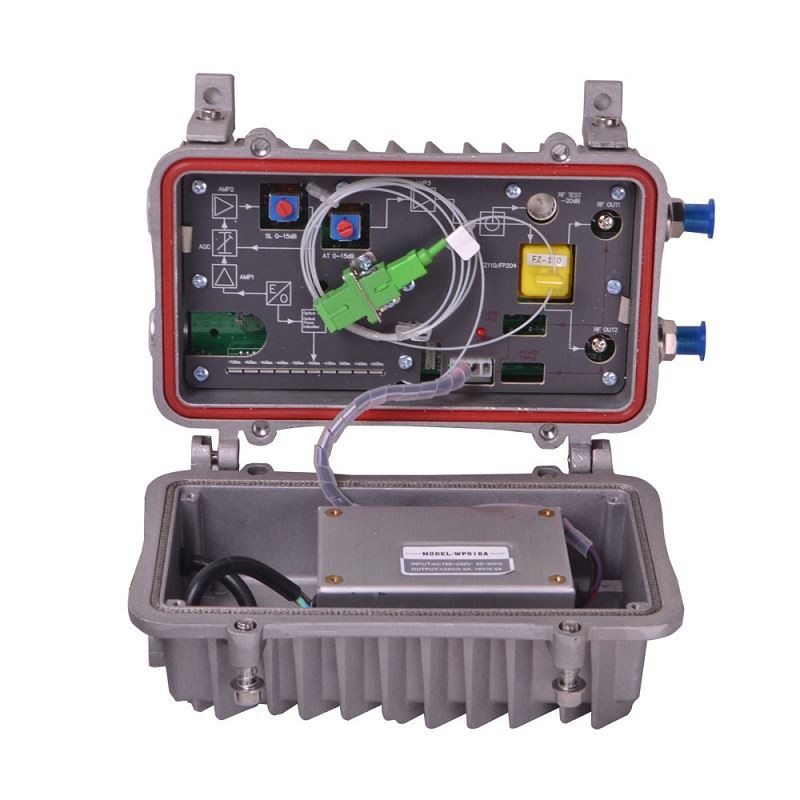

Structure Diagram of Outdoor Modular Optical Node
1. Optical fiber input | 2. Optical fiber adapter |
3. -20dB RF test port | 4. Output tap or splitter |
5. RF output 1 | 6. RF output 2 |
7. Mode selection button | 8. UP button |
9. DOWN button | 10. Electronic control EQ mode indicator |
11. Electronic control ATT mode indicator | 12. Optical power mode indicator |
13. Mainboard power interface | 14. Power supply over-current inserter 1 |
15. Power supply over-current inserter 2 | 16. Switching power supply |
