RCA X 2 in Asi out MPEG-2 Digital TV Headend Equipment CATV Encoder
Every Catv 1310nm Optical Transmitter, Wavelength Division Multiplexing, Dual Mode 1GE 1FE CATV ONT of our company is unique and scarce worldwide. We provide users with products that others can't satisfy. Development means to continuously break through the bottleneck and cross the peak with continuous execution, so as to achieve the healthy and rapid growth of the company and individuals. Our company holds the banner of revitalizing the industry, and works together with friends from all walks of life on the road of high and new technology to forge ahead, we develop together and create a better tomorrow. We develops, manufactures, and sells premium products for a broad range of customers around the world. Contact us today to learn more about the benefits of partnering with us and how we can work together!

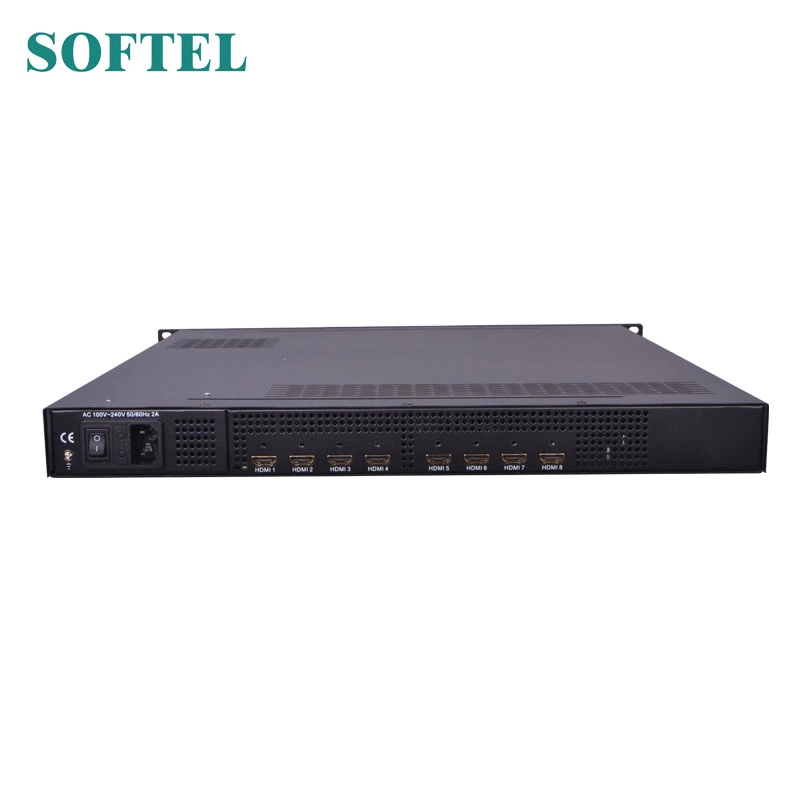

DVB-T encoder modulator
DVB-T encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulation. DVB-T encoder modulator supports 4/8/12 HDMI input, one DVB-C tuner input and 128 IP input with Data1 (GE) and Data2 (FE) port. It also supports DVB-C/T RF out with 4 adjacent carries, and support Data1 (GE) output port to support 4 MPTS out. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
FEATURES of DVB-T encoder modulator
Support QR code, LOGO, OSD insertion for every local channel
4/8/12 HDMI input, MPEG-4 AVC/H.264 Video encoding
1DVB-C tuner input for re-mux (only for DVB-C RF out)
128 IP input over UDP and RTP protocol
MPEG1 Layer II Audio encoding and support audio gain adjustment
4 groups of multiplexing/scrambling/modulation output channels
Support 4 MPTS IP (DATA1 port only) output over UDP and RTP
Support PID remapping/accurate PCR adjusting/PSI/SI editing and inserting
Control via web management, and easy updates via web
Lowest cost per channel, breakthrough price
Specification of IP to DVB-T modulator
Input | 4/8/12 HDMI inputs for option 1 DVB-C Tuner input for remux, F type interface (only for DVB-C RF out) 128 IP input over UDP and RTP | ||
Video | Encoding | MPEG-4 AVC/H.264 | |
Resolution | In-put | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | |
| Out-put | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, | ||
Bit-rate | 1Mbps~13Mbps each channel | ||
Rate Control | CBR/VBR | ||
Audio | Encoding | MPEG-1 Layer 2 | |
Sampling rate | 48KHz | ||
Resolution | 24-bit | ||
audio Gain | 0-255 Adjustable | ||
Bit-rate | 64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps | ||
Multiplexing | Maximum PID Remapping | 180 input per channel | |
Function | PID remapping ( automatically or manually) | ||
| Accurate PCR adjusting | |||
| Generate PSI/ SI table automatically | |||
Scrambling | Maximum simulcrypt CA | 4 | |
Standard | ETR289, ETSI 101 197, ETSI 103 197 | ||
Connection | Local/remote connection | ||
Modulation | DVB-C | RF out | 4*RF DVB-C out (4 carriers combined output) |
| Standard | EN300 429/ITU-T J.83A/B | ||
| MER | ≥40db | ||
| RF frequency | 50~960MHz, 1KHz step | ||
| RF output level | -25~-1dBm (82~105 dbµV), 0.1dBm | ||
| Symbol Rate | 5.0Msps~7.0Msps, 1ksps stepping | ||
DVB-T | Standard | EN300744 | |
| FFT mode | 2K, | ||
| Bandwidth | 6M, 7M, 8M | ||
| Constellation | QPSK, 16QAM, 64QAM | ||
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| MER | ≥42 dB | ||
| RF frequency | 50~960MHz, 1KHz step | ||
| RF out | 4*RF COFDM DVB-T out (4 carriers combined output) | ||
| RF output level | -28~ -3 dBm (77~97 dbµV), 0.1db step | ||
Stream output | RF output (F type interface) | ||
| 4 IP MPTS output over UDP/RTP, 1*1000M Base-T Ethernet interface (Data1 only) | |||
System function | Network management(WEB) | ||
| Chinese and English language | |||
| Ethernet software upgrade | |||
Miscellaneous | Dimension(W×L×H) | 482mm×410mm×44mm | |
Environment | 0~45℃(work);-20~80℃(Storage) | ||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ±10%,50/60Hz | ||

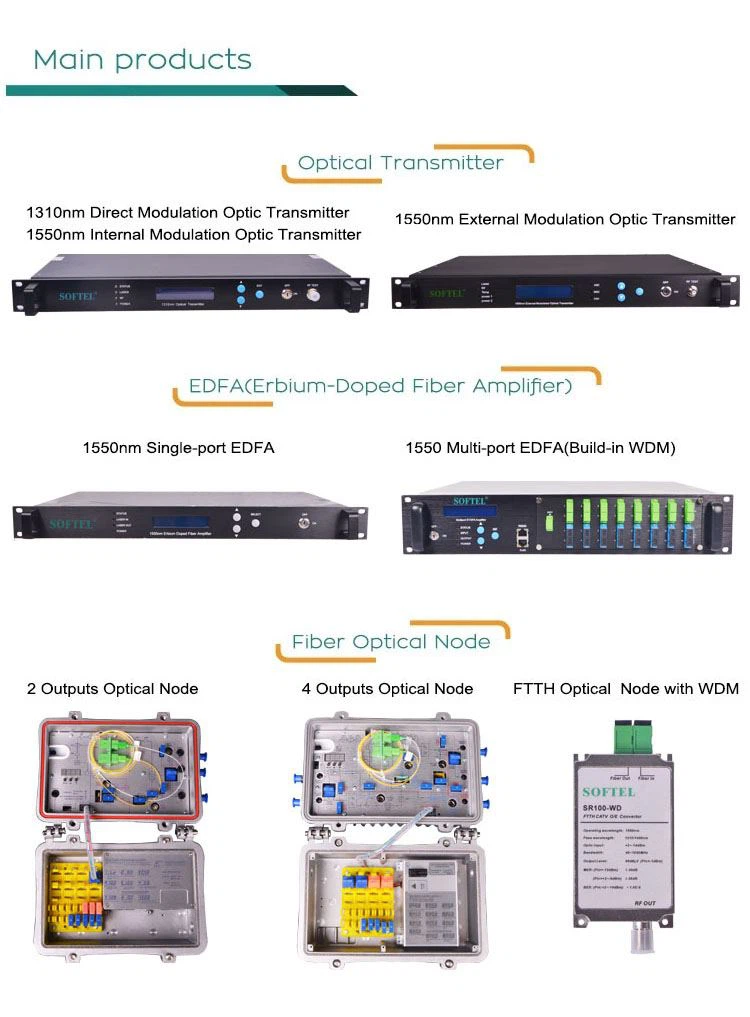

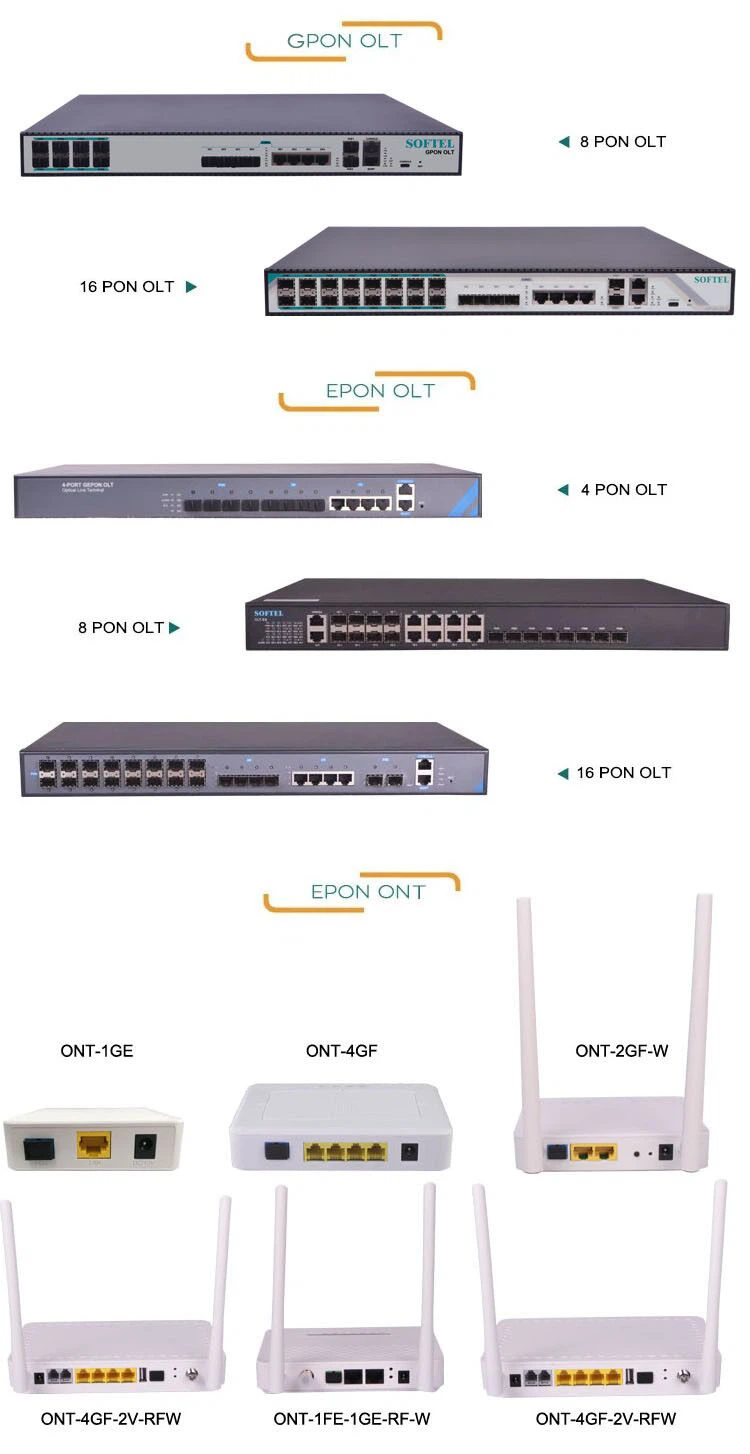

Other products
Company introduction and certificate
We have more than 100 staff, 10% of them are senior technicians. With more than 1,000 square meters standards production assembling lines, we have strict QC procedures. Each unit of our product will go through 3 layer QC procedures, material checking before production, stabililty and performance testing after production, packing detection before delivery.
Most of our products are exported to South America, Russia, and North European countries. Currently, Softel has its branch office in Mexico and will launch another office in Colombia, continuing supplying for numerous agents, integrated dealers, and equipment producers all over the world.
Through keen international business competition in good faith, all of our staff members feel a big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, and competitive products.
Shipping
1, Fedex/DHL/UPS/TNT for samples, door to door.
2, By air or by sea for bulk goods, for FCL; Air port/port receiving
3, Customers specifying freight forwarders or negotiable shipping method
4, Delivery time: 1-3 days for samples; 10-30 day for bulk goods
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
We provide users with a variety of high-end RCA X 2 in Asi out MPEG-2 Digital TV Headend Equipment CATV Encoder and services with the spirit of integrity, rigor, truth-seeking and innovation. We build our brand with good corporate reputation, pragmatic dedication and rigorous work attitude. With a variety of standard products, we are confident to meet the needs of customers while maintaining cost competitiveness.
