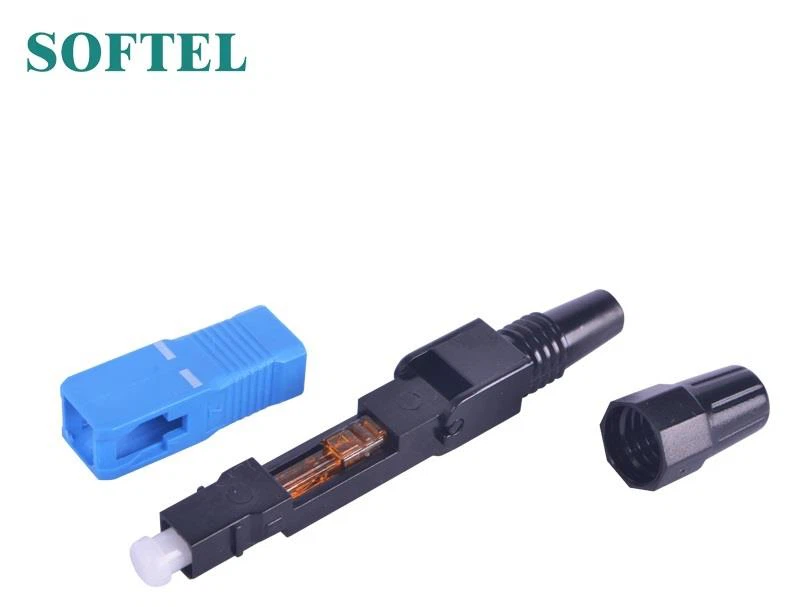

Fast Connector SC UPC
Fast connector adopts the latest fiber formed technology. It changes the traditional splice opinion and offers the powerful support for FTTX.
Features of Fast Connector SC UPC
It is of low cost, high reliability and low environmental sensitivity.
It is ease to use.
Parameter
Item | Fast Connector SC UPC | |
Fiber Scope | 0.9mm tight buffer | |
Size | 43.5 mm | |
Fiber Diameter | 125μm ( 652 & 657 ) | |
Coating Diameter | 250μm | |
Mode | SM | |
Operation Time | about 60s(exclude fiber presetting) | |
Insertion Loss | ≤ 0.2dB(1310nm & 1550nm) | |
Return Loss | ≤ -50dB | |
Success Rate | >98% | |
Reusable Times | unlimited | |
Tighten Strength of Naked Fiber | >5 N | |
Tensile Strength | >40 N | |
Temperature | -40 ~ +85 C | |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB | |
Mechanical Durability(500 times) | IL ≤ 0.3dB | |
Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB | |
FAQ
1. What are the payment terms?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is the most convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How can I place an order?
(1) Negotiation should be agreed upon the prices and specifications of the products.
(2) Then a proforma invoice will be sent for confirmation.
(3) The deposit can be made according to the proforma invoice.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Goods will be sent out within the agreed delivery deadline. And tracking number will be informed.
We can easily supply you with almost every type of product or service connected to our item variety for Sc APC Quick Assembly Connector Sc Upc Fast Connector. Our company has established a marketing system and a marketing organizational structure guided by the market and customers. We actively promote the implementation of corporate culture and inject strong impetus into the innovation and development of enterprises.
