32 in 1 Analog modulator
Product Description
This 32 in 1 Analog Modulator is our new arraival, has high quality and vey popular in the marcket. It
help cable network operators convert baseband audio and video signals into network-ready RF output signals.
This 32 in 1 Analog Modulator has 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or NTSC or SECAM TV programs (SECAM is under development)

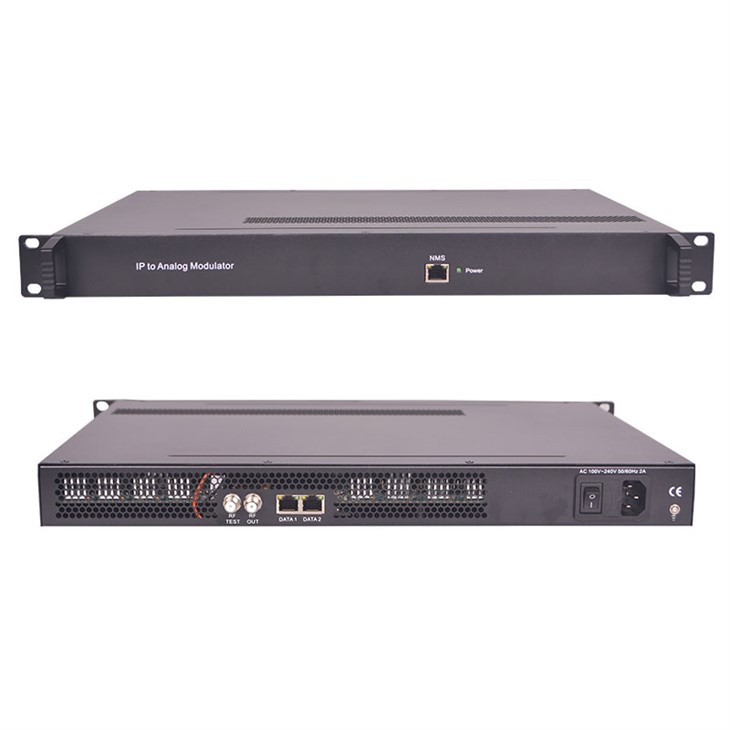

Detail Images
Key Features
● 2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input
● Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation
● Processing of up to 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or NTSC or SECAM TV programs (SECAM is under development)
● 32 non-adjacent and adjacent carriers output within 400MHz
● high density
● Support Web-based Network management
Specificaiton of 32 in 1 Analog modulator
Modulation Parameters | Number of channels | up to 32 |
Connectors | 75Ω, F-jack | |
Frequency range | 47 – 862MHz, digital modulation process | |
Output Bandwidth | 400MHz | |
Output level | maximum 112dBμV | |
Return loss | ≥ 14dB | |
Spurious frequency dist. | ≥ 60dB | |
Stereo cross talk | > 55dB | |
Residual carrier accuracy | 1% | |
TV standard | PAL B/G/D/K/M/N, NTSC M/J/4.43, SECAM (under development) | |
Video-signal to noise ratio | ≥ 60dB | |
Network Interface | Management | 1 x 100 Base-T Ethernet (RJ 45) |
Data | 2 x 1000 Base-T Ethernet (RJ 45) | |
Protocol | IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP, HTTP, IGMPv2/v3 | |
Others | Image resolution | up to 1080i |
CNR | 60 dB (after internal combining) | |
SNR | > 53 dB (after internal combining) | |
Sampling frequency | 48, 44.1, 32 | |
Output volume adjustment | 0 - 100 % | |
General | Demission | 420mm×440mm×44.5mm (WxLxH) |
Temperature | 0~45℃(operation), -20~80℃(storage) | |
Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz |
Company Profile
FAQ
Lead Time
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
About Shipping
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
OEM Service
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
Warranty Item
32 in 1 analog modulator has 2 YEAR Limited Warranty, we provide its customer whole-life free technical supports. If warranty is expired, repair service only charges parts (if required).
The warranty is not responsible for those broken by violence or updated with other brands.
NOTE: we do not assume responsibility for damage caused by improper packing of returned unit(s).
