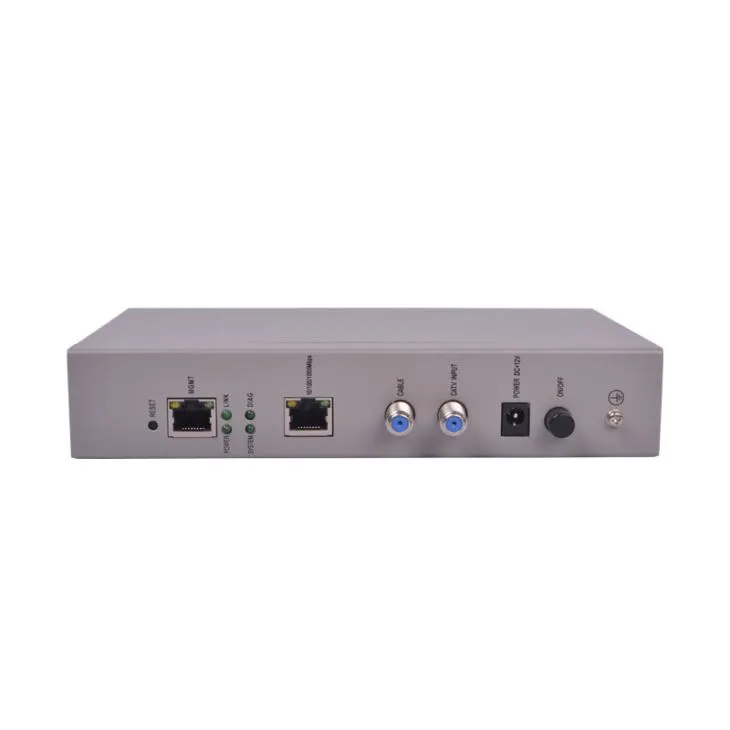

Smart Eoc Master (Indoor used)

This products adopt metal shell, built-in power supply, satisfy the corridor environment requirements, and has the anti lightning, anti dust, good heat dissipation characteristics.

Send Inquiry

Product Introduction

With the technology innovation and constant commitment to our customers, we are confident to be your first choice of professional Lan Cable Cat6, Coax CATV Attenuator, Outdoor Modular Optical Node. We focus on customer experience, listen to customers' voices, and recognize their true needs. We take one-to-one service to our customers, and tailor-make the product equipment and the whole set of solutions for each customer to suit your needs.

The EOC master is usual placed in cabinet or corridor, basement or patio. This Indoor EOC master products adopt metal shell, built-in power supply, satisfy the corridor environment requirements, and has the anti lightning, anti dust, good heat dissipation characteristics.

Indoor Eoc Master

Features

● HomePlug AV or IEEE1901 standard

● AR7410 chipset, MSE500 chipset

● Works on low frequency band, no influence on CATV Service

● High throughout，MACLayer throughput up to300Mbps

● Support bi-direction data encryption

● Support broadcast storm limitation

● Support data packet statistics

● Support auto-update and auto-configuration

● Support WEB、CLI、SNMP based network management

● Support On-line upgrading

● Aluminum alloy die casting shaping, good heat dissipation

Specification of Indoor Eoc Master

Item	Parameters	7201	4201
Chipset		AR7410	MSE500
Interface and LED Indicator	RF Port	One EOC signals RF Output, Female F-TYPE or SMB Connector
	Ethernet Port	Two10/100/1000M Auto-negotiation RJ45 ports, configurable to Two-Lan or Lan+WAN based on customer requirement
	Power supply Port	12V DC input With 12V 1A AC/DC adapter AC input
	LED Indicator	1 for Power Supply Status 1 for CABLE Link Status indicator 2 for Ethernet Ports Status
Performance Parameters	RF Parameters	Frequency Band: 7.5-65MHz RF Output Level: 110±5dBuv Receive sensitivity: 45dBuv Return Loss: >16dB Output Resistance: 75Ω	Frequency Band 2-70MHz RF Output Level: 120dBuv Receive sensitivity: 45dBuv Return Loss: >16dB Output Resistance: 75Ω

	Transmission	PHY Layer:600Mbps Throughput on MAC Layer:320Mbps	PHY Layer:500Mbps Throughput on MAC Layer:300Mbps
	Modulation Mode	OFDM– 2690-carriers 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO	OFDM－2732Carriers 4096/1024/256/64/16/8-QAM,QPSK, BPSK
	Working Mode	TDMA/CSMA	DMA、CSMA/CA
	Encryption Mode	AES-128
Standard	EOC Standard	IEEE P1901(Draft) HomePlug AV
	Ethernet Standard	IEEE 802.3, IEEE 802.3x, IEEE 802.3u IEEE802.1P, IEEE802.1Q
Software	Network Management	WEB, CLI, SNMP
	Software Features	VLAN, QOS, Bandwidth Control, Broadcast storm limitation
Physical Features	Power supply & Consumption	12VDC/1A Consumption: <8W
	Size & Net weight	Dimension: 202×123×38mm Weight: 1kg
	Environment Attribute	Working Temperature: －10～65℃ Storage Temperature：-40～85℃ Working humidity: 10%～90%non-condensing Storage humidity: 10%～90% non-condensing
