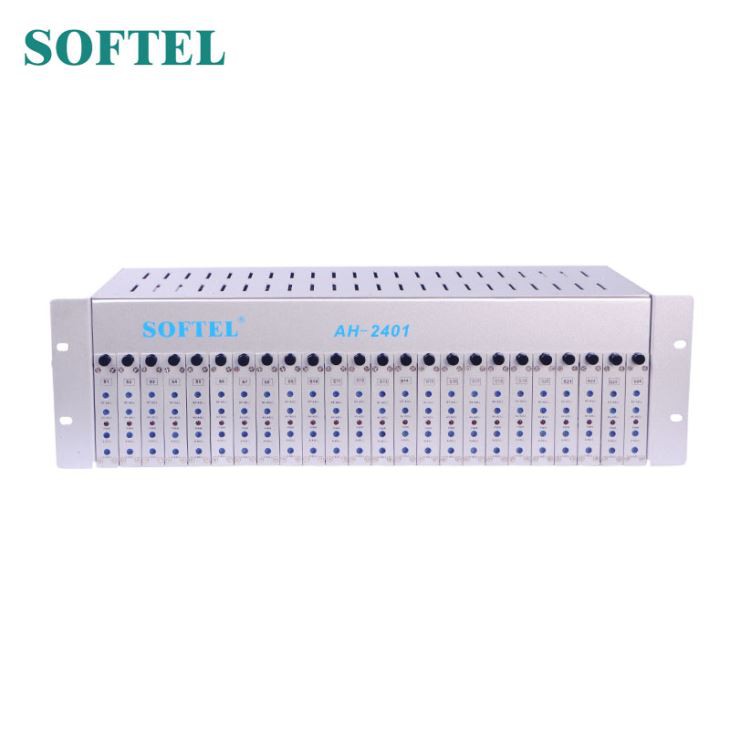

The AH2401 is a 3RU rack mounted chassis that allows for installation of up to 24 pieces microprocessor-controlled fixed mini-modulators. 40dBmV chassis output level,no need extra combiner.
Features
1. Switching power supply for installation flexibility and precise voltage regulation
2. Two cooling fans for long life performance of this 24 in 1 CATV analog modulator
3. Stereo function optional
4. SAW(surface acoustic wave) filtering on IF for superior in band C/N
5. Front panel access controls enables easy setup
6. Rear panel has a combiner loop for easy connection
Specifications
Frequency range | 47~860MHz |
Output level | >=100dBmV |
C/N in-band | 60dB |
C/N out-band | 62dB |
Video input connector | RCA (Yellow) |
Audio input connector | RCA (White) |
RF output connector | 75Ω F-Female |
Voltage input | DC 5V for mini modulator |
Output Frequency | 47-860MHz |
Output Level | 97dBμV(Adj.) |
A/V Ratio | -11 to -18dB(Adj. |
Frequency Stability | ±5KHz |
Video | 75ΩF-female |
Input Level | 0.6-1.5Vp-p(87.5% Modulation) |
Video C/N | 50dB |
Hum/Noise | -50dB |
Modulation Range | 0~90% |
Audio | 75ΩF-female |
Input Level | 1Vp-p(25KHz Dev.) |
Distortion | 1% |
QUICK INSTALLAION
AH2401M, 24 in 1 CATV analog modulator, is designed for indoor 19'' rack. Make sure a space is left between modulators for air circulation. To prevent electric shock, never remove the ground pin. Insure that electrical input cables entering the building be connected to the building ground as close to the entry point as possible.
1.Feed in the Audio and Video connectors before turn on the power
2.Warm up the modulator and check the picture and audio
3.Set up the channels you want if the factory settings are not what you want
