Softel FTTH Mini Node Passive Optical Satellite Receiver
With many years experience in manufacturing 1550nm External Fiber Optic Transmitter, CWDM 1310nm/1550, WDM, we believe that our technical expertise is matched by our production capability, providing our customers with the highest quality products and a first-rate service. Our company has formed the purchasing and marketing channels and marketing network radiating at home and abroad. Our main focus is always on customer satisfaction, and we follow sound business policies and transparent transactions. We also conduct a variety of quality checks of our products before being delivered to our clients. We hope to contribute to the revitalization of the national industry and the great rejuvenation of our nation.
Passive Optical Receiver

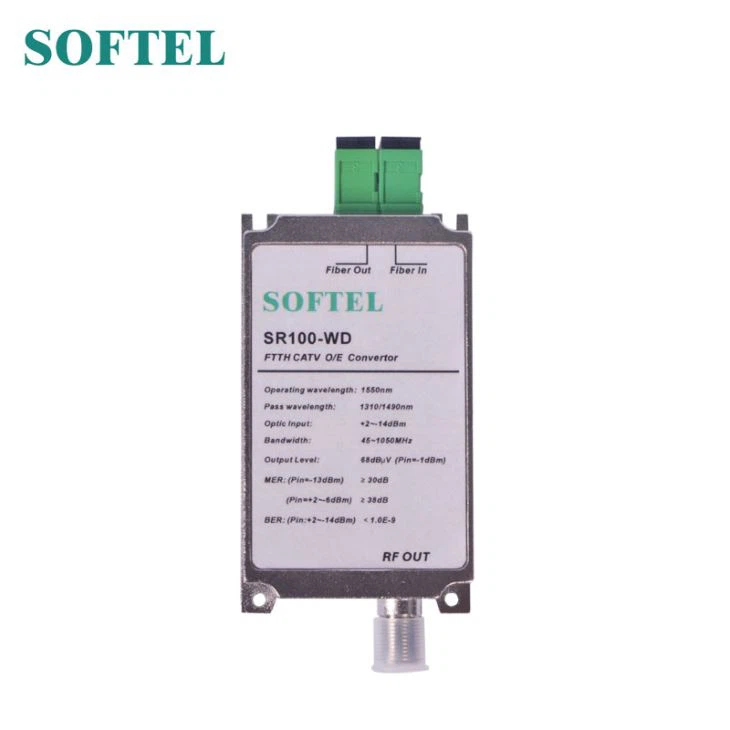

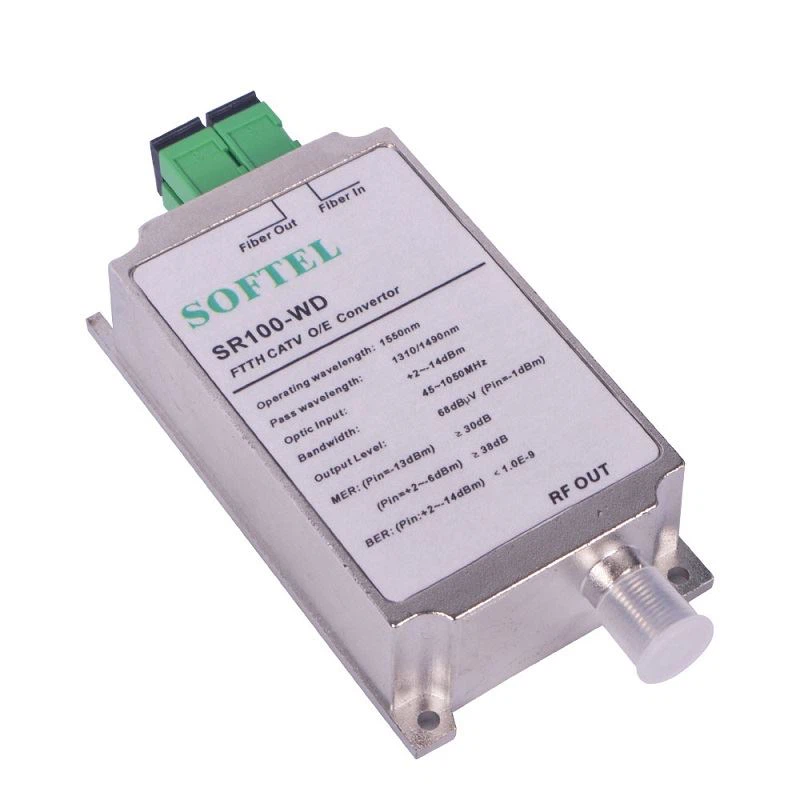

SR100-WD is a passive optical receiver. With built-in CWDM, it is suitable for single-fiber triple wavelength system. Its CATV operating Wavelength is 1550nm. The pass wavelength is 1310/1490nm. It can conveniently connect the ONU of EPON, GPON.
Characteristics
1.No Power required for this node.
2.The Work bandwidth is 45~1050MHz.
3. The Output Level is 68dBμV (Pin=-1dBm).
Parameters of Passive Optical Receiver
Item | Unit | Technical Parameter | Supplement | |
CATV work wavelength | nm | 1540~1563 | ||
Pass wavelength | nm | 1310~1490 | ||
Channel Isolation | dB | ≥40 | 1550nm&1490nm | |
Response | A/W | ≥0.85 | 1310nm | |
≥0.9 | 1550nm | |||
Receiving Power | dBm | +2~-14 | ||
Optical return loss | dB | ≥55 | ||
Optical fiber connector | SC/APC | |||
RF parameter | Work bandwidth | MHz | 45~1050 | |
Rated Output Level | dBμV | ≥ 68 | Digital TV (pin=-1dBm) | |
Output Return Loss | dB | ≥ 14 | 47~862MHz | |
Output Impedance | Ω | 75 | ||
Output port number | 1 | |||
RF tie-in | F-female | |||
General feature | Operating Temperature | ºC | -20~+55 | |
Storage temp | ºC | -40~+85 |
Manufacture & Quality Test
Been cooperating with the manufacturers of HFC broadband optic transmission equipment over the years, we have more than 60 staff, in which there’re adequate senior technicians and have great and technical R&D capability in this field. With more than 1,000 square meters of production assembling lines, we are capable of providing more high-standard products in less time.
It is worth mentioning thatour strict 3-layer QC procedure ensures each product is under the material check before production, stability and performance test after production, and the packing verification before delivery.
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is most convenient for you.
2. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
The excellence of products and the pursuit of perfect service are the key to the success of our company. We will continue to strive to create the best performance Softel FTTH Mini Node Passive Optical Satellite Receiver to our customers all over the world. While developing and growing, we continue to innovate and surpass, and lead other brands in the industry to develop together. Our company takes realistic innovation, unity and striving as the core development concept, aiming at 'providing customers with high cost-effective products and services', and has gathered a large number of talents with broad vision, excellent technology, courage to innovate and full of vitality.
