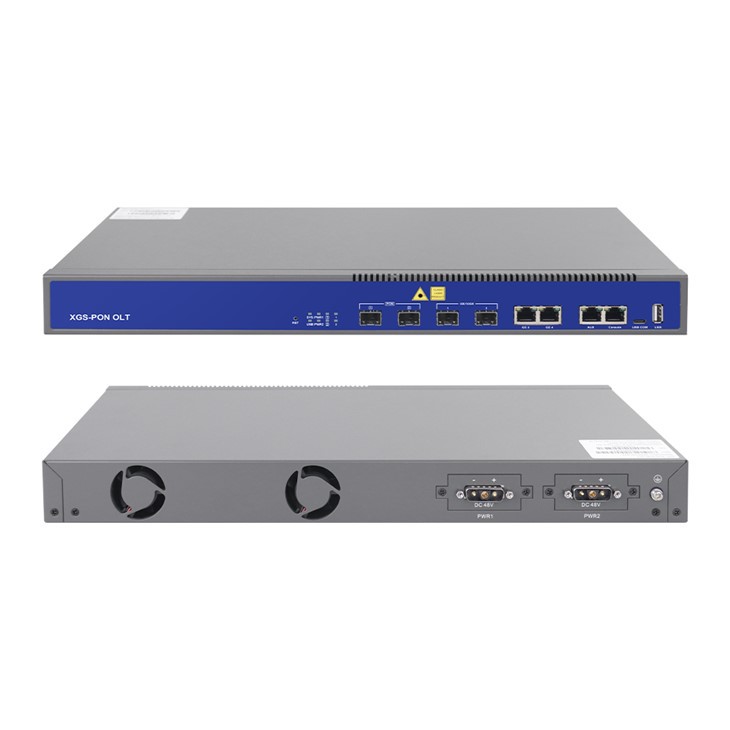

XGSPON OLT 2 Ports

XG/XGS-PON Optional 10Gbps High-speed 19 inch standard box Easy Install Easy O&M

Send Inquiry

Product Introduction

2 PON Ports XG/XGS-PON OLT

XGSPON-02V is a box-type XG/XGS-PON OLT device with 2 downlink 10G PON ports and 2 10GE/GE uplink Ethernet optical

ports. It is 1U high, 19-inch standard design, integrating advanced XG/XGS-PON technology with a theoretical splitting ratio up

to 1:256 (recommended 1:128) and delivering speeds of up to 10Gbps. Suitable for small enterprises, shops, property leasing,

and other applications.

Hightlights:

XG/XGS-PON Optional
10Gbps High-speed
19 inch standard box
Easy Install Easy O&M

XGSPON-02V-1

Technical Specifications

Item		XGSPON-02V
Chassis	Rack	1U 19Inch Standard Box
Uplink Port	QTY	4
	RJ45(GE)	2
	SFP(GE)/SFP+( 10GE)	2
PON Port	QTY	2
	Physical Interface	SFP+ Slots
	Optical splitting ratio	1:256(Maximum), 1:128(Recommended)
Management Ports		1* 10/100/1000M out-band LAN port, 1CONSOLE port, 1USB2.0
Backplane Bandwidth (Gbps)		208
Port Forwarding Rate(Mpps)		124.992
PON Port Specification	Transmission Distance	20KM
	XG-PON port speed	Upstream 2.488Gbps, Downstream 9.953Gbps
	XGS-PON port speed	Upstream 9.953Gbps, Downstream 9.953Gbps
	Wavelength	XG-PON,XGS-PON: TX 1577nm, RX 1270nm
	Connector	SC/UPC
	Fiber Type	9/125 μm SMF
Management Mode		WEB , Telnet , CLI
