Micro ONU 2.5GE

Name: China Micro ONU 2.5GE Manufacturers, Suppliers - Factory Direct Wholesale - Softel
Brand: Softel
SKU: 274821510

XPON Dual Mode Automatically Access to EPON/GPON 2.5GbE LAN port Support USB power supply Compact size makes it easy to carry around

Send Inquiry

Product Introduction

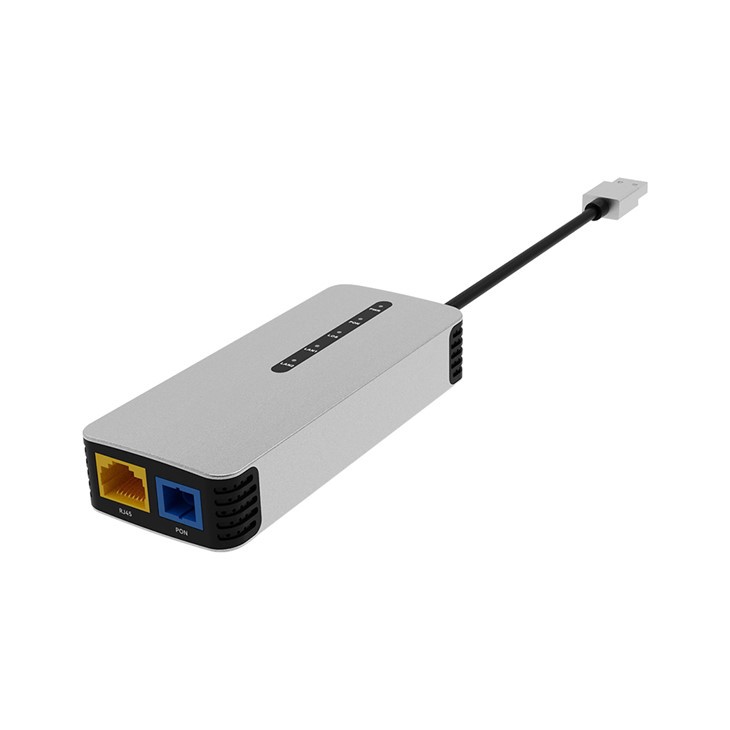

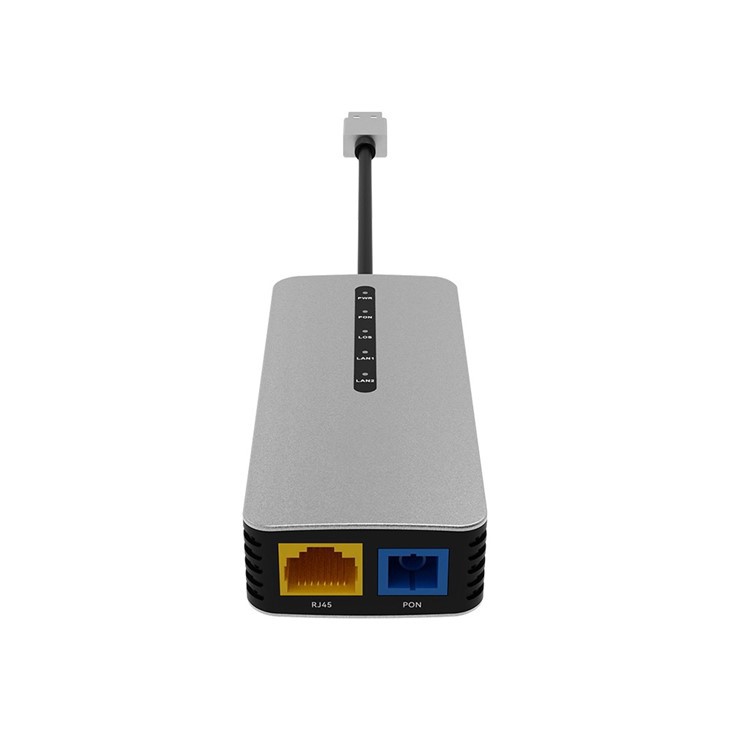

Micro ONU 2.5GE

ONT-M25GU

1*XPON+1*2.5GbE+1*Type-A(Default) or Type-C(Customizable) Portable ONU

ONT-M25GU (XPON 1*2.5GbE+1*Type-A(Default) or Type-C(Customizable) ONU) is a small portable access device designed for FTTD

(desktop) access and other needs. This ONU is based on a high-performance chip solution and has a 2.5GbE port, which can provide users

with a high-speed network experience and truly realize Gigabit to the desktop. There is a Type-A(Default) or Type-C(Customizable) port, which

can be used for both power supply and data transmission, eliminating the need for external power supply or optical composite cable power

supply, and is cost-effective, for terminals without RJ45 network interfaces, this interface can be directly connected without the need for

additional network port expansion docks, which is more convenient.

The main shell of this ONT is made of aluminum alloy and is integrated into one piece, which has high reliability. The two ends are made of

ABS material and have heat dissipation holes, so it can be used in environments with a wide temperature range.

Features: --------------------------------------

XPON Dual Mode Automatically Access to EPON/GPON

2.5GbE LAN port

Two-in-one port support power supply and Internet access

Wide Working Temp -10℃ +55℃

product-1392-507

Hardware Parameter

Dimension	110mm×45mm×20mm(L×W×H)
Net weight	0.1Kg
Operating condition	• Operating temp: -10 ~ +55℃ • Operating humidity: 5 ~ 95% (non-condensing)
Storing condition	• Storing temp: -40 ~ +70.C • Storing humidity: 5 ~ 95% (non-condensing)
Interfaces	12.5GbE+1Type-A(Default) or Type-C(Customizable)
Indicators	PWR, PON, LOS, WAN, LAN

Interface Parameter

PON interface	• 1 XPON port(EPON PX20+ & GPON Class B+) • SC single mode, SC/UPC connector • TX optical power: 0～+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or -8dBm(GPON) • Transmission distance: 20KM • Wavelength: TX 1310nm, RX1490nm
LAN interface	1*2.5GbE, Auto-negotiation RJ45 connectors
USB3.0 interface	1*Type-A(Default) or Type-C(Customizable) , powered and data transmission through this port

Function Feature

Internet connection	• Support Bridge mode
Alarm	• Support Dying Gasp • Support Port Loop Detect
LAN	• Support Port rate limiting • Support Loop detection • Support Flow control • Support Storm control
VLAN	• Support VLAN tag mode • Support VLAN transparent mode • Support VLAN trunk mode • Support VLAN hybrid mode
Multicast	• IGMPv1/v2/Snooping • Support multicast protocol VLAN and multicast data stripping • Support multicast translation function
QoS	• Support WRR,SP+WRR
O&M	• WEB/TELNET/SSH/OMCI • Support private OMCI protocol and Unified network management of SOFTEL OLT
Firewall	• Support IP address and port filtering function
Other	• Support log function

What are advantages of Micro ONU 2.5GE?

The FTTD ONT-M25GU is a portable optical network terminal (ONT) designed for desktop-class fibre access. It supports mainstream optical fibre access technologies such as EPON/GPON, and realises gigabit-level network transmission through a single optical fibre to meet the requirements of high bandwidth and low latency. A 2.5GbE Ethernet port provides ultra-gigabit wired connectivity for PCs, game consoles, and more, unleashing the full potential of fibre bandwidth. The default configuration is Type-A interface, which supports connecting storage devices such as USB flash drives and external hard disks. It can be customised as a Type-C interface, which is compatible with the fast charging and data transmission needs of modern notebooks/mobile phones, and improves the compatibility of peripherals. It is compact (the size of a credit card for similar devices) and is suitable for highly flexible scenarios such as mobile office and temporary residence.

Why is ONU 2.5GE so popular in the market?

The 2.5GE rate (2.5Gbps) is 2.5 times that of traditional Gigabit, and the cost is only 1/3 of that of 10G PIN, which accurately matches the FTTH upgrade in Europe, POL networks in North America, and the broadband needs of small and medium-sized enterprises in Asia Pacific, and is expected to increase the number of global FTTH users to 1.5 billion by 2027, with 2.5GE ONU accounting for more than 50%.
