1GE+1FE Wireless Router Support Mesh Connection
1GE+1FE Wireless Router Support Mesh Connection
1GE+1FE+WIFI5 SWR-2GF-MESH Wireless Router is high performance wireless connectivity for Small Office and Home(SOHO) deploymensts and support dual band concurrent operation at 2.4GHz and 5GHz with combined throughput of 1.2Gbps(300Mbps at 2.4GHz and 867Mbps at 5GHz). SWR-2GF-MESH support Wi-Fi EasyMesh that brings a standards-based approach to Wi-Fi networks that utilize multiple access points (APs), combining the benefits of easy to use, self-adapting Wi-Fi with greater flexibility in device choice that comes with interoperable Wi-Fi EasyMesh devices.

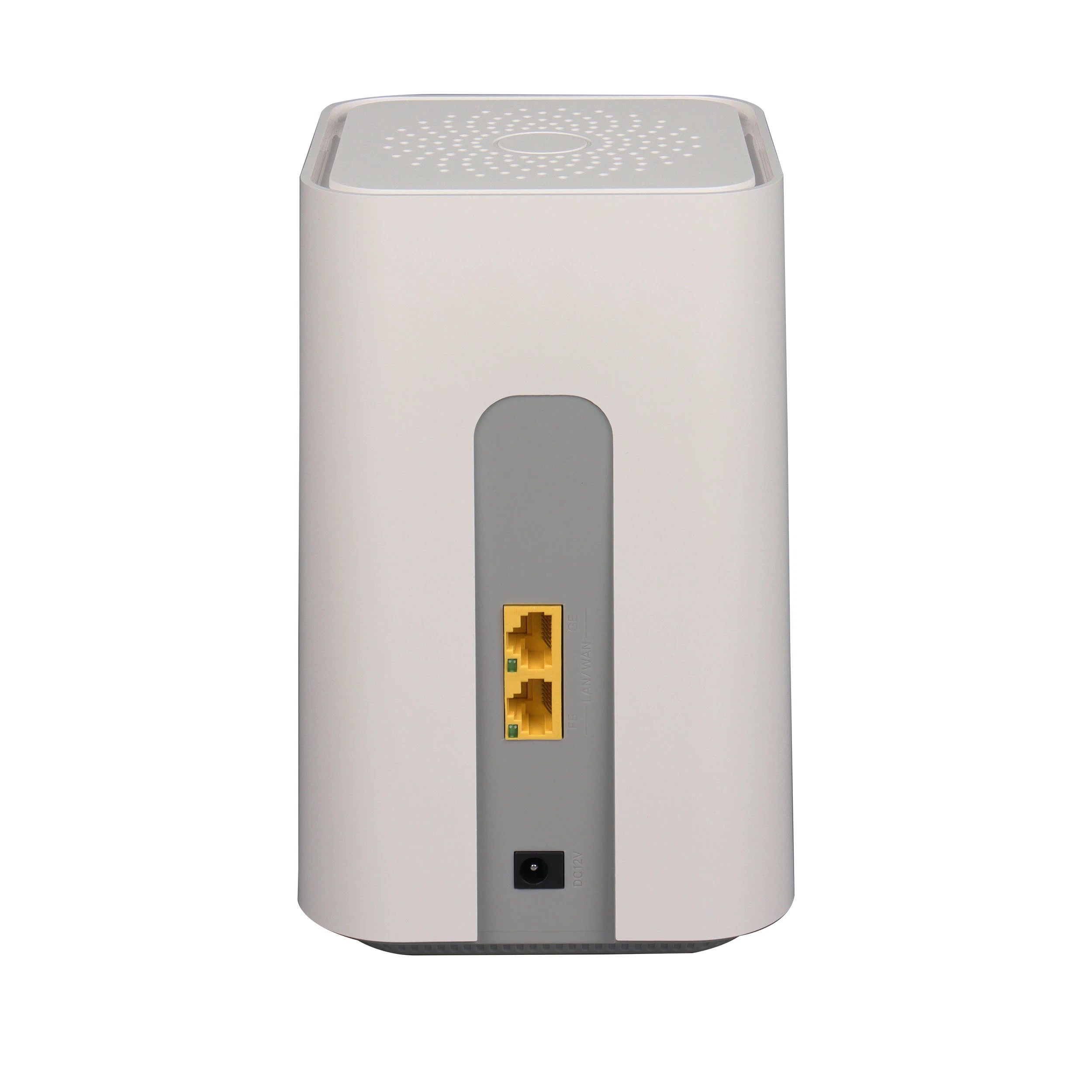

Picture of 1GE+1FE Wireless Router Support Mesh Connection
Key Features of 1GE+1FE Wireless Router Support Mesh Connection:
• EasyMesh protocol-Support wired and wireless Mesh connections
• WiFi5 Dual Band 1200Mbps
• IPv4/IPv6 Stack
Application Chart of 1GE+1FE Wireless Router Support Mesh Connection:
Specifications of 1GE+1FE Wireless Router Support Mesh Connection:
Hardware Parameter | |
| Dimension | 117mm×117mm×240mm(L×W×H) |
Net weight | 560g |
Operating condition | Operating temp: 0 ~ +55°C Operating humidity: 10 ~ 90% (non-condensed) |
Storing condition | Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensed) |
Power adapter | DC 12V,1A, external AC-DC power adaptor |
Power supply | ≤10W |
Interface | 1GE+1FE+WiFi5 |
Interface Parameter | |
LAN interface | • 1*10/100Mbps and 1*10/100/1000Mbps auto adaptive WAN/LAN Ethernet interface , RJ45 connectors |
WLAN interface | Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz WiFi: MIMO 2×2 For 2.4GHz,MIMO 2×2 For 5.0GHz, 4×5dBi external antenna, rate up to 1.166Gbps, Multiple SSID TX power: 11n--22dBm/11ac--24dBm |
WPS Button | Quickly pair two EasyMesh WIFI routers with the WPS button. |
Function Data | |
Management Mode | Web |
Data Service | • Full speed non-blocking switching • 2K MAC address table • Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc • Support auto polarity detection of Ethernet ports (AUTO MDIX) • Integrated IEEE802.1p QoS with four level priority queues • Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy • Support bridge, router and bridge/router mixed mode |
Wireless | • Support Wireless AP mode • Support 802.11 b/g/n/ac • Support Multiple SSID • Authentication : WEP/WAP- PSK(TKIP)/WAP2-PSK(AES) • Modulation type: DSSS, CCK and OFDM • Encoding scheme: BPSK, QPSK, 16QAM and 64QAM • Support EasyMesh protocol |
WAN/LAN | PPPoE,DHCP Client,Static IP |
Company information
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
