AH-802E Agile Modulator
AH-802E agile modulator
Product Description

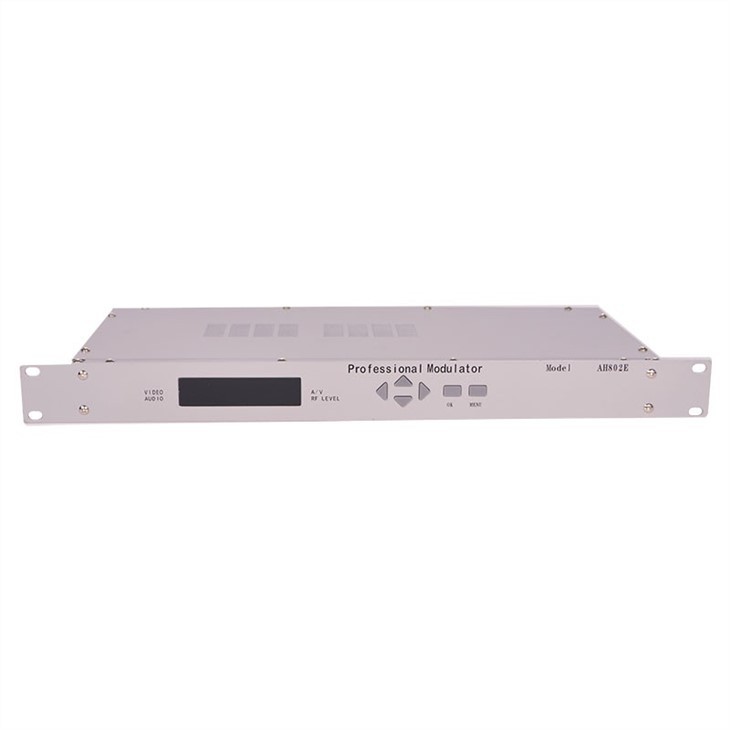

AH-802E Agile Modulator has 4RU rack mounted chassis with Built-in active combiner eliminates unnecessary cabling and potential connection problem and ensures high output level .All modulators are perfect factory set to desired channel and proper offset.
Detail Images
Key Features
45～870MHz Frequency Range
5 Digits LED Display
I2C Bus-Mastering
GaAs Component used
Front Panel Control Board to Adjust Frequency,Modulation Level, A/V Ratio,Volume, RF Signal Level Through the LCD Display by Turning Keys
High C/N, Reliable And Easy to Operate
Specification
| RF | |
| Frequency Range | 49.75 MHz to 847.25 MHz |
| Frequency Stability | 5 KHz |
| Output Level | 110 dB μV max |
| Level Adjustment range | ≥20 dB (132 Levels Adjustable) |
| Output Impedance | 75Ω |
| Spurious Output | -60 dB |
| Output Return Loss | 14 dB |
| Adjacent channel | 70 dB (min 65dB) |
| C/N in band | 68 dBmin 65dB) |
| Out-of-Band | 60 dBmin 62dB) |
| IF | |
| IF/Picture Output Frequency | 38.00 MHz |
| IF/Picture Output Level | 85 dB μV |
| Aural IF Frequency | 31.5 MHz |
| A/V Carrier Ratio | -10 to -20 dB(10 Levels adjustable) |
| Video | |
| Standard Video Input Leve | 1.0V p-p |
| Video Input Impedance | 75Ω |
| Video S/N | 50 dB |
| Video Response | 1.5dB |
| Differential Gain | 2.5% |
| Differential Phase | 2.5° |
| Chrominance Luminance Delay | 40nS |
| Video clamping | 25dB |
| Video Modulation Level | 87.5% |
| Modulation Level | 87.5% (132 adjustable levels) |
| Audio | |
| Input Level Range | +5 to +25dBmV |
| Input Impedance | >10 KΩ |
| Frequency Response | 1.5 dB |
| Audio S/N | 52 dB |
| Audio Distortion | 0.4% |
| Audio Frequency | 6.50 MHz ±500 Hz |
| Maximal Audio Frequency Deviation | 50KHz |
| Pre-emphasis | 50μs |
| Audio Modulation Deviation | 132 Level Adjustable |
| General | |
| Power | 220V.AC/50 Hz |
| Dimension | 19"(W)×12.6"(D)×1.75"(H) |
| Operation Temperature | -10+40 |
| Weight | About 3.5KG |
