Hdmi Encoder IPTV Encoder
hdmi encoder IPTV encoder
Product Display

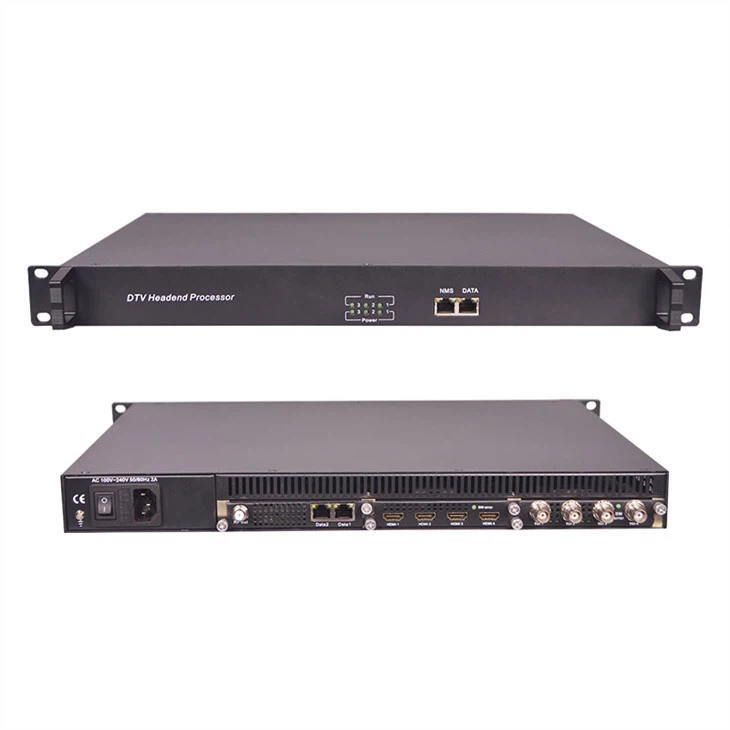

SHP200 is SOFTEL’s new generation of HEVC/H.265 & MPEG 4 AVC/H.264 encoder which is developed based on SHP200 platform. It supports up to 3 H.265/H.264 encoding modules with 4 HDMI interfaces on each module. With B frame (IBBP) GOP structure and advanced compressing algorithm, this device enhances picture quality and provides ultra low bitrate to save 75% bandwidth compared with H.264/AVC and it supports up to 2160P 30Hz resolution.
It also has 1 data port (1000M/100M) for IP output (1 MPTS and max 4 SPTS per module) over UDP/RTP/RTSP protocol and 1 Network Management port to manage the 3 modules individually through 3 different IP addresses.
In conclusion, its high performance and cost-effective design make this device widely used in CATV digital head-end, business application, IPTV/OTT system, etc.
Specification
| Input | 12×HDMI input (1.4), HDCP 1.4 | ||
| Video Encoding | Encoding Format | HEVC /H.265, MPEG 4 AVC/H.264 | |
| Resolution | HDMI-VersionⅠ | 3840×2160_30P, 3840×2160_29.97P | |
| (Encoding 2 CHs per module for H.265, and encoding | |||
| 1 CH for H.264 ) | |||
| 1920×1080_60P,1920×1080_59.94P,1920×1080_50P, | |||
| (Encoding 4 CHs per module for H.265, and encoding | |||
| 2 CHs for H.264) | |||
| 1280×720_60P, 1280×720_59.94P, 1280×720_50P | |||
| (Encoding 4 CHs per module for H.264 and H.265) | |||
| HDMI-VersionⅡ | 1920×1080_60P,1920×1080_59.94P,1920×1080_50P, | ||
| (Encoding 4 CHs per module for H.265, and encoding | |||
| 2 CHs for H.264) | |||
| 1280×720_60P, 1280×720_59.94P, 1280×720_50P | |||
| (Encoding 4 CHs per module for H.264 and H.265) | |||
| Input: | |||
| 1920×1080_60i,1920×1080_59.94i,1920×1080_50i | |||
| Output: | |||
| 1920×1080_60P,1920×1080_59.94P,1920×1080_50P | |||
| (Encoding 4 CHs per module for H.265, and encoding | |||
| 2 CHs for H.264) | |||
| Chroma | 4:02:00 | ||
| Bitrate | 0.5Mbps~20Mbps (each channel) | ||
| Rate Control | CBR/VBR | ||
| GOP Structure | IBBP, IPPP | ||
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | ||
| Audio Encoding | Encoding Format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough | |
| Sampling rate | 48KHz | ||
| 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC) | |||
| Bit-rate (each channel) | 24 Kbps~128 Kbps (HE-AAC) | ||
| 18 Kbps~56 Kbps (HE-AAC V2) | |||
| Audio Gain | 0~255 | ||
| 1 MPTS and maximum 4 SPTS (per module) output over UDP/RTP/RTSP, 1000M/100M Base-T Ethernet interface (unicast/ multicast); IPV4, IPV6 output | |||
| Stream output | IP null packet filter | ||
| System | Web based management | ||
| Chinese-English control interface | |||
| Ethernet software upgrade | |||
| Miscellaneous | Dimension (W× L× H) | 482mm×328mm×44mm | |
| Approx weight | 5kg | ||
| Temperature | 0~45℃(work), -20~80℃（Storage） | ||
| Power | AC 100V-220V±10%, 50/60Hz | ||
