Modularized IPTV Server System

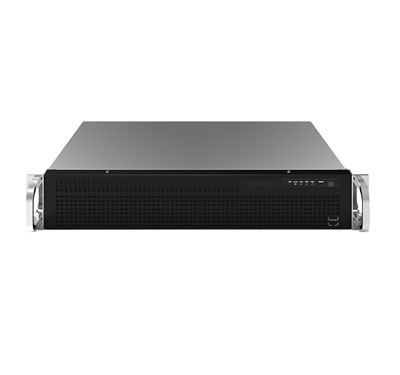

Softel NEP100-A Modularized IPTV Server System
Product Description
NEP100-A is a flexibly modularized 1U (or 3U) device with the features of Encoder/Receiver, IP Gateway and IPTV Server for the protocol-conversion application and IPTV-system application. It supports max 3 (or 6) pluggable streamer cards embedded, such as encoder card and tuner card to receive the HDMI signals and tuner signals etc. It can also convert the input IP streams from the embedded modules and Ethernet ports over SRT, HTTP,UDP, RTP, RTSP, HLS protocol and TS files into the output IP streams over SRT, HTTP,UDP, RTP, RTSP, HLS and RTMP protocol. It is also integrated with SOFTEL IPTV management software and Streamer cards to make it ideal in an IPTV system, such as hotel, hospital and community.
Features of NEP100-A IP Streamer:
-
Encoder/Receiver, IP Gateway and IPTV Server in one device
2 separate Web GUI, one for Cards and Gateway, the other for IPTV Server
Support uploading TS files directly in Web GUI to broadcast your own channels
Support inter-cut feature of a live program, a TS file and a picture
Support IP anti-jitter feature for the external IP streams
Support downloading SOFTEL IPTV APK directly in the Web GUI
Multi-level password control for your system security
LCD/Key button for Network-Setting checking
Modularized design, max 3 (or 6) cards embedded, a flexible option as per the actual application
Parameter
|
Input |
IP inputs thru ETH 1&2, GE ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
For 1U model |
|
|
IP inputs thru ETH 1-4 GE ports & 6-7 SFP+ ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
For 3U model |
||
|
TS files uploading through Web management |
|||
|
Encoder card and Tuner card etc (Please refer to the detailed card spec below) |
|||
|
IP output |
IP outputs thru ETH0, GE port over SRT, HTTP (Unicast), UDP(SPTS, Multicast) , RTP, RTSP, HLS and RTMP (Program source should be H.264 and AAC encoding) |
||
|
System |
Channel switching time with SOFTEL' STB: HTTP (1-3s), HLS (0.4-0.7s) |
||
|
It is closely related with the program bitrate and protocol type etc for Max program numbers involved in protocol conversion, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec) |
|||
|
It is closely related with the program bitrate and protocol type etc for Max affordable terminal numbers in IPTV application of the STB/Android TV installed with SOFTEL IPTV APK, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec) |
|||
|
IPTV Features: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS,Adding scrolling caption, welcome words, pictures, advertisement, video, music etc (the features are only applicable to IP out application in the STB/Android TV installed with SOFTEL IPTV APK) |
|||
|
General |
Demission (WxLxH) |
482mm×464mm×44mm (1U model) 482mm×493mm×133mm (3U model) |
|
|
Management |
2 separate Web GUI (one for Cards and Gateway, the other for IPTV Server) through ETH3 (3U model through ETH5) |
||
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
||
|
Power Supply |
AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
||
