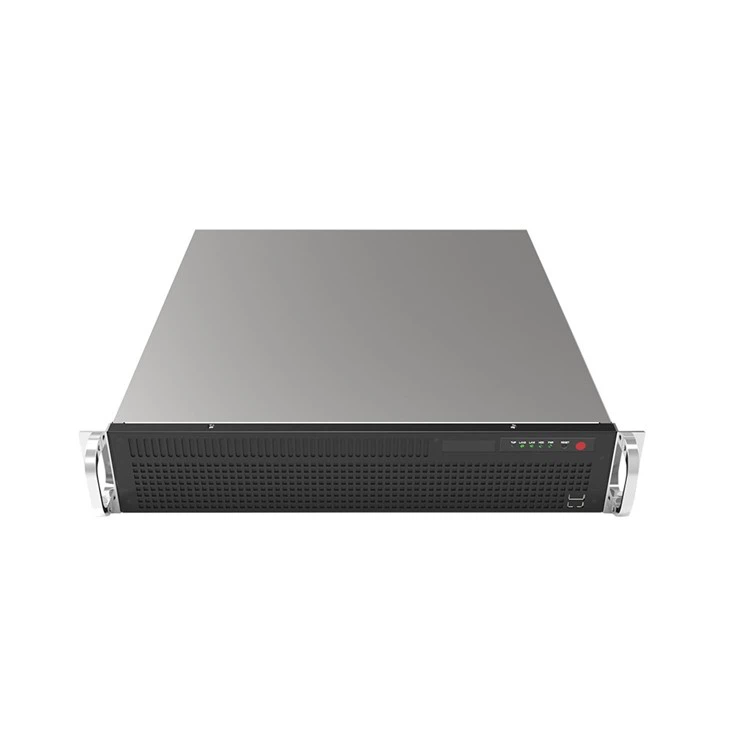

Softel SFT3308M IP Gateway IPTV Server
Product Description
SFT3308M integrated gateway is a front-end device for high-end commercial IPTV ordigital TV systems (supporting up to 1000 terminals) for prisons, troops, hospitals, gymnasiums, etc. lt is highly integrated, cost-effective, highly configurable (default 32G expandable to 128G memory), with 1~4 10Gb/s optical ports (expandable). it can support multiple 100/1000M input ports, support mainstream protocol encapsulation format conversion and streaming media distribution, and can be flexibly adapted to a variety of system applications. Support cloud service, live platform, a la carte services, shoppingmalls, information dissemination, watchback, video on-demand and other functions.
Features of SFT3308M IP Gateway IPTV Server:
- Support user management software (advertising, subtitle publishing)
- Support teminal online software upgrade
Support could service
Support programme PSl/Sl infommation editing
Support hotel management system/RCU docking/ built-in RCUsystem management
Support UDP, RTP, RTSP, HTTP, DASH, RTMP, HLS outputprotocols
Support the mainstream protocol encapsulation fommat conversion andstreaming media distribution, can be flexibly adapted to a varety of programme acquisition - Support set-top box Ul user-defined
Supports MPTS/SPTS analysis
Support for end-user management - Supports text, image and advert overlays
Support channel programme list management
Support for live services, playback, on-demandservices, video streaming processing
Built-in IPPBX Phone Management System
Parameter
| Physical parameter |
Model | SFT3308M |
| Motherboard | SOFTEL | |
| Number of network ports | 8 | |
| NIC | 8*Intel i210 for 1Gbe BASE-T | |
| 10G NIC | 1 | |
| CPU | SOFTEL | |
| RAM | Default 32G(customisable up to 128G)DDR4(288-pin)ECC memory support | |
| MSATA | 64G | |
| Hard drive | 3.5inch optional | |
| Sizes | 484(W)*478(D)*88.6(H)mm | |
| Working temperature,humidity | -10℃-45℃,40%-70% | |
| Storage temperature,humidity | -40℃-70℃,40%-95% | |
| Power supply voltage | 90~264VAC | |
| Maximum current | 8500mA | |
| Input parameter | Input port | 10G NIC |
| Input format | IP signal | |
| Output parameter | Output protocol | Support UDP,RTP,RTSP,HTTP,DASH,RTMP,HLS |
| Output port | 10G NIC | |
| Output format | IP signal |
