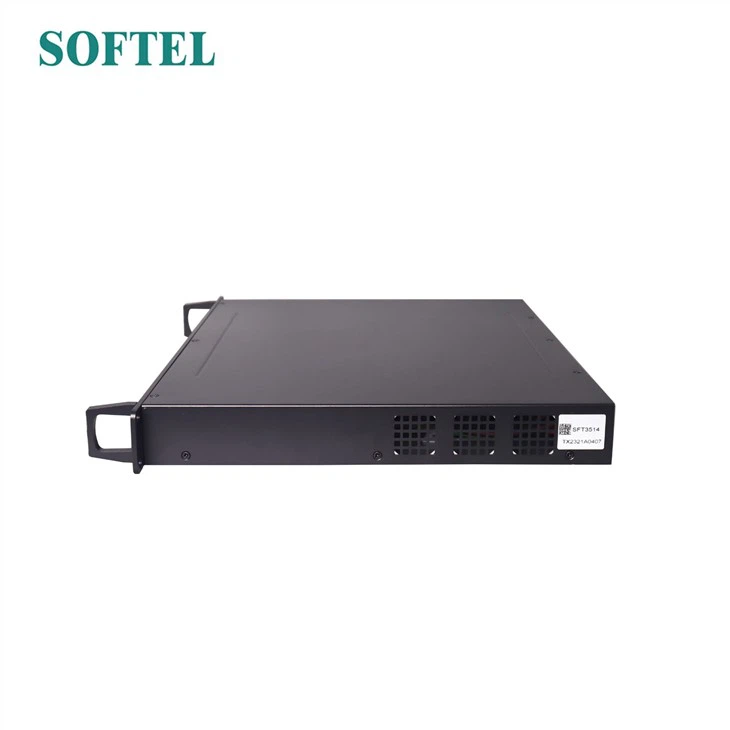

Digital TV Scrambler
Digital TV Scrambler
This Multiplexer Scrambler is our latest multiplexing scrambling device. It has 4 bi-direction ASI and 3 bi-direction IP ports supporting up to 4 ASI and 128 IP input, after scrambling, it outputs 4 MPTS and max 4 ASI.
It has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. In conclusion, its high integration and cost effective design make this Digital TV Scrambler widely used in the CATV Broadcasting system.
Characteristic
ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually)
IP in/out: 128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports
Support scramble with up to 4 simulcrypt CAs
Up to 512 PIDs remapping per output channel
Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing
Huge buffer memory for saving the overflowing code stream
Alarming function
Web-based NMS management
Parameters of Digital TV Scrambler
Input / Output | 4 bi-direction ASI ports: max 4 ASI input/output, BNC 75 3 bi-direction Data ports (RJ45): 128 IP input over UDP/RTP 4 IP (MPTS) output over UDP/RTP/RTSP 100/1000Mbps self-adaption | |
| Input Packet format: 204/188 self-adaption | ||
| ASI: Max output bit-rate: 200Mbps (Each channel) | ||
Mux | Max PIDs | 512 per channel |
Functions | PID re-mapping | |
| PCR accurate adjusting | ||
| Automatic generating PSI/SI table | ||
PID transparent | Any PID transparent and mapping achievable | |
Scrambling Parameters | Max simulcrypt CA | 4 |
Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 | |
Scramble Channel | 1 | |
Connection | Local/remote connection | |
System | Web-based management | |
| Language: English and Chinese | ||
| Ethernet software upgrade | ||
General | Dimensions | 482mm×300mm×44mm (WxLxH) |
Weight | 3.5kg | |
Temperature | 0~45℃(operation), -20~80℃(storage) | |
Power supply | AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz | |
Consumption | ≤40W | |
